5 Advanced Operations

E5@C-T Digital Temperature Controllers User’s Manual (H185)

5-15 Program-related Functions

5-15-9 Program end outputs

You can set an output to turn ON when a program ends (i.e., at the end of the last segment) and then

turn OFF after a specified time.

• You can assign this function to either an auxiliary output or a control output. If you do not assign this

function, no output is made and only p.end and the SP are displayed alternately.

• The program end output occurs at the end of the last segment of the last program execution if

program repetitions or a program link is set.

• The pulse width of the program end output is set using the Program End ON Time parameter. The

setting range for the Program End ON Time parameter is 0.0 to 10.0 s. The default is 0.0.

• If the Program End Output Time parameter is set to ON, the output will remain ON until the

Run/Reset parameter is changed to Run. If the Operation End Operation parameter is set to Reset

and the power is reset or you move from the Initial Setting Level to the Operation Level while the pro-

gram end output is ON, the program end output will turn OFF.

• The program end output is turned OFF if the Run/Reset parameter is changed to Run. If the Opera-

tion End Operation parameter is set to Fixed SP Control and the SP Mode is changed to Program SP

Mode after the end of program operation, the program end output will turn OFF.

• If the power supply is turned OFF, a software reset is performed with a operation command via

communications, or you change from a level where control is executed to a level where control is

stopped while the program end output is ON, the program end output will turn OFF.

• Display at the Program End

When the program ends, the process value will be displayed on the No. 1 display* and the set point

and p.end will be alternately displayed on the No. 2 display at 1-s intervals.

* The PV is displayed for the following settings: PV/SP, PV only, or PV/MV.

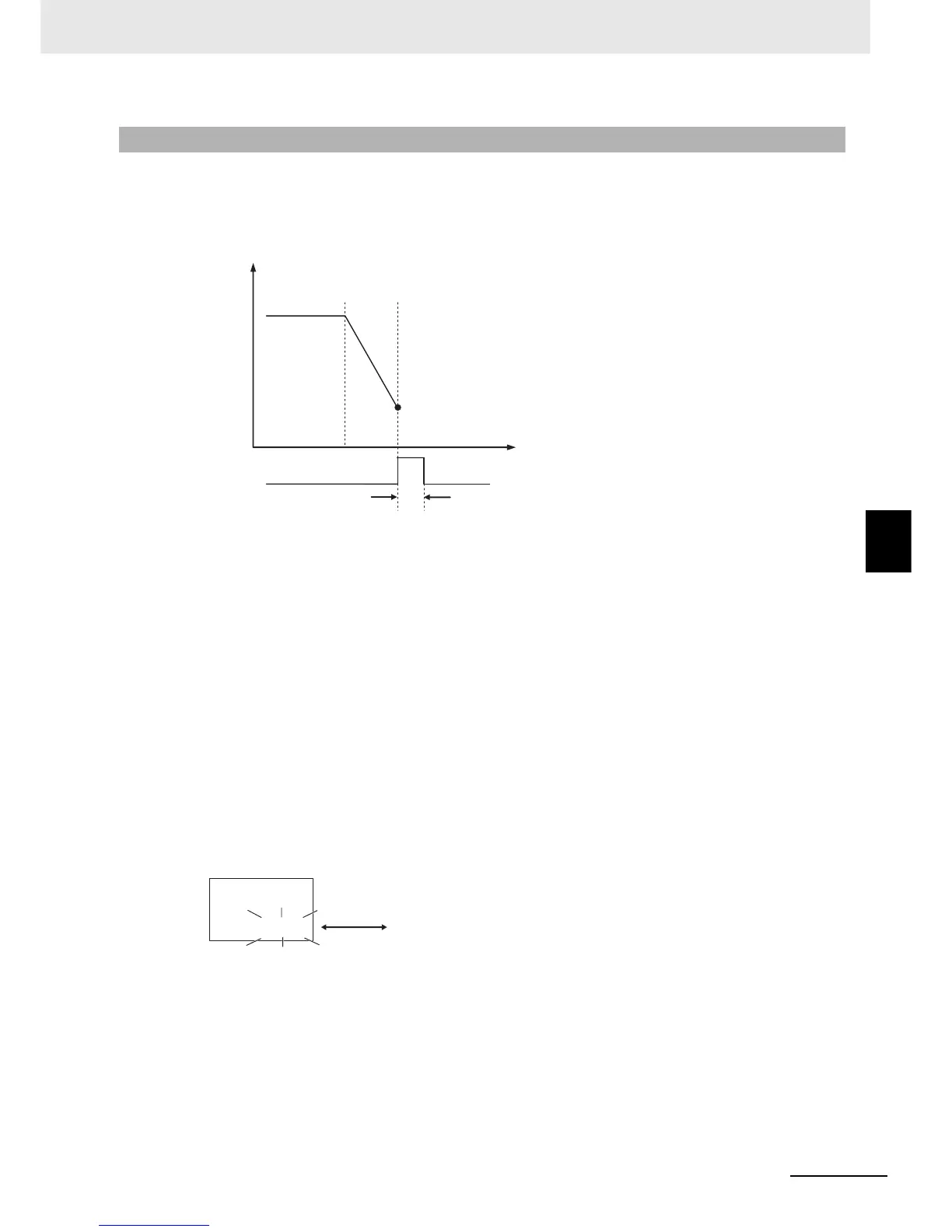

5-15-9 Program end outputs

Time

Program end

outputs

Last segment

Program End ON Time

120.0

Alternately

displayed.

p.end

120.1
