Omron E5*C Series User Manual

5 Advanced Operations
5 - 88
E5@C-T Digital Temperature Controllers User’s Manual (H185)

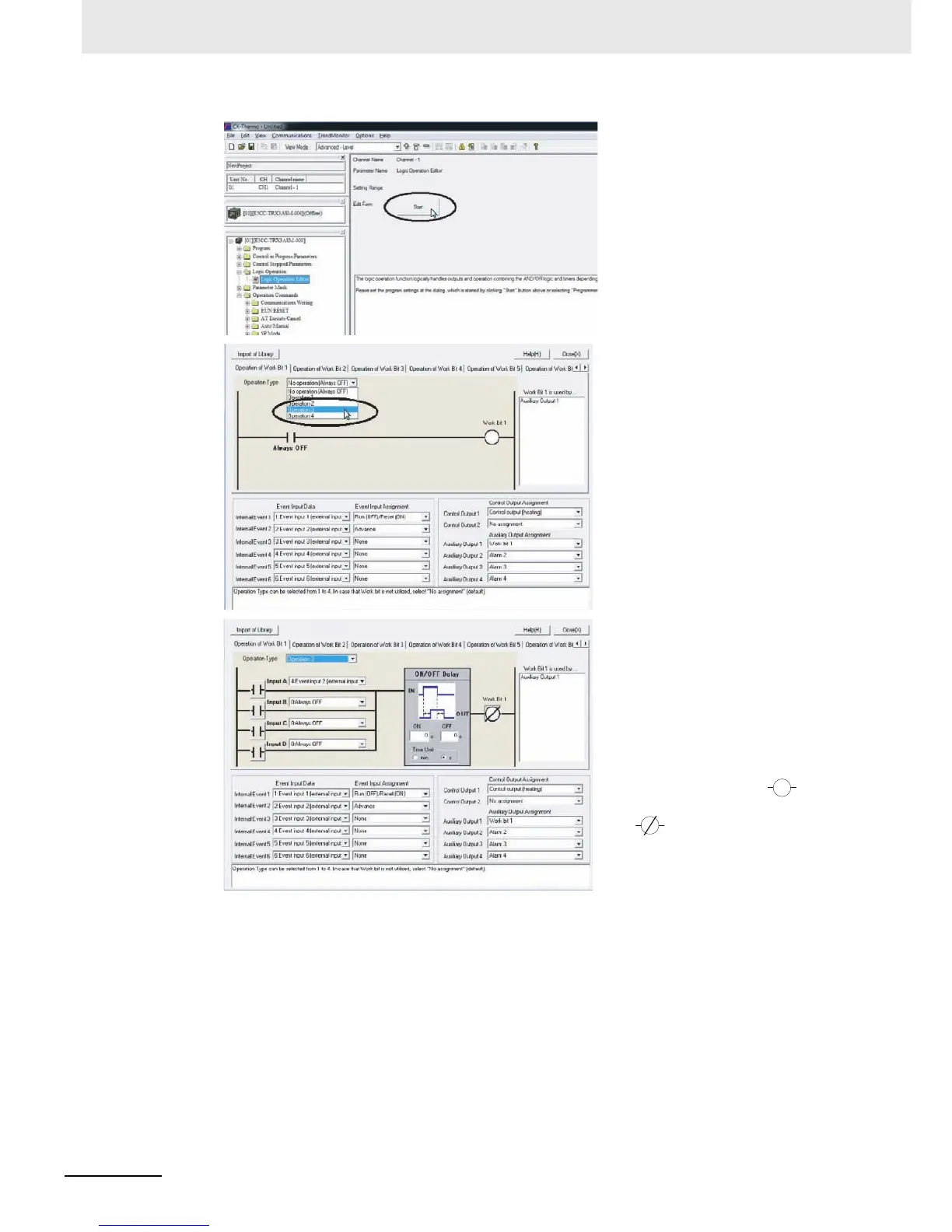

1. Select Logic Operation Editor
from the CX-Thermo tree, and
click the Start Button.
2. The Logic Operation Editor will
be displayed. Confirm that the
screen for work bit 1 is displayed,
and select Operation 3 from the
Operation Type Field.
3. Set the operation by selecting
one of the following:
Work bit 1 input assignment A =
4: Event input 2 (external input)
Work bit 1 input assignment B =
0: Always OFF
Work bit 1 input assignment C =
0: Always OFF
Work bit 1 input assignment D =
0: Always OFF
4. Invert work bit 1. Click
(Normally open) to change it to
(Normally closed).
5. Run/Reset is assigned to event
input 2. Set the event input data
for event input 2 to 2 (event input
2 (external input)), and set the
Event Input 2 Assignment
parameter to Run (OFF)/Reset
(ON) (Program Start).
6. Closing the Logic Operation
Editor Dialog Box
Click the Close Button.
This completes the procedure for
setting parameters using the
CX-Thermo. Transfer the
settings to the Controller to set
the Controller. Refer to
CX-Thermo help for the
procedure to transfer the
settings.
