5 Advanced Operations
E5@C-T Digital Temperature Controllers User’s Manual (H185)
5-22 Logic Operations
5
5-22-2 Using Logic Operations
Note: The internal event data can be changed from the default setting even if there is no event input
terminal (external input). By changing the default setting, the event input assignment
parameters will be displayed at the Controller display and can be set from the Controller.
(11) Changing the Event Input Assignment Function
Select the setting for the internal event assignment.
When a work bit is selected as event input data, Communications Write Enable/Disable
cannot be assigned to an event input.
(12) Changing Control Output and Auxiliary Output Settings
Control output and auxiliary output assignments can be changed. The items that can be
changed depend on the Controller model. For details, refer to 4-6 Setting Output
Specifications.
Assigning a work bit to either a control output or to an auxiliary output is also considered to
be the same as assigning an alarm. For example, if work bit 1 is set for the Auxiliary Output
1 Assignment parameter, then alarms 1 to 4 have been assigned.
(13) Displaying Parameter Guides
A description of the parameters can be displayed.
(14) Displaying the Work Bit Use Destinations
Display a list of destinations where the work bits are used.
Internal event 2 Same as for Event Input Data 1.
Internal event 3 Same as for Event Input Data 1.
Internal event 4 Same as for Event Input Data 1.
Internal event 5 Same as for Event Input Data 1.
Internal event 6 Same as for Event Input Data 1.

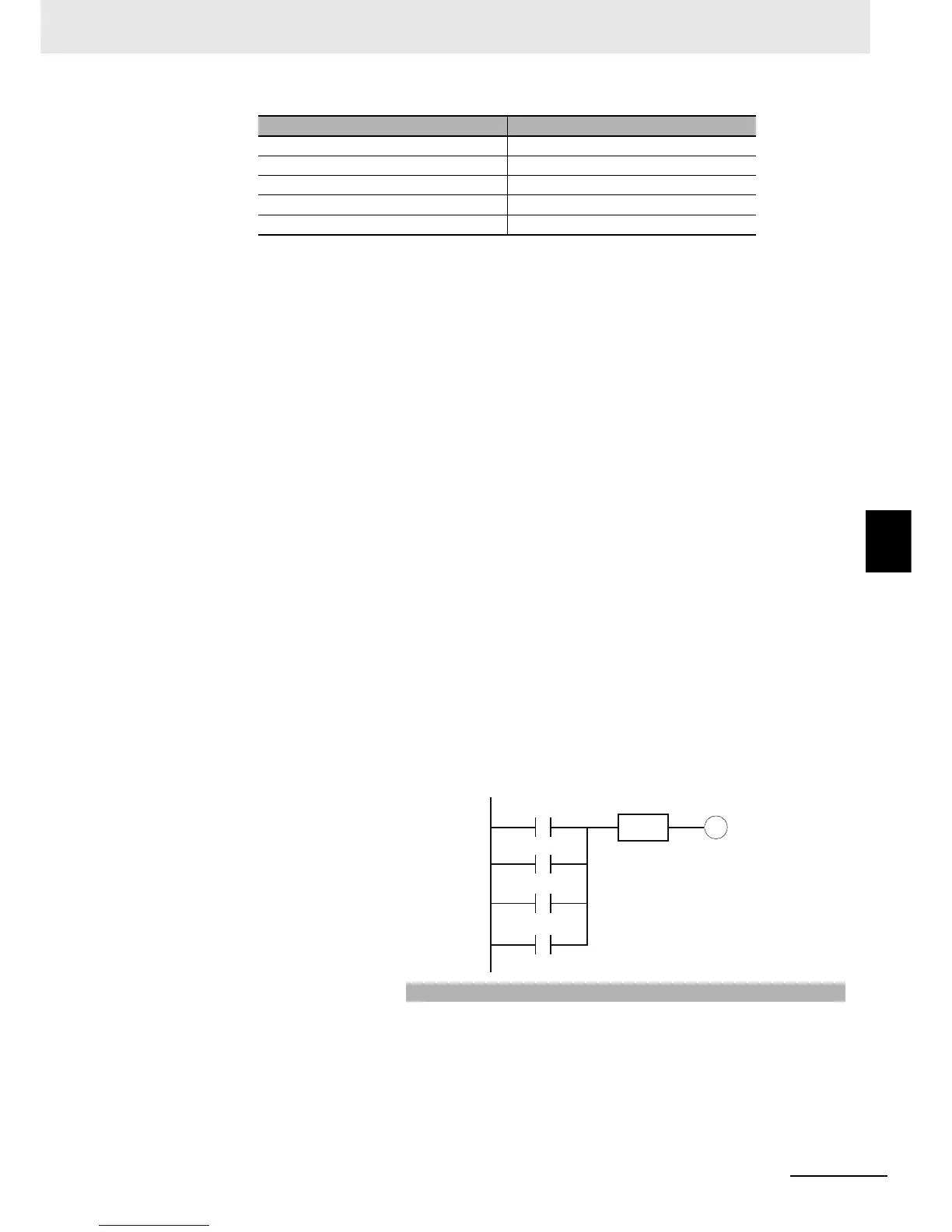

Operating Procedure
This procedure uses event input 2 to change Run/Reset status.
Event input 2 ON: RUN
Event input 2 OFF: Reset
Parameter name Setting range
Event 2
Work bit 1
Always OFF
Reverse
operation
Always OFF
Always OFF
To Next Page
