5 - 57
5 Advanced Operations
E5@C-T Digital Temperature Controllers User’s Manual (H185)
5-15 Program-related Functions
5

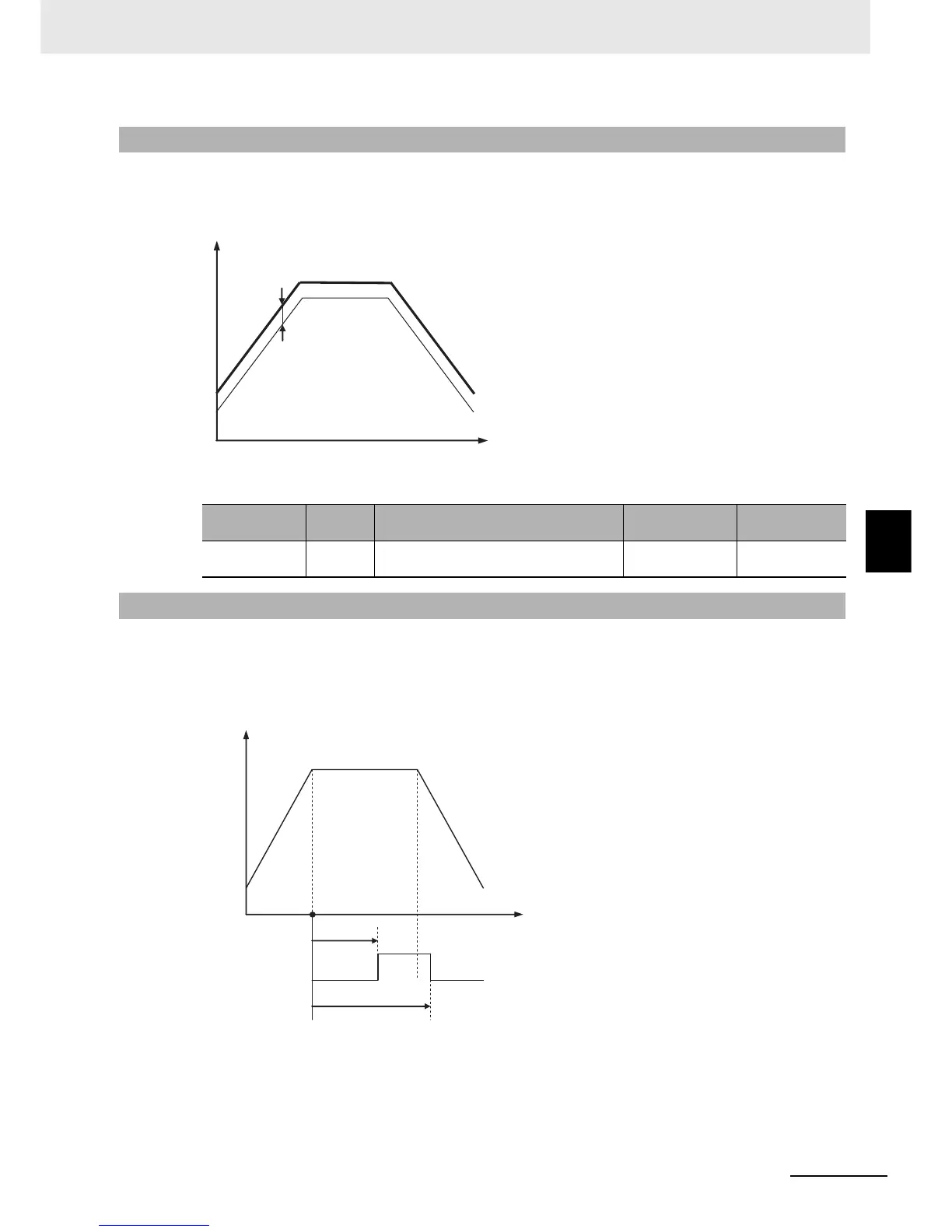

5-15-7 SP Shift
You can shift the program patterns vertically. The shift is applied to all of the programs.
• The program SP is shifted by the amount set in the Program SP Shift Value parameter (Adjustment
Level).
z Related Parameters
You can set an output that turns ON after the ON time has elapsed from the start of the specified seg-
ment and then turns OFF after the OFF time has elapsed from the start of the specified segment.
• You can assign this function to either an auxiliary output or a control output.
• You can set two different time signals for each program.
• Set the segments for which the time signals are to be started in the Time Signal 1 and 2 Set Segment
parameters (ts1s and ts2s) (Program Setting Level). The default is 0.
• Set the ON/OFF timing in the Time Signal 1 and 2 ON Time parameters (on1 and on2) and Time
Signal 1 and 2 OFF Time parameters (of1 and of2) (Program Setting Level). The default is 0.00.
• ON Conditions
• If the OFF time is shorter than the ON time, the output remains ON from when the ON time has
elapsed until the next OFF condition.
5-15-7 SP Shift
Parameter
name
Display Setting range Default Level
Program SP
Shift Value
psps -1999 to 9999 0
Adjustment
Level
5-15-8 Time Signals
Time
Program SP Shift Value
After shifting
Before shifting
SP
Time
Time signal output
ON time
OFF time
SP
