Omron E5*C Series User Manual

2 - 21
2 Preparations
E5@C-T Digital Temperature Controllers User’s Manual (H185)
2-2 Using the Terminals
2
2-2-4 Wiring
z Transfer Output
Models with an option number of 006 or 019 to 022 have a transfer output.
E5CC-T
E5EC-T/E5AC-T
z Potentiometer Input
You can use this input for a Position-proportional Model. The maximum opening can be measured to between
100 and 10KΩ.
Note: The E5CC-T does not have a potentiometer input.
Option number: 006
Option number: 019, 020, 021, or 022

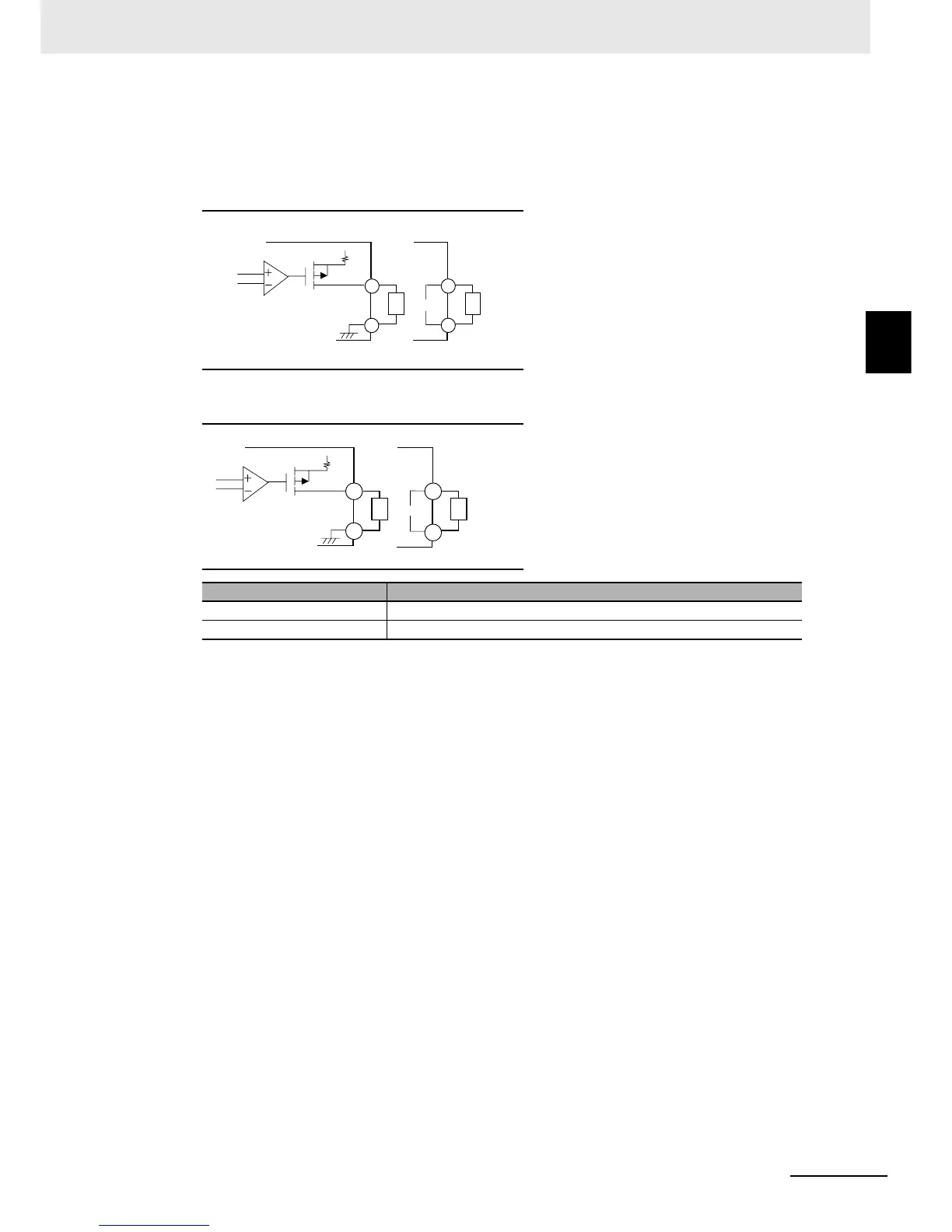

Output type Specification
Linear current output 4 to 20 mA DC, Load: 500 Ω max., Resolution: 10,000
Linear voltage output 1 to 5 VDC, Load: 1 kΩ min., Resolution: 10,000
+ v
+
−
L
Linear current Linear voltage
+
−
L
V
18
17
18
16
+v
+
−
L
32
Linear current
Linear voltage
33
+
−
L
31
33
V
