2 Preparations
2 - 26
E5@C-T Digital Temperature Controllers User’s Manual (H185)

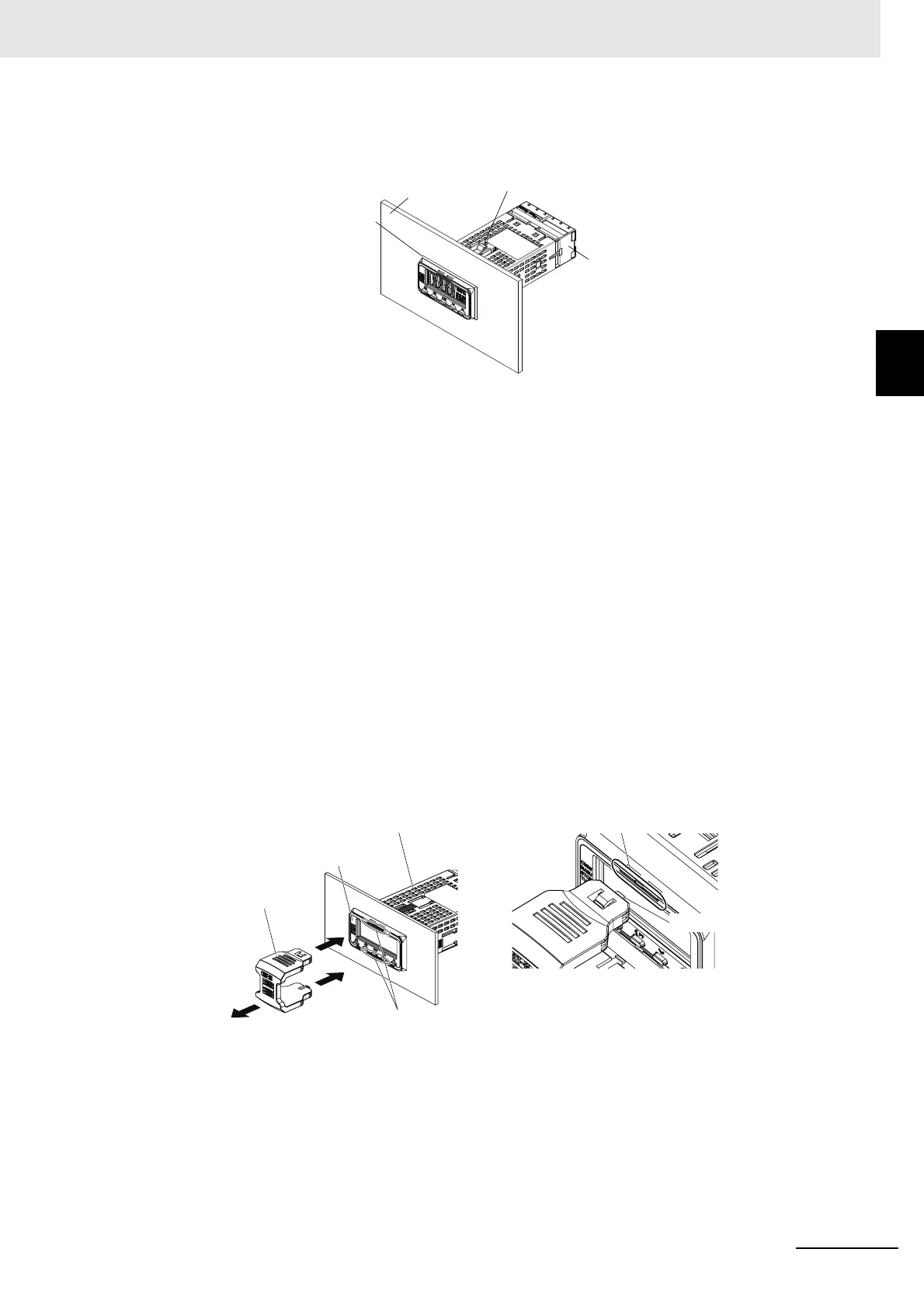

• Front-panel Port
Precautions for Correct Use
• Hold the connector when inserting or disconnecting the Cable.
• When connecting a connector, always make sure that it is oriented correctly. Do not force the
connector if it does not connect smoothly. Connectors may be damaged if they are connected
with excessive force.
• Do not connect cables to both the front-panel Setup Tool port and the top-panel Setup Tool
port at the same time. Damage or malfunction may occur.

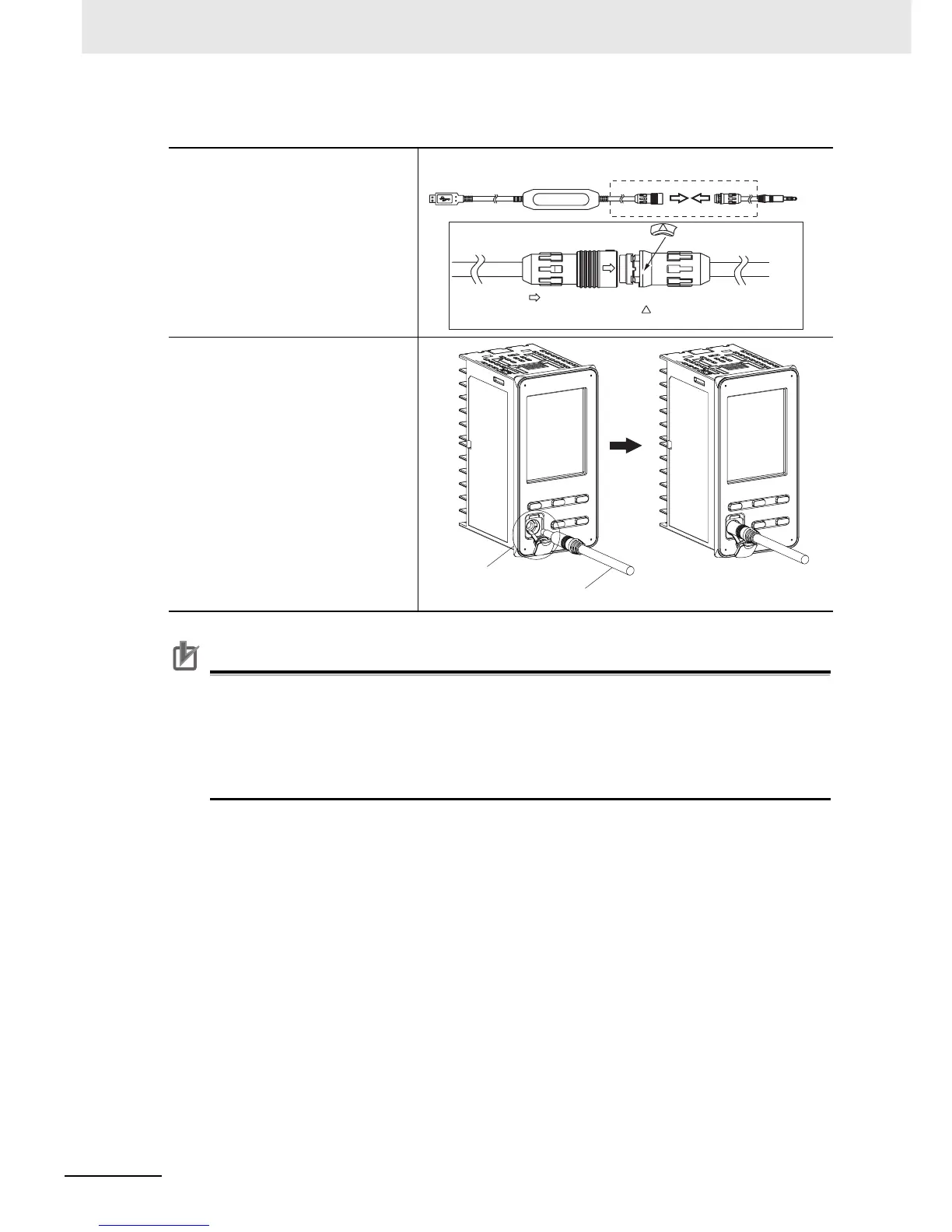

1 Connect the E58-CIFQ2
USB-Serial Conversion Cable
to the E58-CIFQ2-E
Conversion Cable.
2 Remove the Port Cover from
the front-panel Setup Tool
port, and then plug in the
Conversion Cable.
E58-CIFQ2
USB-Serial Conversion Cable
E58-CIFQ2-E
Conversion Cable
There is a triangle
on the connecting surface.
Align the arrow ( ) on the small connector on the E58-CIFQ2 USB-Serial
Conversion Cable with the triangle mark ( ) on the small connector on the
E58-CIFQ2-E Conversion Cable.
Port Cover
Conversion Cable
