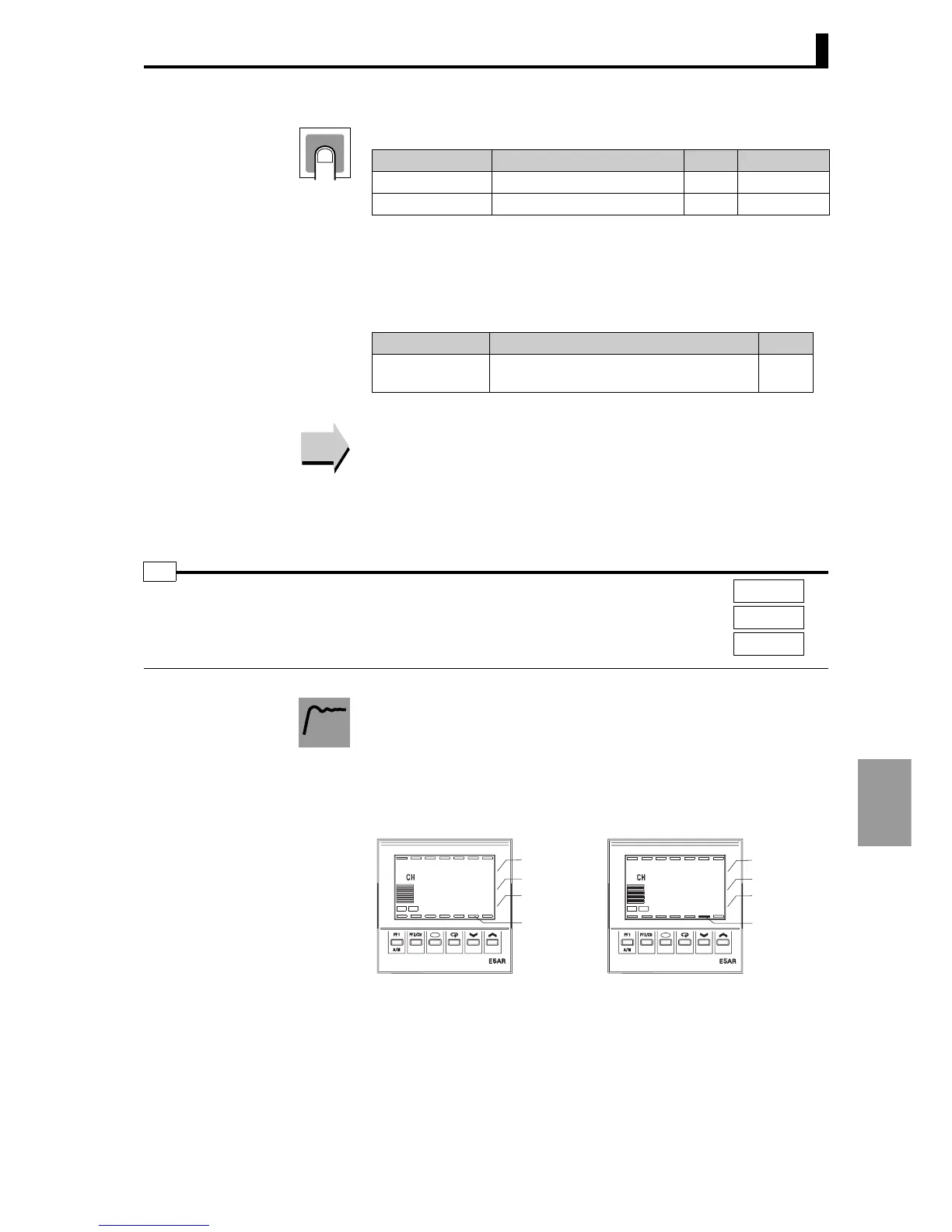

8.3 Operation level ( )
8-7
Setting data
• Standard type
*1 "Manual output method" (Expansion control setting level) selects
the MV that is used when manual mode is entered. The MV prior to
entering manual mode can be held, or the manual MV default value
can be used.
• Position proportional type
● Related setting data
"Auto/Manual" (Operation level) (P.8-11)
"PF1 setting", "PF2 setting" (Advanced function setting level) (P.8-68)
"Manual output method", "Manual MV default value" (Expansion
control setting level) (P.8-77)
• Display 1 shows the PV and Display 2 shows the SP. The SP can be
set.
• Either the local SP or the remote SP is shown depending on the
selected SP mode. In the case of remote SP, the value can only be
monitored.
• When using a bank in local SP mode, a link is created to the local SP
of the selected bank. For example, if Bank 3 is selected, the local SP
of Bank 3 appears in Display 2, and when the value is changed, the
value of "Bank 3 local SP" (Bank setting level) also changes.
Setting
Control method Setting range Units Default value
Standard -5.0 to 105.0 % *1
Heating/cooling -105.0 to 105.0 % *1
Control method Monitor range Units
Position
proportional
-10.0 to 110.0 %
Reference
Reference
PV/SP (Display 1)
PV/SP (Display 2)
PV/SP (Display 3)
CH
bnk.*
MV
bnk.*
Function
SUB1 SUB2 SUB3 SUB4
OUT1 OUT2 OUT3 OUT4 STOP RSP
"RSP" lights up
Present value
(PV)
Remote SP mode
Local SP mode
Monitor only
MV monitor
MANU
CMW
SUB1 SUB2 SUB3 SUB4
OUT1 OUT2
OUT3 OUT4 STOP RSP
"RSP" goes off
Present value
(PV)
SP
MV monitor
MANUCMW
8
3.8.8
9.5.0
1.5.6.0
8
3.8.8
9.5.0
1.5.6.0
