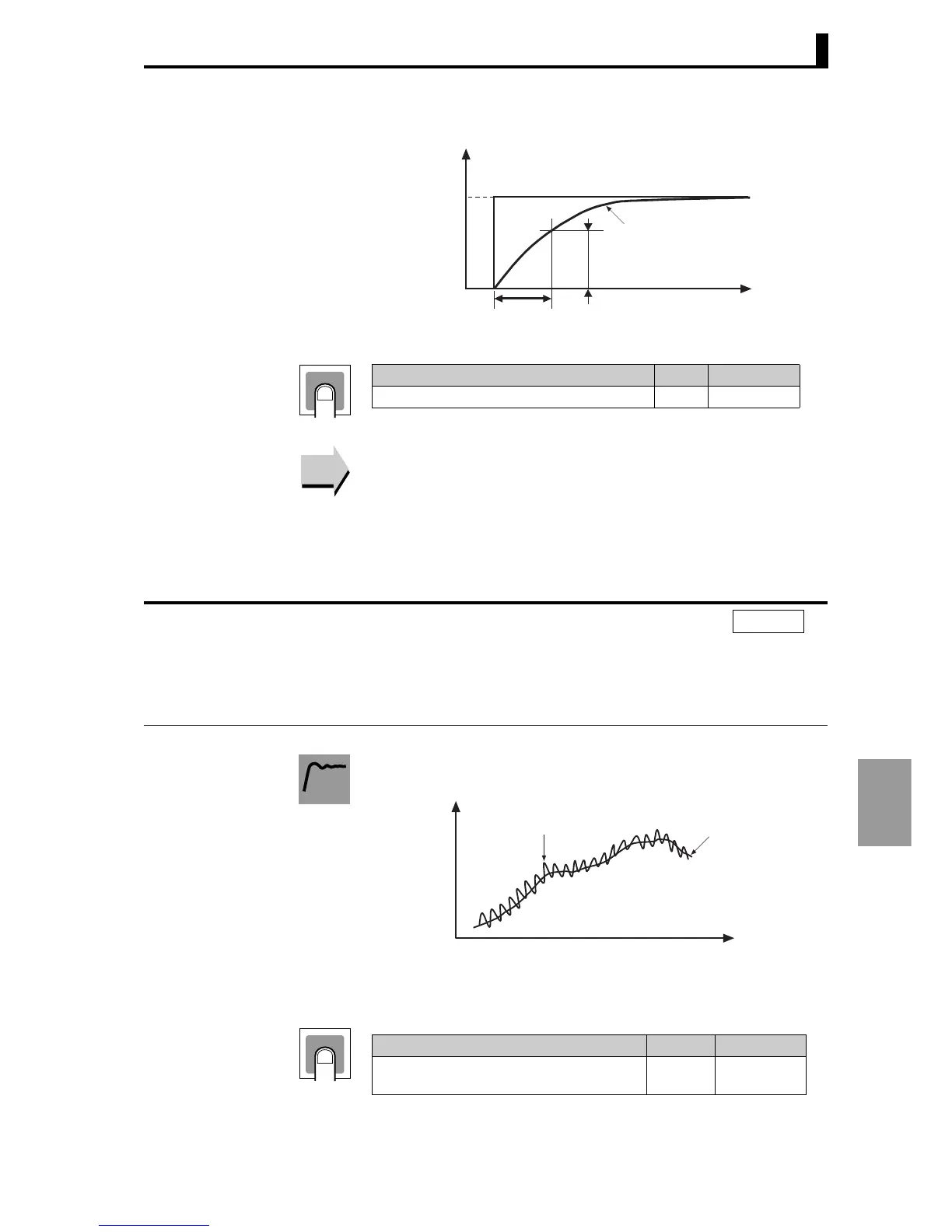

8.5 Adjustment 2 level (l.ad2)
8-23
Setting data
● Related information
"5.1 Input adjustment functions ■ First order lag operation" (P.5-5)
● Related setting data
"First order lag operation
∗ Enable" (Control initial setting 2 level)
(P.8-50)
• These settings set the move average count for move averaging for
each input. Data following the move average is shown below.
• This function is used to reduce changes in the input due to distur-
bances in the fluid surface when controlling fluid level.
PV before filter
PV after filter
A
0.63A
Time
constant
Time
Setting
Setting range Units
Default value
0.0 to 999.9 Sec 0.0
Reference
Reference
Move average 1 Move average count
Move average 2 Move average count
Move average 3 Move average count
Move average 4 Move average count
mavp.1
mavp.2
mavp.3
mavp.4 Move average ∗ function is enabled
l.ad2
Function
Input data
Operation result
Time
Setting
Setting range Units
Default value
1,2,4,8,16,32
Number
of times
1
