Section 8 Setting data
8-24
Setting data
● Related information
"5.1 Input adjustment functions ■ Move average" (P.5-5)
● Related setting data
"Move average
∗ Enable" (Control initial setting 2 level) (P.8-50)

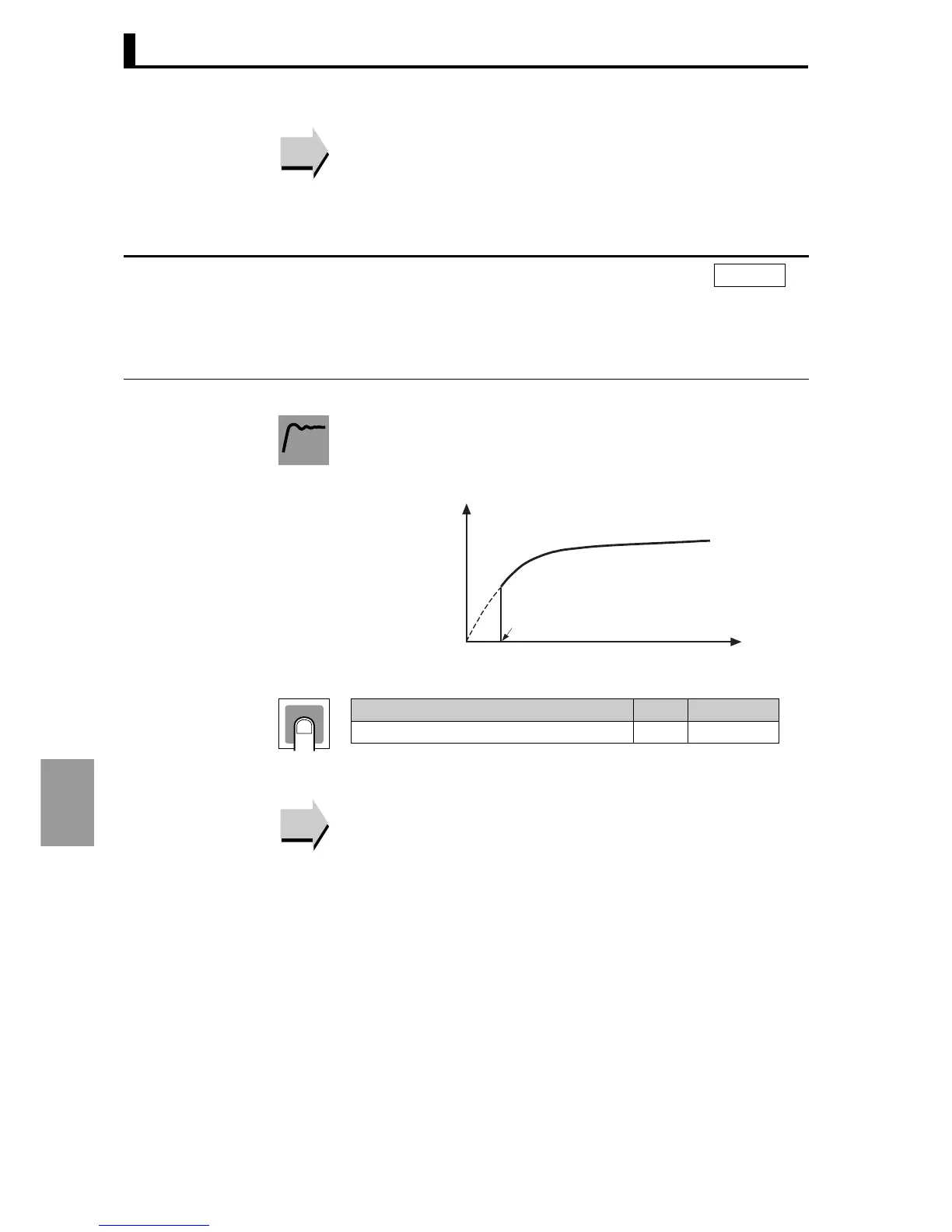

• These settings are used to set the low-cut point of each input. Data
following extraction of square root operations are shown below.
• This function is used for extraction of square root operations for fluid
sensors.
● Related information
"5.1 Input adjustment functions ■ Extraction of square root opera-
tions" (P.5-7)
● Related setting data
"Extraction of square root
∗ Enable" (Control initial setting 2 level)
(P.8-51)
Reference
Reference
Extraction of square root 1 Low-cut point
Extraction of square root 2 Low-cut point
Extraction of square root 3 Low-cut point
Extraction of square root 4 Low-cut point
sqrp.1
sqrp.2
sqrp.3
sqrp.4
Extraction of square root *
function is enabled
l.ad2
Function
Low-cut point
Argument 1 (input data)
Operation result
Setting
Setting range Units
Default value
0.000 to 9.999 − 0.000
Reference
Reference
