SECTION 2
Mounting the Controller
F210
Setup Manual
SECTION 2
Installation and Connections

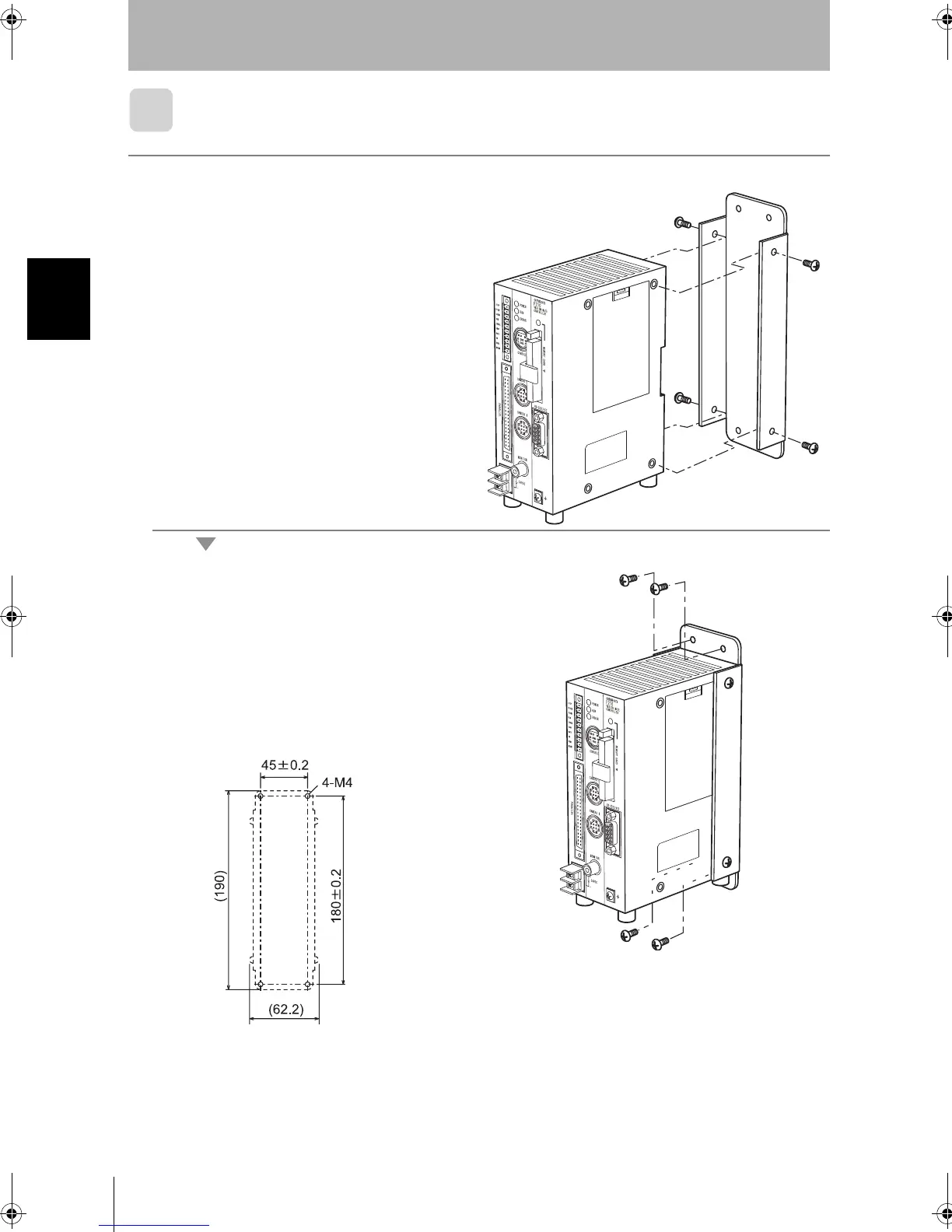

Rear Panel Mounting
1. Attach the bracket to the controller.
The bracket and screws (M3 x 6) are supplied with the
controller.
2. Have the four M4 screws ready and screw
them into the mount positions.
Mounting dimensions
(Unit: mm)
