Omron F210 - Wiring the Power Supply

30
SECTION 2
Power Supply and Ground
F210
Setup Manual
SECTION 2
Installation and Connections

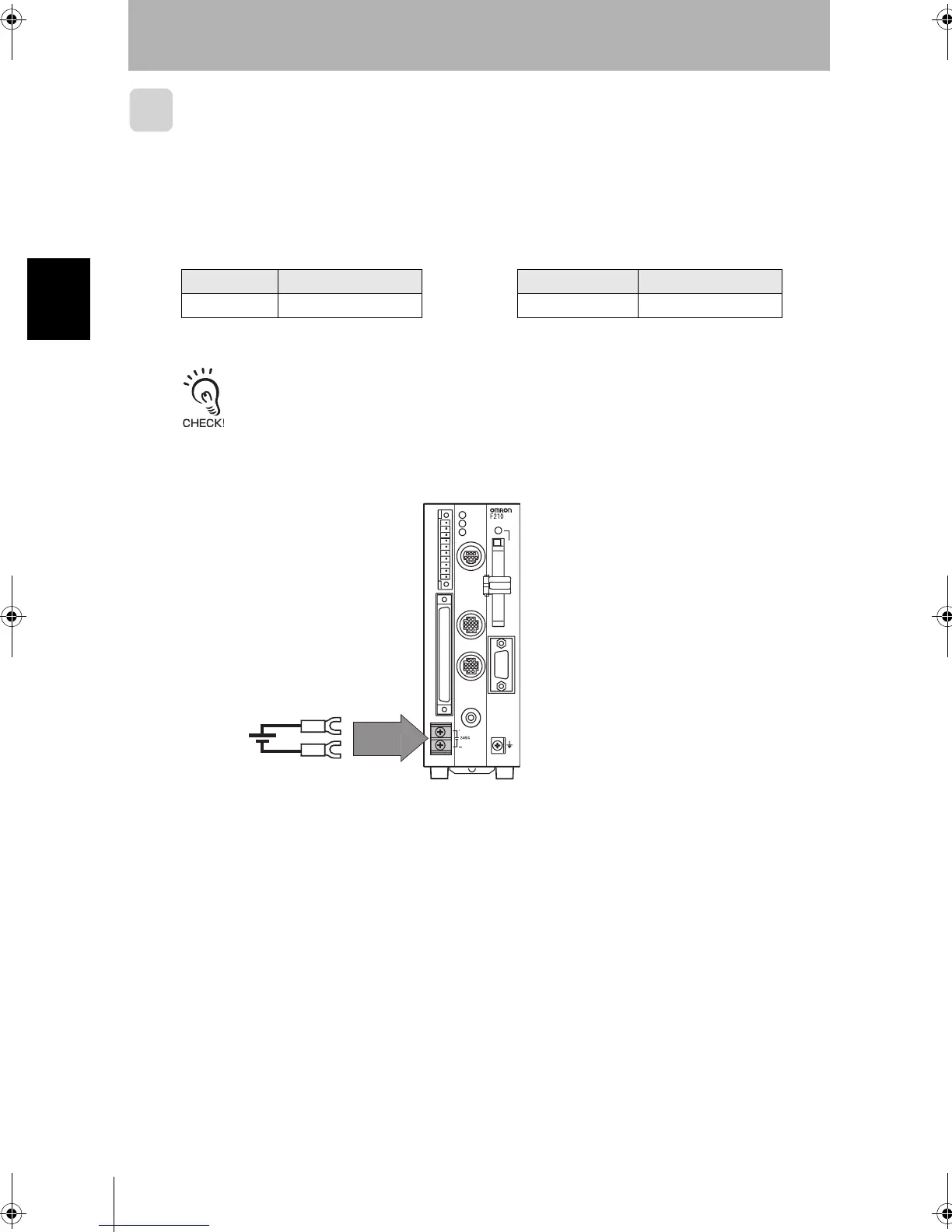

Wiring the Power Supply
Wire the Power Supply Unit independently of other devices.In particular, keep the power supply
wired separately from inductive loads.
Use a power supply that meets the following specifications.
Use a DC power supply with countermeasures against high voltages (safe extra low-voltage circuits on the
secondary side).
If the system must meet UL standards, use a UL class II power supply.
• Keep the power supply line as short as possible (less than 10 m).
• After wiring, replace the protective cover on the power supply terminals.
Condition Recommended Model
Output current Power supply voltage Manufacturer Item
1.6A min. 24 VDC +10%, -15% OMRON Corporation S82K-05024
24VDC
-
+
