23
F210
Setup Manual
SECTION 2
Installation and Connections
SECTION 2
Mounting the Controller
Mounting the Controller
There are four ways to mount the controller: DIN track mounting, Rear panel mounting, Side panel
mounting and Bottom panel mounting.

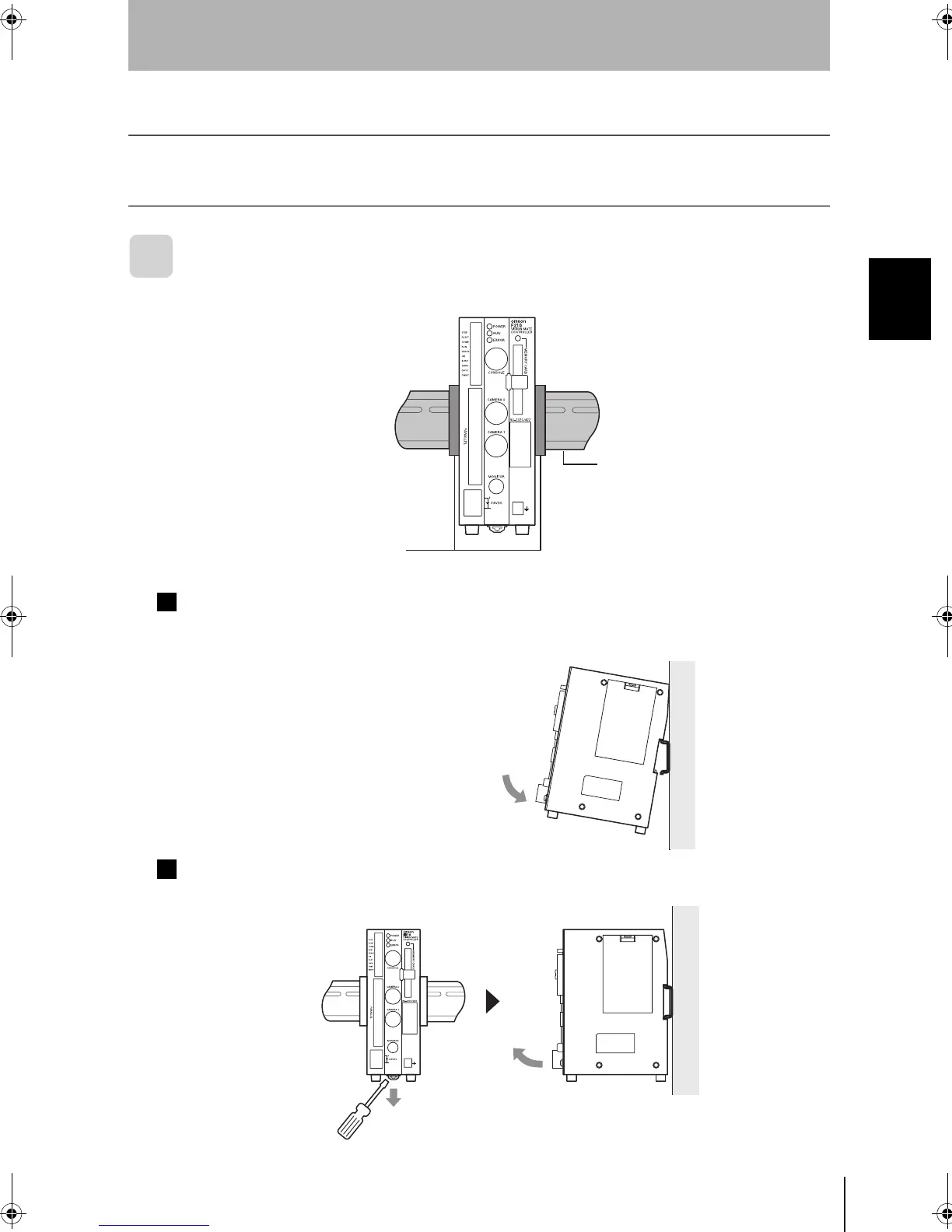

DIN Track Mounting
The controller can easily be mounted on or removed from a 35-mm width DIN track.
Mounting the Controller
Hook the controller into the DIN track as shown in the diagram and then press in at the bottom
until the controller locks into place.
Removing the Controller
Use a flat-bladed screwdriver to pull the hook down and then pull out the controller from the bottom.
DIN Track
Fastener
PFP-100N (1 m)
PFP-50N (50 cm)
PFP-100N2 (1 m)
PFP-M
F210setUP.book23ページ２００３年１月２８日 火曜日 午前１１時６分
