SECTION 5
Troubleshooting and Maintenance
SECTION 5
Specifications
Specifications
Controller
F210-C10/C15
Specification
Model F210-C10 F210-C15
Input/Output type NPN PNP
Power supply voltage 20.4 to 26.4 VDC
Current consumption Approx. 1.6 A max
Insulation resistance
Between the group of external DC terminals and the ground terminal: 20 MΩ min. (by 100 V DC
megger)
Dielectric strength
Between the group of external DC terminals and the ground terminal: 1000 V AC at 50/60 Hz
(when the built-in surge absorber is removed)
Leakage current 10mA max.
Noise resistance
2,000 V; pulse width: 50 ns; rise time: 5 ns (pulse)
Burst continuation time: 15 ms; Period: 300 ms
Vibration resistance
10 to 150 Hz; half-amplitude: 0.1 mm; maximum acceleration: 15 m/s
2
, 10 times for 8 minutes
each in 3 directions.
Shock resistance 150 m/s
2
, 3 times each in 6 directions
Ambient temperature Operating: 0 to 50°C (with no condensation) Storage: -25 to 65°C (with no condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Ambient environment No corrosive gases
Ground Class 1 (Ground resistance 100Ω max.)
Degree of protection IEC60529 IP20 (in-panel)
Case material ABS/PC
Weight Approx. 570g (Controller only)

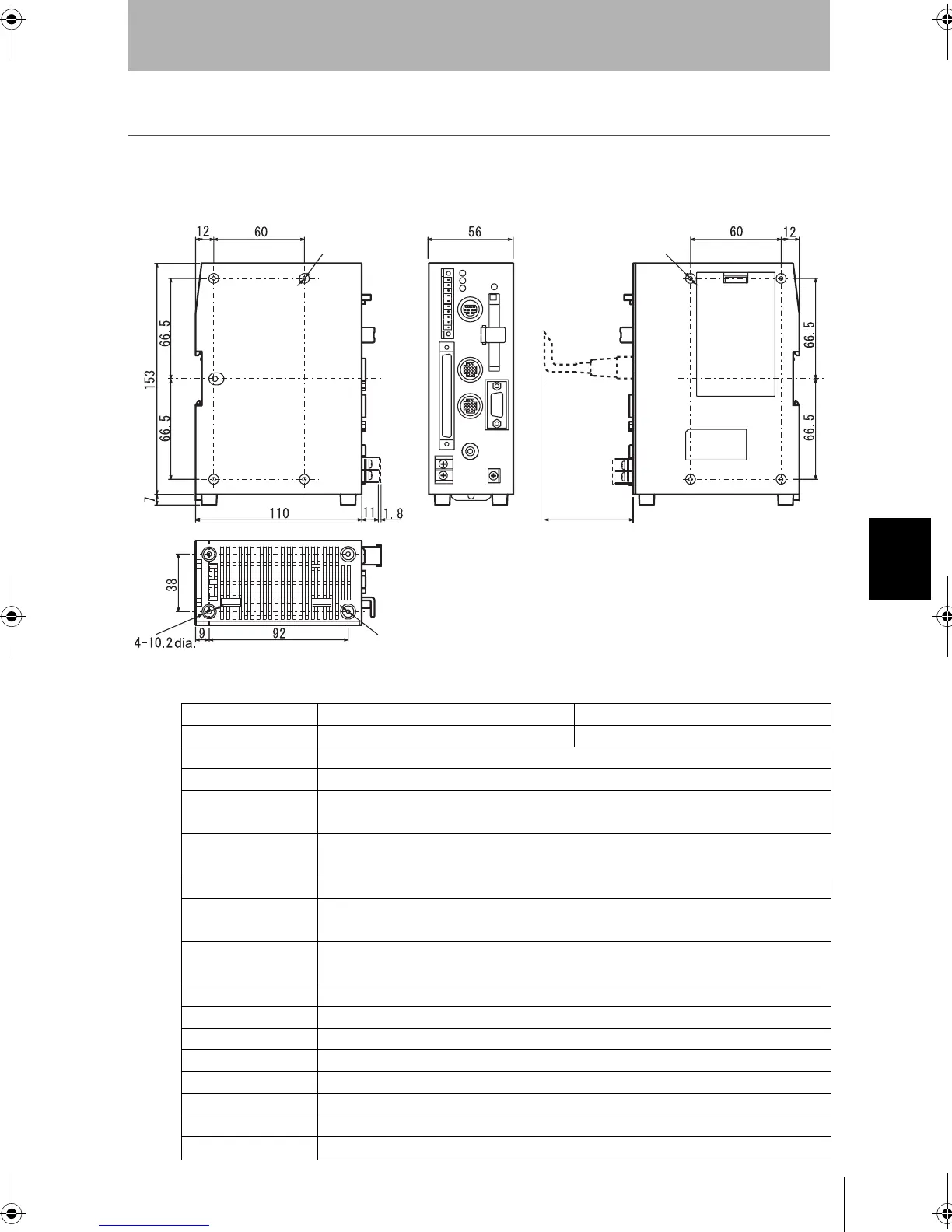

(Unit: mm)
115 min.
Four M3 taps,
Depth 4.8
Four M3 taps,
Depth 4.8
Four M3 taps,
Depth 6
