28
SECTION 2
Connecting Peripheral Devices
F210
Setup Manual
SECTION 2
Installation and Connections
Camera with Light
The Camera with Light is a special Camera that has a special lens and light source already
attached.The light source and lens are contained in a single unit, so installation is very
simple.Just mount the Camera at the proper distance from the measurement object and it is
ready to use.
Observe the following precautions when using a Camera with Light or Camera with Intelligent Lighting.
• The lens has a fixed focal point.The actual field of vision and focal point vary from lens to lens, so adjust the
distance to the measurement object after replacing the lens or camera.
• The camera mounting distance is an approximate value. Mount the Camera so that the distance to the
measurement object can be adjusted easily.
If the object size and field of vision are incompatible, use a standard CCTV lens and light source.
p.32

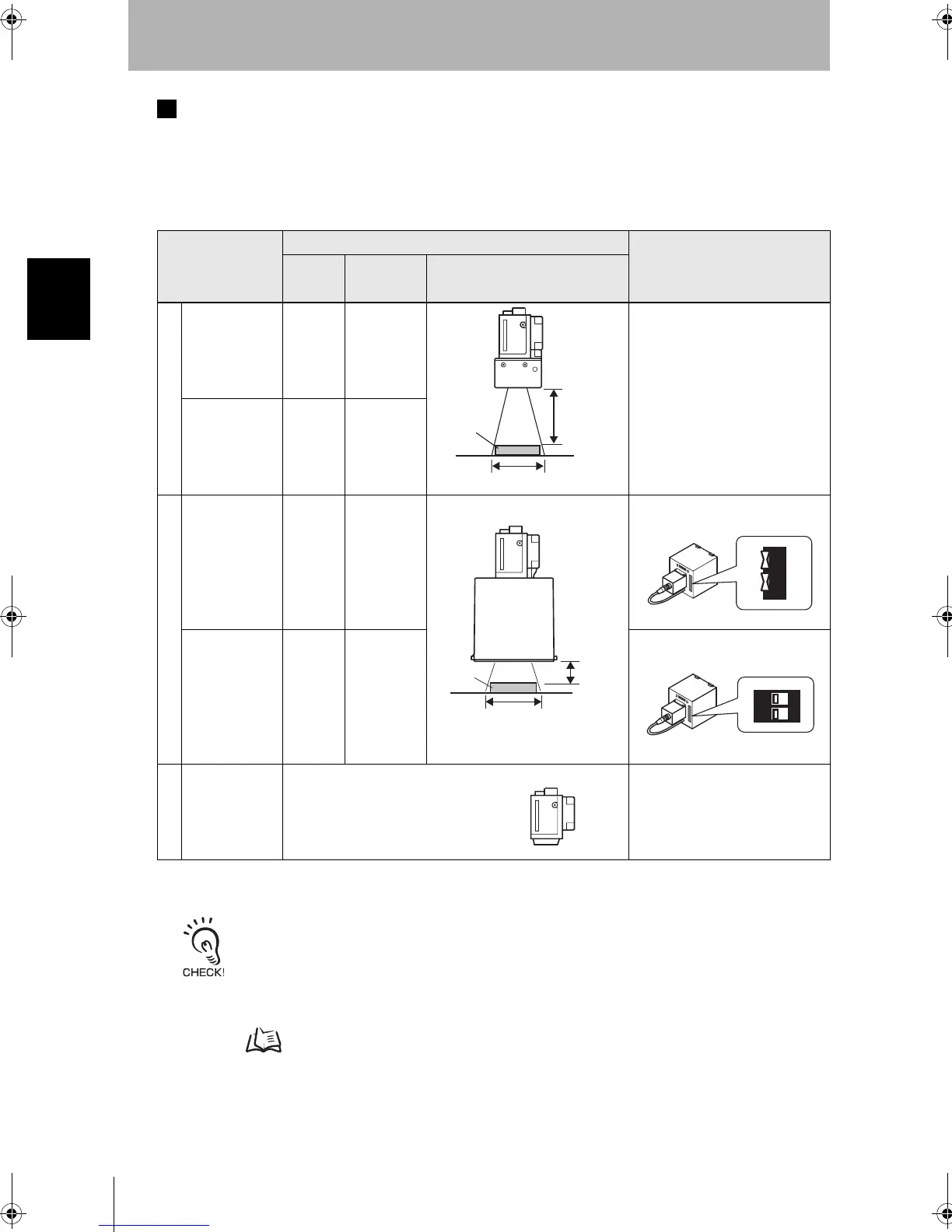

Item
Field of vision and distance to object
Lighting precautions
Field of
vision
Mounting
distance
Relationship between Camera and
object
Camera with Light
F150-SL20A
20 mm
×
20 mm
61 to 71 mm
None in particular
F150-SL50A
50mm
×
50mm
66 to 76 mm
Camera with Intelligent Lighting
F150-SLC20
F160-SLC20
20 mm
×
20 mm
15 to 25 mm
Use with DIP switch pins 1 and 2
both set to OFF.
F150-SLC50
F160-SLC50
50mm
×
50mm
16.5 to
26.5 mm
Use with DIP switch pins 1 and 2
both set to OFF.
Camera Only
F150-S1A
F160-S1
F160-S2
Determine the required field of
vision based on the size of the
measurement object and select an
appropriate CCTV lens (C mount).
Provide a light source appropriate
for the measurement object.
Measurement
object
Mounting
distance
Field of vision
Mea-
sure-
ment
object
Mounting
distance
Field of vision
㪦
㪥
㸡
㪈㪉
1
(
(
