Omron F210 User Manual

33
F210
Setup Manual
SECTION 3
Lenses, Lighting, and Memory Cards
SECTION 3

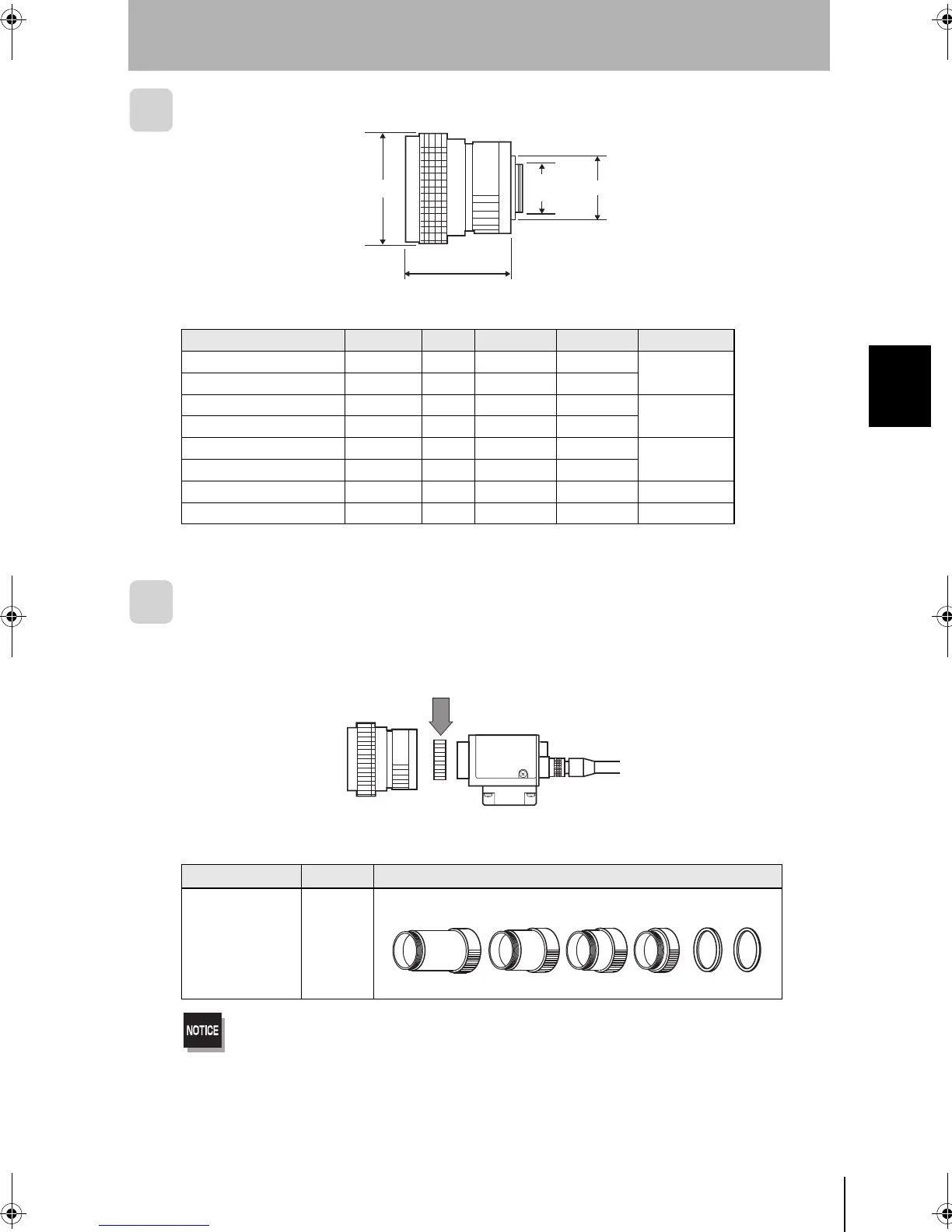

CCTV Lenses
Lenses and Lens Diameters
Extension Tube
One or more Extension Tubes can be inserted between the lens and the Camera to focus the
Camera image.Use a combination of one or more of the six tubes to achieve the required length.
• Do not use the 0.5-mm and 1.0-mm Extension Tubes attached to each other.
Since these Extension Tubes are placed over the threaded section of the Lens or other Extension Tube, the
connection may loosen when more than one 0.5-mm or 1.0-mm Extension Tube are used together.
• Reinforcement may be required for combinations of Extension Tubes exceeding 30 mm if the Camera is subject
to vibration.
Lenses and Lens Diameters
Lens model Focal length Brightness
Maximum outer diameter
Total length Filter size
3Z4S-LE C418DX 4.8mm F1.8
40.5 mm dia. 35.5mm
—
3Z4S-LE B618CX-2 6.5mm F1.8 48 mm dia. 42mm
3Z4S-LE C815B 8.5mm F1.5 42 mm dia. 40mm
M40.5 × P0.5
3Z4S-LE B1214D-2 12.5mm F1.4 42 mm dia. 50mm
3Z4S-LE C1614A 16.0mm F1.4 30 mm dia. 33mm
M27 × P0.5
3Z4S-LE B2514D 25.0mm F1.4 30 mm dia. 37.3mm
3Z4S-LE B5014A 50.0mm F1.4 48 mm dia. 48mm M46 × P0.75
3Z4S-LE B7514C 75.0mm F1.4 62 mm dia. 79mm M58 × P0.75
Extension Tube
Item
Maximum outer
diameter
Length
3Z4S-LE EX-C6 31 dia.
30 dia.
1"-32UN
-2A
Maximum outer diameter
Total length
Extension Tube
Length: 40 mm
20 mm
10 mm
5 mm
1.0 mm
0.5 mm
6 item set
F210setUP.book33ページ２００３年１月２８日 火曜日 午前１１時６分
