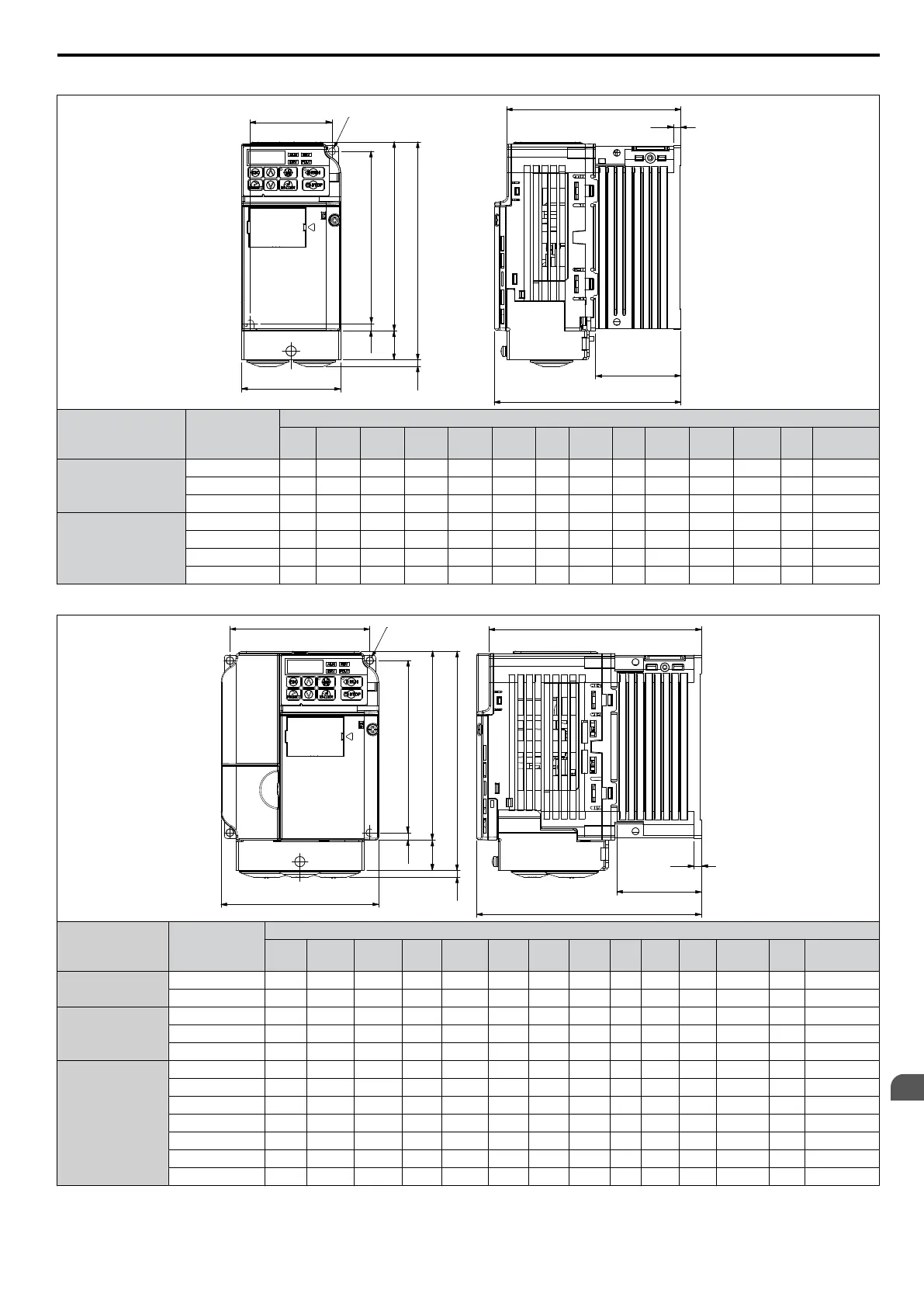

Table 8.4 NEMA Type 1 (without an EMC filter)
D1
t1
H1
H
H2
H5 H4
H3
W
D2
D
2-M4W1
Voltage Class
Drive Model
JZA
Dimensions (mm)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Weight
(kg)
Single-Phase
200 V Class
B0P1 68 148 76 56 128 118 4.4 20 5 1.5 6.5 67.5 3 0.8
B0P2 68 148 76 56 128 118 4.4 20 5 1.5 6.5 67.5 3 0.8
B0P4 68 148 118 56 128 118 4.4 20 5 1.5 38.5 109.5 5 1.2
Three-Phase
200 V Class
20P1 68 148 76 56 128 118 4.4 20 5 1.5 6.5 67.5 3 0.8
20P2 68 148 76 56 128 118 4.4 20 5 1.5 6.5 67.5 3 0.8
20P4 68 148 108 56 128 118 4.4 20 5 1.5 38.5 99.5 5 1.1
20P7 68 148 128 56 128 118 4.4 20 5 1.5 58.5 119.5 5 1.3
Table 8.5 NEMA Type 1 (without an EMC filter)
4-M4
W1
W
H5
H2
H4
H
H3
H1
D1
D2
D
t1
Voltage Class
Drive Model
JZA
Dimensions (mm)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Weight
(kg)
Single-Phase
200 V Class
B0P7 108 148.9 137.5 96 128 118 4.4 20.9 5 1.5 58 129 5 1.9
B1P5 108 148.9 154 96 128 118 4.5 20.9 5 1.5 58 145.5 5 2.0
Three-Phase
200 V Class
21P5 108 148.9 129 96 128 118 4.4 20.9 5 1.5 58 120.5 5 1.9
22P2 108 148.9 137.5 96 128 118 4.4 20.9 5 1.5 58 129 5 1.9
24P0 108 148.9 143 128 128 118 4.5 20.9 5 5 65 134.5 5 2.6
Three-Phase
400 V Class
40P2 108 148.9 81 96 128 118 4.4 20.9 5 1.5 10 72.5 5 1.2
40P4 108 148.9 99 96 128 118 4.4 20.9 5 1.5 28 90.5 5 1.4
40P7 108 148.9 137.5 96 128 118 4.4 20.9 5 1.5 58 129 5 1.9
41P5 108 148.9 154 96 128 118 4.5 20.9 5 1.5 58 145.5 5 1.9
42P2 108 148.9 154 96 128 118 4.5 20.9 5 1.5 58 145.5 5 1.9
43P0 108 148.9 154 96 128 118 4.5 20.9 5 1.5 58 145..5 5 1.9
44P0 108 148.9 143 128 128 118 4.5 20.9 5 5 65 134.5 5 2.6
8.4 Installing Peripheral Devices
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
157
8
Peripheral Devices & Options
