Drive
JZA
Filter Data (Manufacturer: Schaffner)
Type
Rated
Current
(A)
Weight
(kg)
Dimensions
[W x L x H] (mm)
Y x X
Drive
Mounting
Screw A
Filter
Mounting
Screw
44P0 A1000–FIV3020–SE 15 0.9 144 x 174 x 50 120 x 161 M4 M5
Table D.3 EN 61800-3 Category C1 Filters
Drive VZA
Filter Data (Manufacturer: Rasmi)
Type
Rated
Current
(A)
Weight
(kg)
Dimensions
[W x L x H]
Y x X
Drive
Mounting
Screw A
Filter
Mounting
Screw
200 V Single-Phase Units
B0P1 A1000–FIV1010–RE 10 0.6 71 x 169 x 45 51 x 156 M4 M5
B0P2 A1000–FIV1010–RE 10 0.6 71 x 169 x 45 51 x 156 M4 M5
B0P4 A1000–FIV1010–RE 10 0.6 71 x 169 x 45 51 x 156 M4 M5
B0P7 A1000–FIV1020–RE 20 1.0 111 x 169 x 50 91 x 156 M4 M5
B1P5 A1000–FIV1020–RE 20 1.0 111 x 169 x 50 91 x 156 M4 M5
200 V Three-Phase Units
20P1 A1000–FIV2010–RE 10 0.8 82 x 194 x 50 62 x 181 M4 M5
20P2 A1000–FIV2010–RE 10 0.8 82 x 194 x 50 62 x 181 M4 M5
20P4 A1000–FIV2010–RE 10 0.8 82 x 194 x 50 62 x 181 M4 M5
20P7 A1000–FIV2010–RE 10 0.8 82 x 194 x 50 62 x 181 M4 M5
21P5 A1000–FIV2020–RE 16 1.0 111 x 169 x 50 91 x 156 M4 M5
22P2 A1000–FIV2020–RE 16 1.0 111 x 169 x 50 91 x 156 M4 M5
24P0 A1000–FIV2030–RE 26 1.3 144 x 174 x 50 120 x 161 M4 M5
400 V Three-Phase Units
40P2 A1000–FIV3005–RE 5 1.0 111 x 169 x 45 91 x 156 M4 M5
40P4 A1000–FIV3005–RE 5 1.0 111 x 169 x 45 91 x 156 M4 M5
40P7 A1000–FIV3005–RE 5 1.0 111 x 169 x 45 91 x 156 M4 M5
41P5 A1000–FIV3010–RE 10 1.0 111 x 169 x 45 91 x 156 M4 M5
42P2 A1000–FIV3010–RE 10 1.0 111 x 169 x 45 91 x 156 M4 M5
43P0 A1000–FIV3010–RE 10 1.0 111 x 169 x 45 91 x 156 M4 M5
44P0 A1000–FIV3020–RE 15 1.1 144 x 174 x 50 120 x 161 M4 M5
H
X
L
W
Y
LINE
A
PE
LOAD

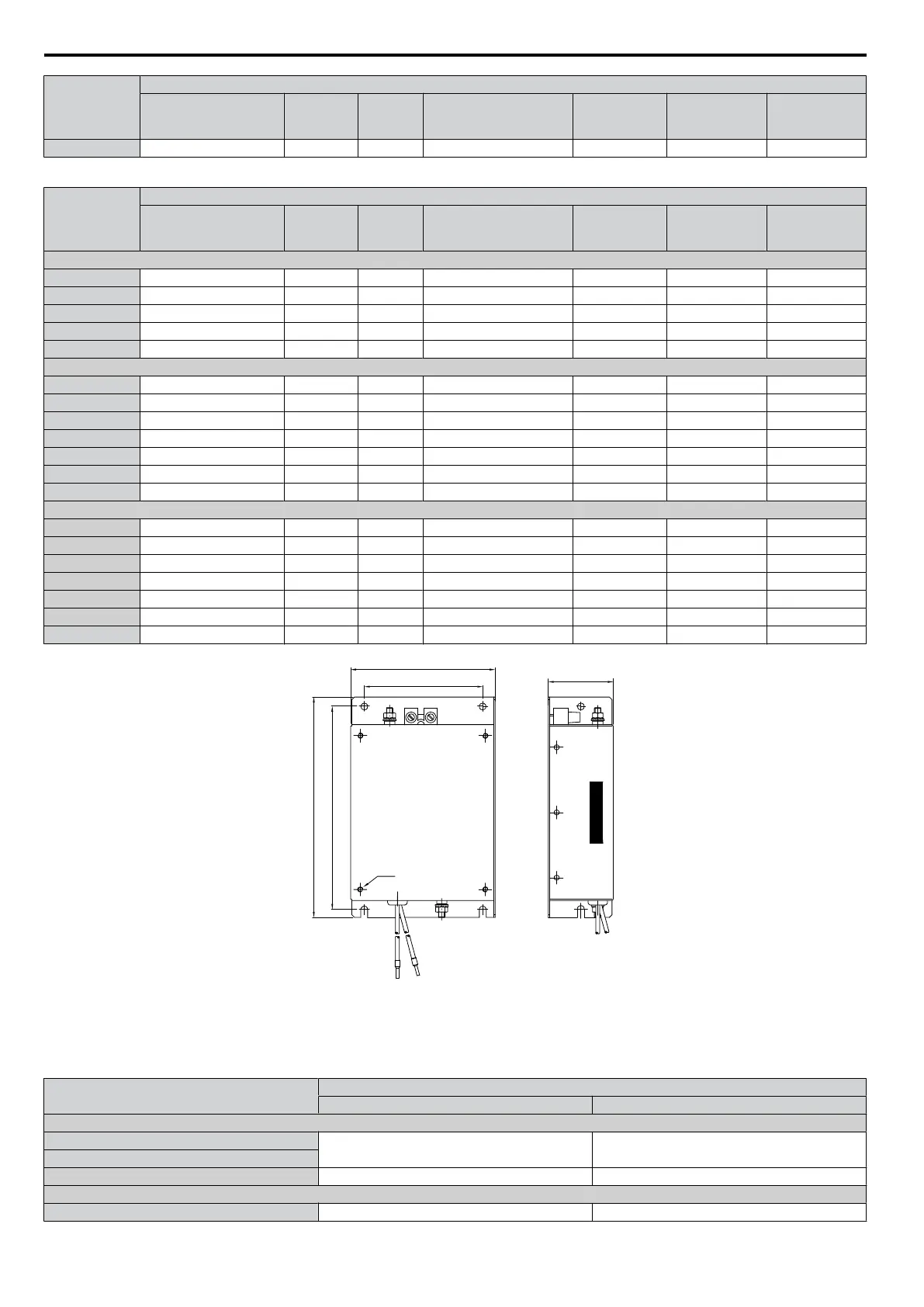

Figure D.6 EMC Filter Dimensions
n
DC Reactors for EN 61000-3-2 Compliance
Table D.4 DC Reactors for Harmonics Reduction
Drive Model
JZA
DC Reactor
Model Rating
200V Single-Phase Units
B0P1
3.5 A 30 mH
B0P2
B0P4 6.7 A 25 mH
400 V Three-Phase Units
40P2 3.5 A 3.0 mH
D.2 European Standards
216
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
