Single-Phase 200 V Class
B
C
D
E
D
F
A
H
G
J
I
N
L1
E
N
L1
PE
PE
A – Ground the cable shield
B
– Enclosure panel
C – Metal plate
D – Grounding surface (remove any paint or sealant)
E – Drive
F – Motor cable (braided shield cable, max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short as possible
J – EMC noise filter

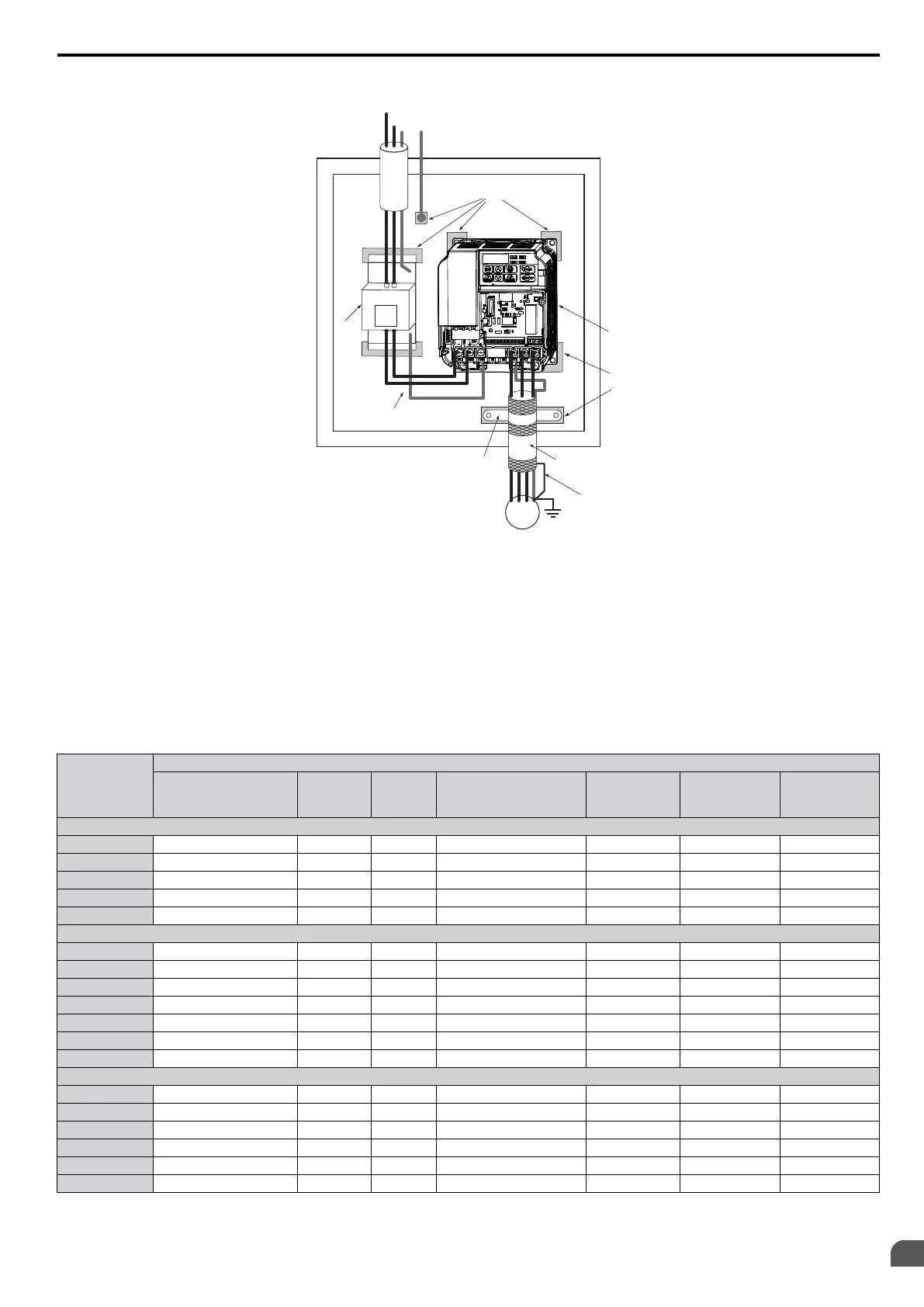

Figure D.5 EMC Filter and Drive Installation for CE Compliance (Single-Phase 200 V Class)
n
EMC Filters
The drive should be installed with the EMC filters listed below in order to comply with the EN 61800-3, category C1
requirements.
Table D.2 EN 61800-3 Category C1 Filters
Drive
JZA
Filter Data (Manufacturer: Schaffner)
Type
Rated
Current
(A)
Weight
(kg)
Dimensions
[W x L x H] (mm)
Y x X
Drive
Mounting
Screw A
Filter
Mounting
Screw
200 V Single-Phase Units
B0P1 A1000–FIV1010–SE 10 0.44 71 x 169 x 45 51 x 156 M4 M5
B0P2 A1000–FIV1010–SE 10 0.44 71 x 169 x 45 51 x 156 M4 M5
B0P4 A1000–FIV1010–SE 10 0.44 71 x 169 x 45 51 x 156 M4 M5
B0P7 A1000–FIV1020–SE 20 0.75 111 x 169 x 50 91 x 156 M4 M5
B1P5 A1000–FIV1020–SE 20 0.75 111 x 169 x 50 91 x 156 M4 M5
200 V Three-Phase Units
20P1 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
20P2 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
20P4 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
20P7 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
21P5 A1000–FIV2020–SE 14 0.6 111 x 169 x 45 91 x 156 M4 M5
22P2 A1000–FIV2020–SE 14 0.6 111 x 169 x 45 91 x 156 M4 M5
24P0 A1000–FIV2030–SE 24 0.9 144 x 174 x 50 120 x 161 M4 M5
400 V Three-Phase Units
40P2 A1000–FIV3005–SE 5 0.5 111 x 169 x 45 91 x 156 M4 M5
40P4 A1000–FIV3005–SE 5 0.5 111 x 169 x 45 91 x 156 M4 M5
40P7 A1000–FIV3005–SE 5 0.5 111 x 169 x 45 91 x 156 M4 M5
41P5 A1000–FIV3010–SE 10 0.7 111 x 169 x 45 91 x 156 M4 M5
42P2 A1000–FIV3010–SE 10 0.7 111 x 169 x 45 91 x 156 M4 M5
43P0 A1000–FIV3010–SE 10 0.7 111 x 169 x 45 91 x 156 M4 M5
D.2 European Standards
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
215
D
Standards Compliance
