n
Single-Phase AC200 V JZAB0P7B ~ B1P5B
Three-Phase AC200 V JZA20P1B ~ 24P0B
Three-Phase AC400 V JZA40P2B ~ 44P0B
L
A
B
C
D
F
K
J
I
E
G
H
A – Mounting hole
B
– Heatsink
C – Cable cover
D – Terminal cover
E – Bottom cover
F – Front cover screw
G – Option connector cover
H – Front cover
I – LED operator Refer to Using the Digital LED
Operator on page 54
J – Case
K –
Cooling fan
<1>
L –
Fan cover
<1>

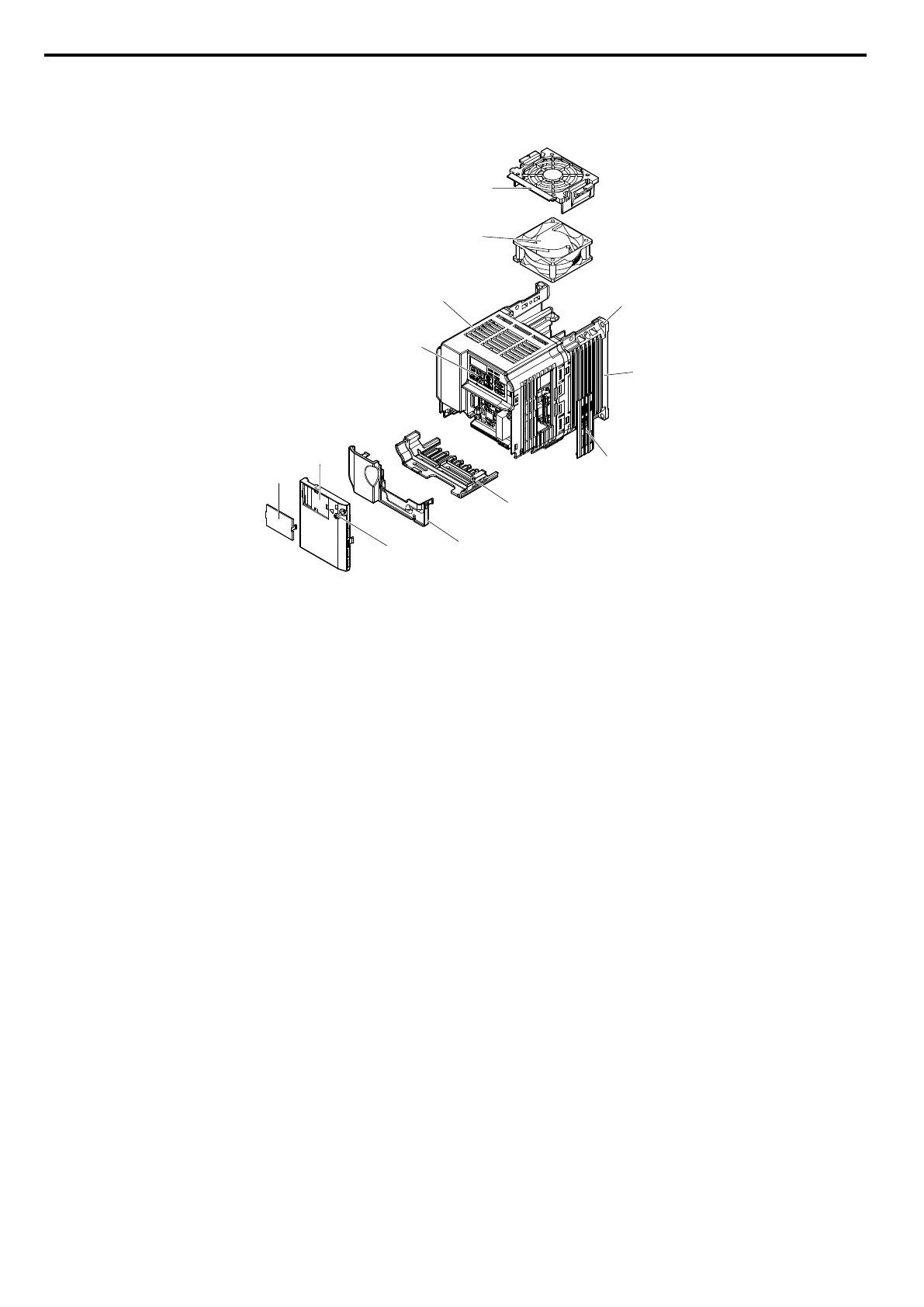

Figure 1.3 Exploded view of IP20/Open-Chassis Type Components
Three-Phase AC200 V JZA22P2B
<1>
The drives JZAB0P7B and 40P2B ~ 40P7B do not have a cooling fan or a cooling fan cover.
1.3 Component Names
20
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
