Drive Mode
Output Voltage Reference
Monitors the output voltage of the drive.
Monitor Display
Monitor parameters (U parameters) are displayed.
Programming
Mode
Verify Function
Lists all parameters that have been edited or changed from default settings. Refer
to
Verifying Parameter Changes: Verify Menu on page 59.
Setup
A select list of parameters necessary to get the drive operational quickly. Refer to
The Setup Group within the Programming Mode on page 59.
Parameter Setting
Allows the user to access and edit all parameter settings. Refer to Parameter List
on page 169.
Drive Mode
Frequency Reference
Returns to the frequency reference display screen.
n
Drive Mode Details
The following actions are possible in the Drive Mode:
•
Run and stop the drive.
• Monitor the operation status of the drive (frequency reference, output frequency, output current, output voltage, etc.).
• View information on an alarm.
Note: Select "Drive Mode" when running. The mode can be switched to any mode (program mode, etc.) other than drive mode while the drive
is stopped. However, the drive cannot be operated in other modes. Return the mode to "Drive Mode" after completing periodic inspection.

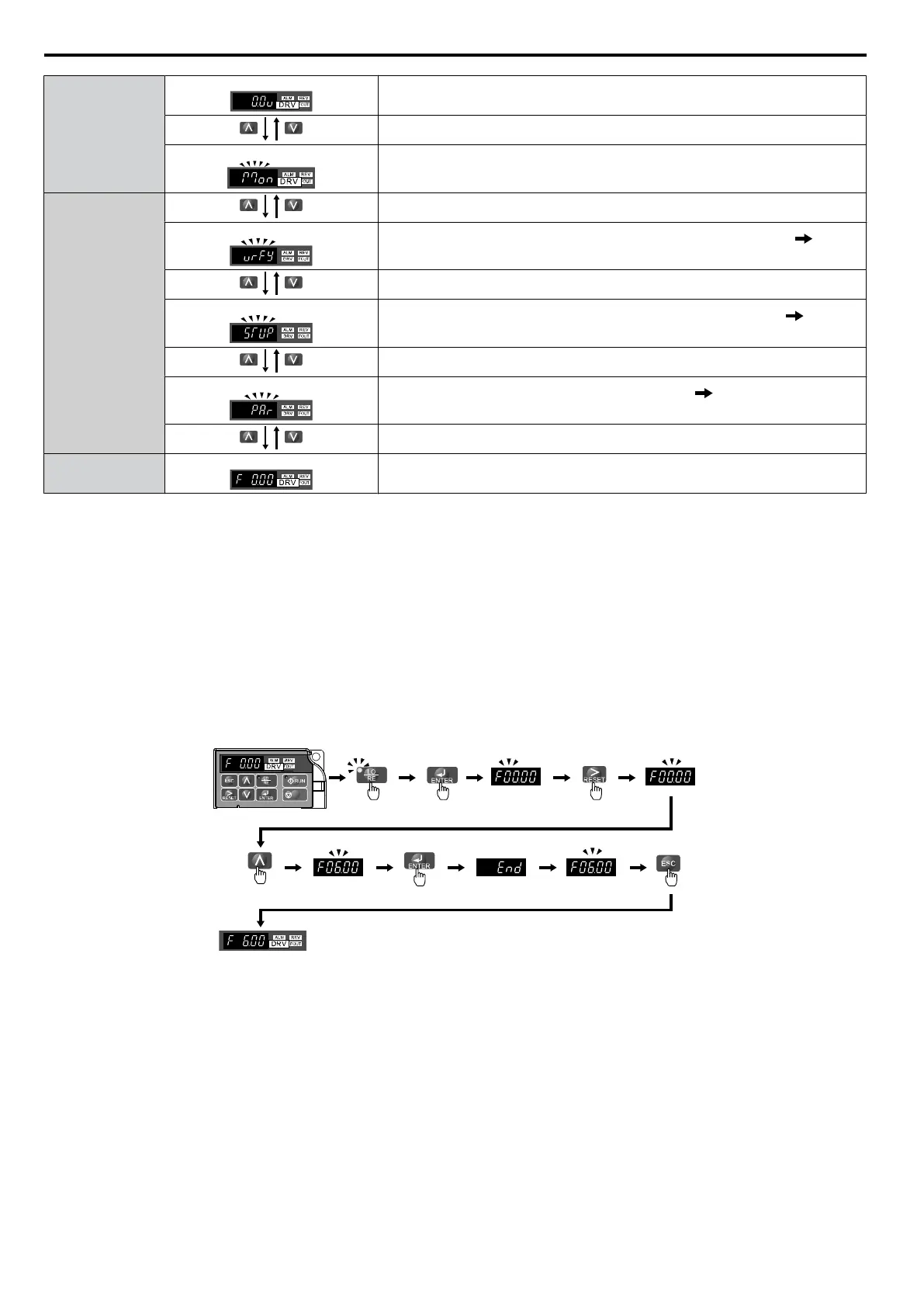

Figure 4.4 illustrates changing the default frequency reference of F 0.00 (0 Hz) to F 6.00 (6 Hz) while in Drive Mode.
This example assumes the drive is set to LOCAL.
STOP
Frequency reference
display at power up
Press to select LOCAL
Press until the frequency
reference becomes 6 Hz
Press to select the
digit to the right
Figure 4.4 Setting the Frequency Reference while in Drive Mode
Note: The drive will not accept a frequency reference set value unless the ENTER key is pressed after the frequency reference is entered. This
feature prevents accidental setting of the frequency reference. By setting o2-05 (Frequency Reference Setting Method Selection) to 1
(Enabled), the drive will accept the frequency reference while it is being adjusted on the digital operator.
n
Programming Mode Details
The following actions are possible in the programming mode:
• Verify Function: Verify parameter setting changes from original default values.
• Setup Group: Access a list of commonly used parameters to simplify setup.
• Parameter Setting Mode: Access and edit all parameter settings.
4.3 The Drive and Programming Modes
58
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
