68 LD Platform OEM User's Guide 11970-000 Rev H1
6.2 Payload Bay Connections
Light Pole
Connector type Mini-Fit
®
3 x 2
Use Light tower (user-supplied)
Pin No. Designation Notes
1 GND Cable shield
2 LIGHT_P1 Red
3 LIGHT_P2 Yellow or orange
4 VBAT_IO_OUT4 VBAT @ 0.5A Max (shared with DIO)
5 LIGHT_P3 Green
6 LIGHT_P4 Buzzer
VBAT_IO_OUT4
4
LIGHT_P1_N
2
LIGHT_P2_N
3
LIGHT_P3_N
5
LIGHT_P4_N
6
GND
1
(equivalent
circuit)
Typical user load
Wiring terminal block
Standard Equipment User-Supplied Equipment

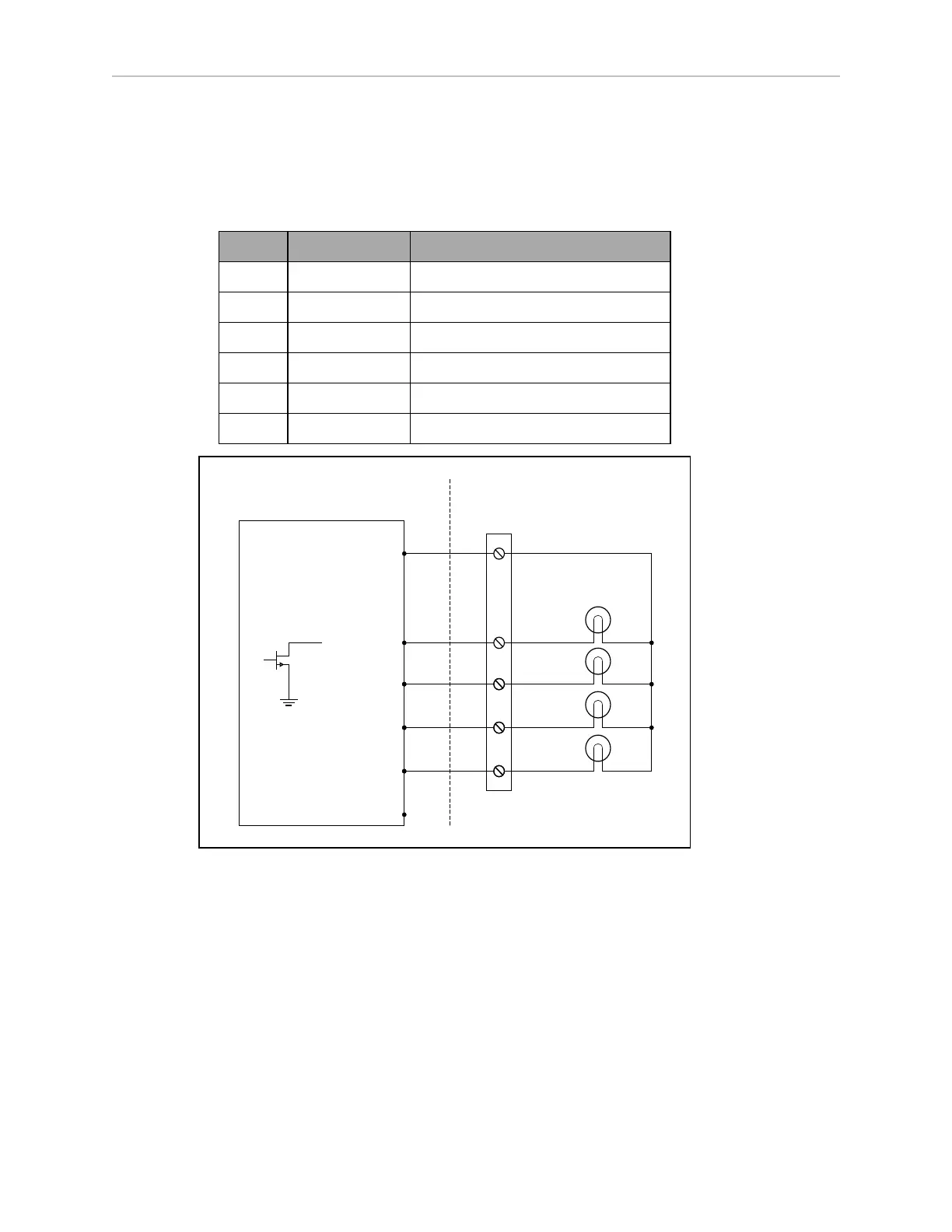

Figure 6-6. Sample Light Pole Diagram
