Starting the Troubleshooter for User-defined Errors or Controller Errors
The required settings are made from the Sysmac Studio.

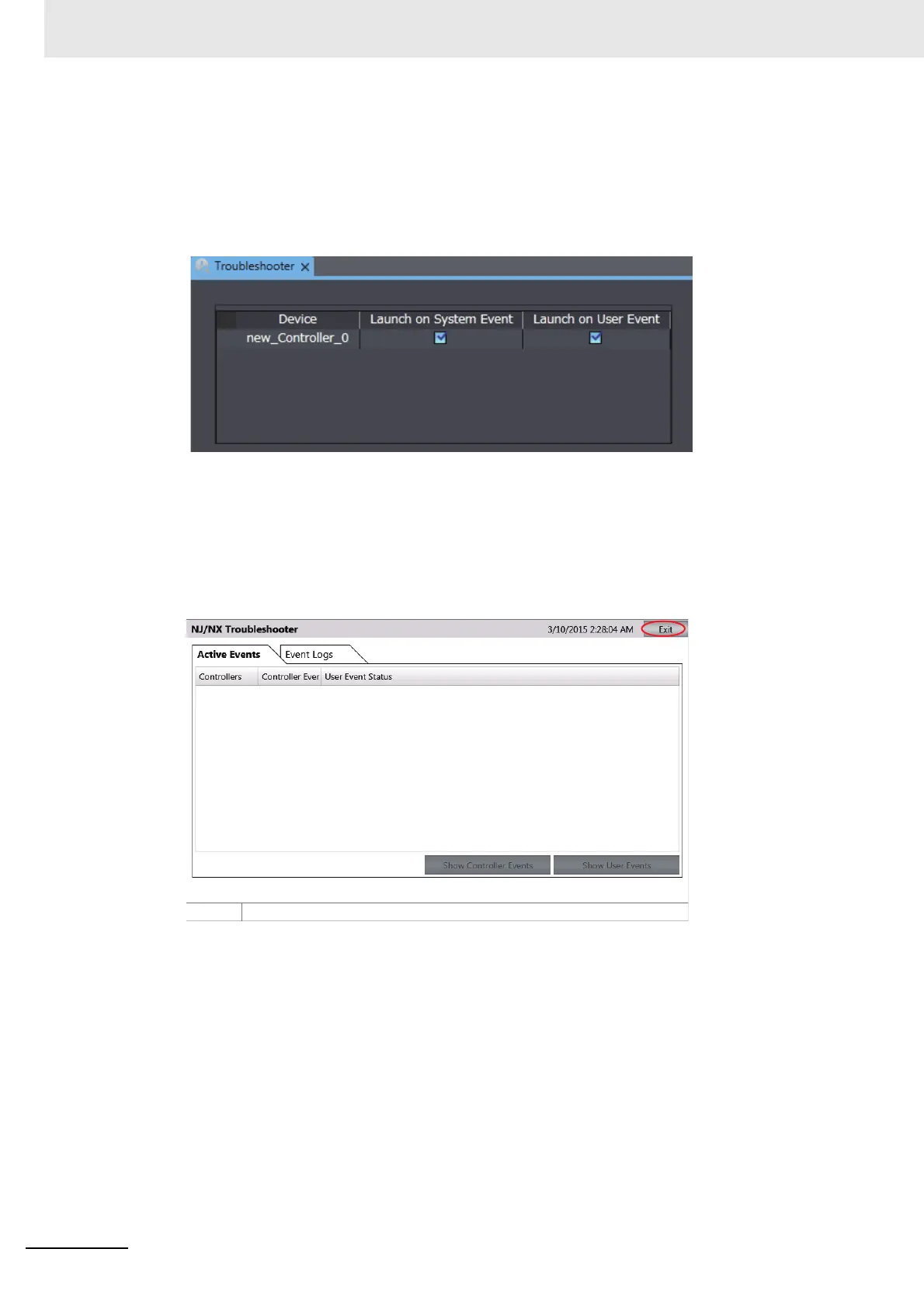

1 Double-click Troubleshooter under Configurations and Setup in the Multiview Explorer. The
Troubleshooter Settings Tab Page will be displayed in the Edit Pane.
2 Select the Launch on System Event or Launch on User Event Check Box.
3 Generate the type of error that was set in step 2 in the Controller.
4 The NJ/NX/NY Troubleshooter will be started.
Quitting the NJ/NX/NY Troubleshooter
1 Click the Exit Button on the screen that was displayed when the NJ/NX/NY Troubleshooter
started.
2 The display will return to the user screen that was displayed before the NJ/NX/NY Trouble-
shooter started.
