Omron NA5-12W series

4 System Program
4 - 20
NA-series Programmable Terminal Hardware User’s Manual (V117)
This screen displays a list of the Controller errors for the selected host.
Additional Information
Although user-defined events are also displayed with similar descriptions on the screen, no
source is displayed because user events are not displayed according to the Functional Module.
When the Reset Button is pressed, all of the errors, including anything hidden on the screen,
will be cleared.

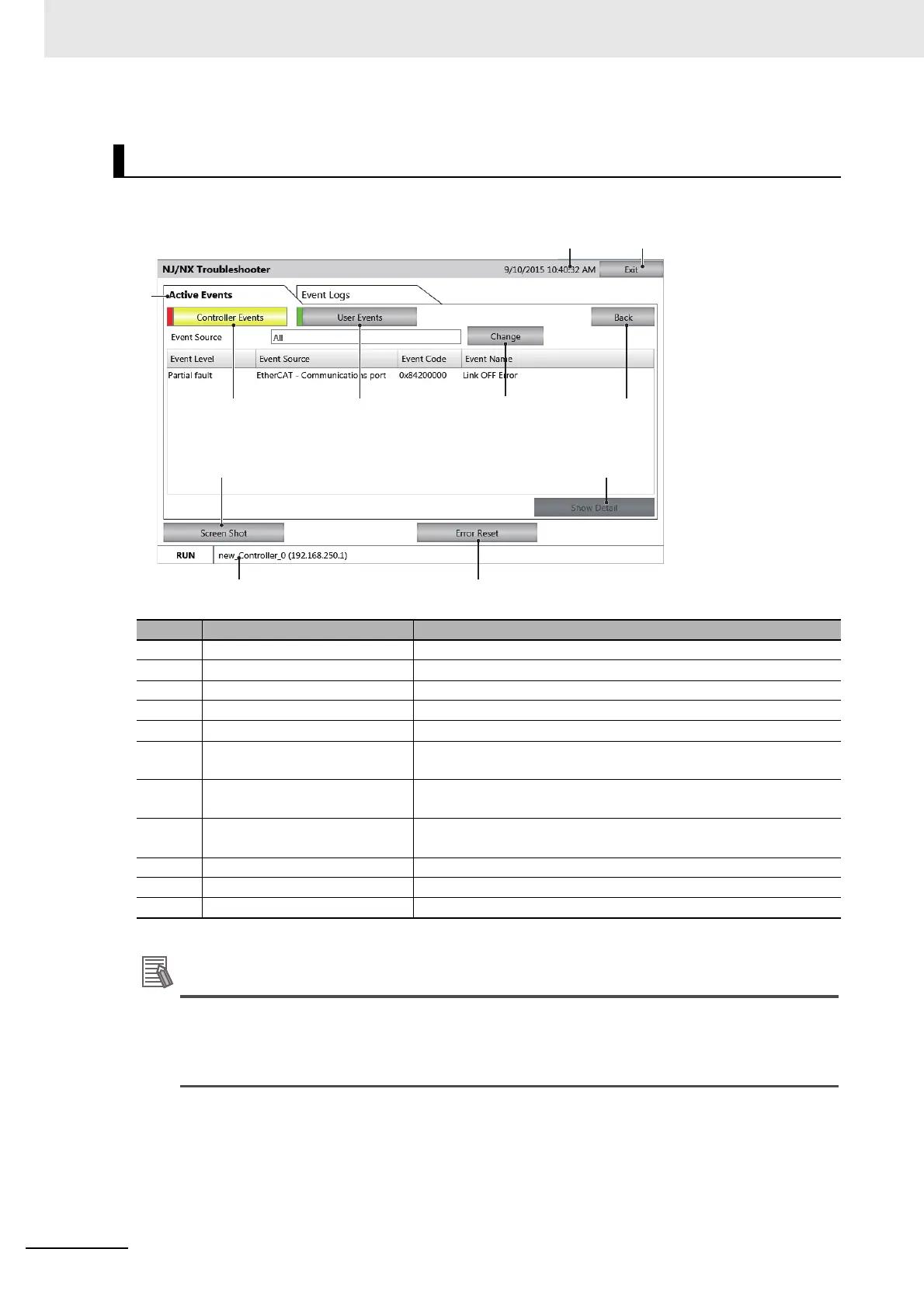

Controller Event List Screen
No. Item Description
1 Exit Button Quits the Troubleshooter.
2 Title Bar Displays the current date of the NA.
3 Tabs Switch between displaying active events and the event log.
4 Controller Events Displays current Controller events.
5 User Events Displays current user-defined events.
6 Change (source of the error)
Button
Selects the source of the errors to display and restricts the items to
display.
7 Back Button Returns the display to the NJ/NX/NY-series Controller Status
Screen.
8 Screen Shot Button Captures an image of the displayed screen and stores it in USB
memory or an SD Memory Card in PNG format.
9 Show Detail Button Displays the detailed screen of the current event.
10 Error Reset Button Clears the events that are displayed on the screen.
11 Status Bar Displays information on the Controller that is currently selected.
1
10
4 5 7
6
11
2
8 9
3
