6-2 Initializing and Saving Data and Removing the Memory Card
Initializing the Operation Log

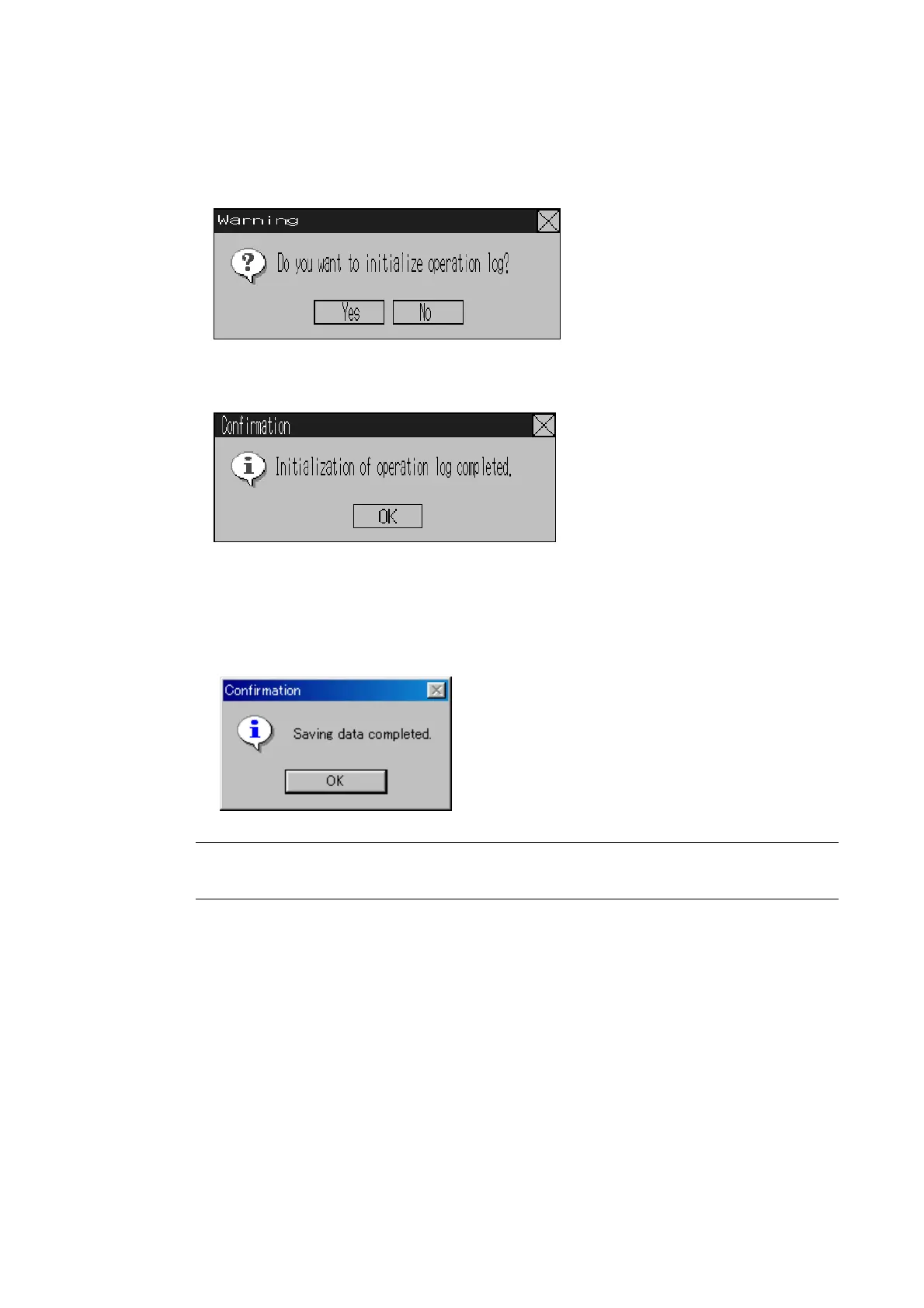

1. Press the Initialize Button.
A confirmation message will be displayed. Press the Yes Button to initialize the data. Press the
No Button to cancel the initialize function.
2. When the PT has completed initializing the operation log, a dialog box will be displayed indicat-
ing that the operation log has finished being initialized.
Saving the Operation Log
1. Press the Save Button. The Save Button will be lit yellow while data is being saved.
2. When the PT has completed saving the operation log, the Save Button will return to its
normal color.
A dialog box will be displayed indicating that the save has been finished.
Reference
• When saving the operation log, the operation log must be controlled from the system
memory. For details on controlling the operation log, refer to 2-4 System Memory in
the PT Programming Manual.
6-14
