Appendix 3 Using NS-AL002 Converters

A-3-5  Pin Arrangement

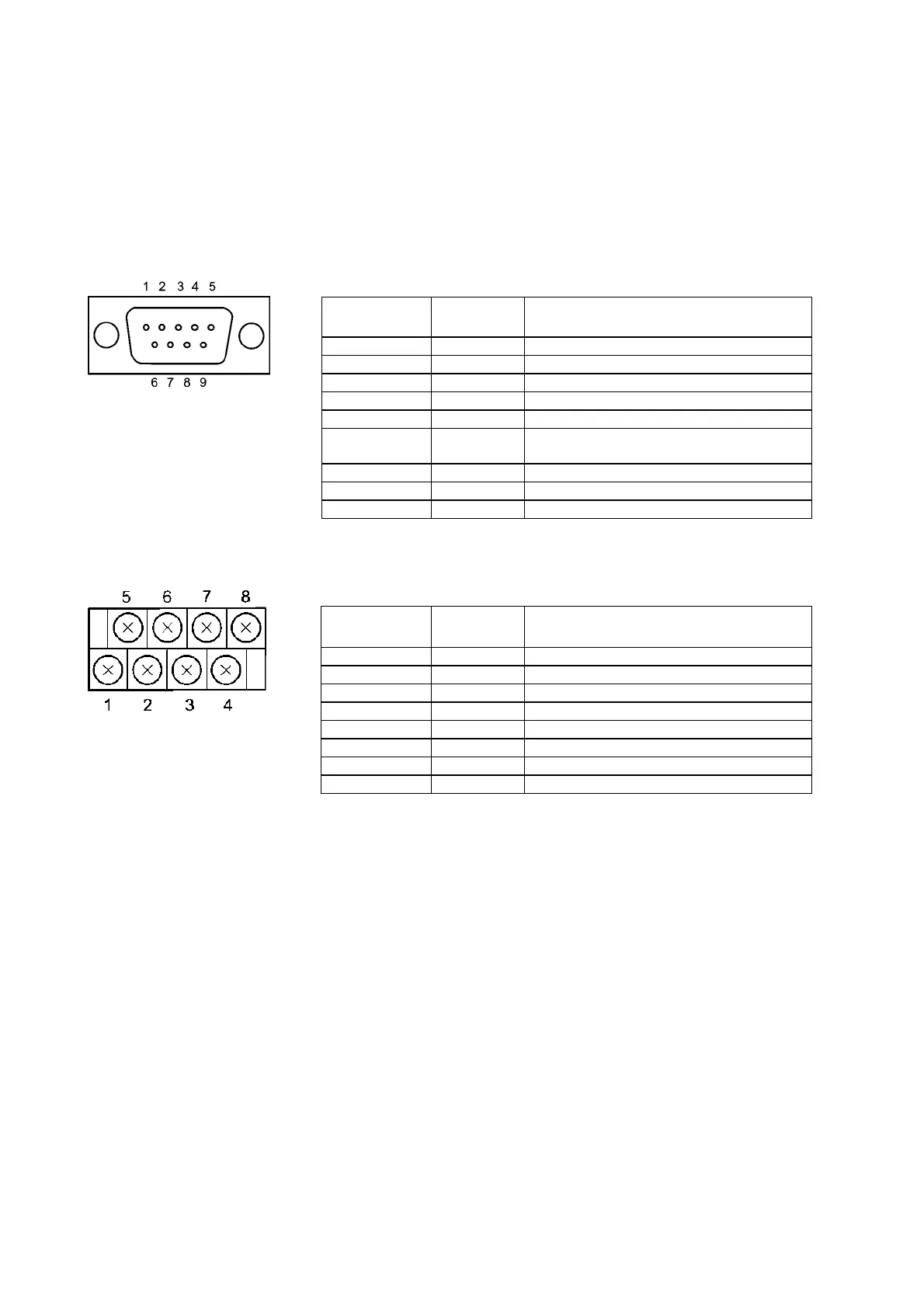

The Adapter has a connector for RS-232C interface connection and a terminal block for
RS-422A/485 interface connection.
The pin arrangements for the RS-232C connector and RS-422A/485 terminal block are as
follows:

● RS-232C Connector

Terminal block
pin number
Signal name  Signal direction
Adapter ⇔ PT
 1   NC
 2   RD   ←
 3   SD   →
 4   CS   ← (RS signal short-circuited internally)
 5   RS   →
 6   5 V
(30 mA max.)
 ←
 7 or 8   NC   (Pins 7 and 8 are short-circuited.)
 9   SG   −
Connector hood   FG   Connects to functional ground terminal of PT.

● RS-422A Terminal Block



Terminal block
pin number
Signal name
Signal direction
Adapter ⇔ Host
 1   FG   Connects to functional ground terminal of PT.
 2   RDB (+)   ←
 3   SDB (+)   →
 4   RSB (+)    →
 5   NC   ---
 6   RDA (−)  ←
 7   SDA (−)  →
 8   RSA (−)    →

A-20
