Omron NS5-SQ00 V2 Series - Installing RS-232 C;RS-422 A Converters; Mounting the PT to the Control Panel

3-1 Installing the PT
3-1-2 Installing RS-232C/RS-422A Converters
When using RS-232C/RS-422A Converters, mount the PT to the control panel before install-
ing these Units.
For details on installing and removing RS-232C/RS-422A Converters, refer to Appendix 3 Us-
ing NS-AL002 Converters.
3-1-3 Mounting the PT to the Control Panel
The PT is flush-mounted to the control panel.
The PT is mounted using the panel mounting brackets provided with the PT, and tools, such
as a Phillips screwdriver.
Use the following procedure to mount the PT to the control panel.

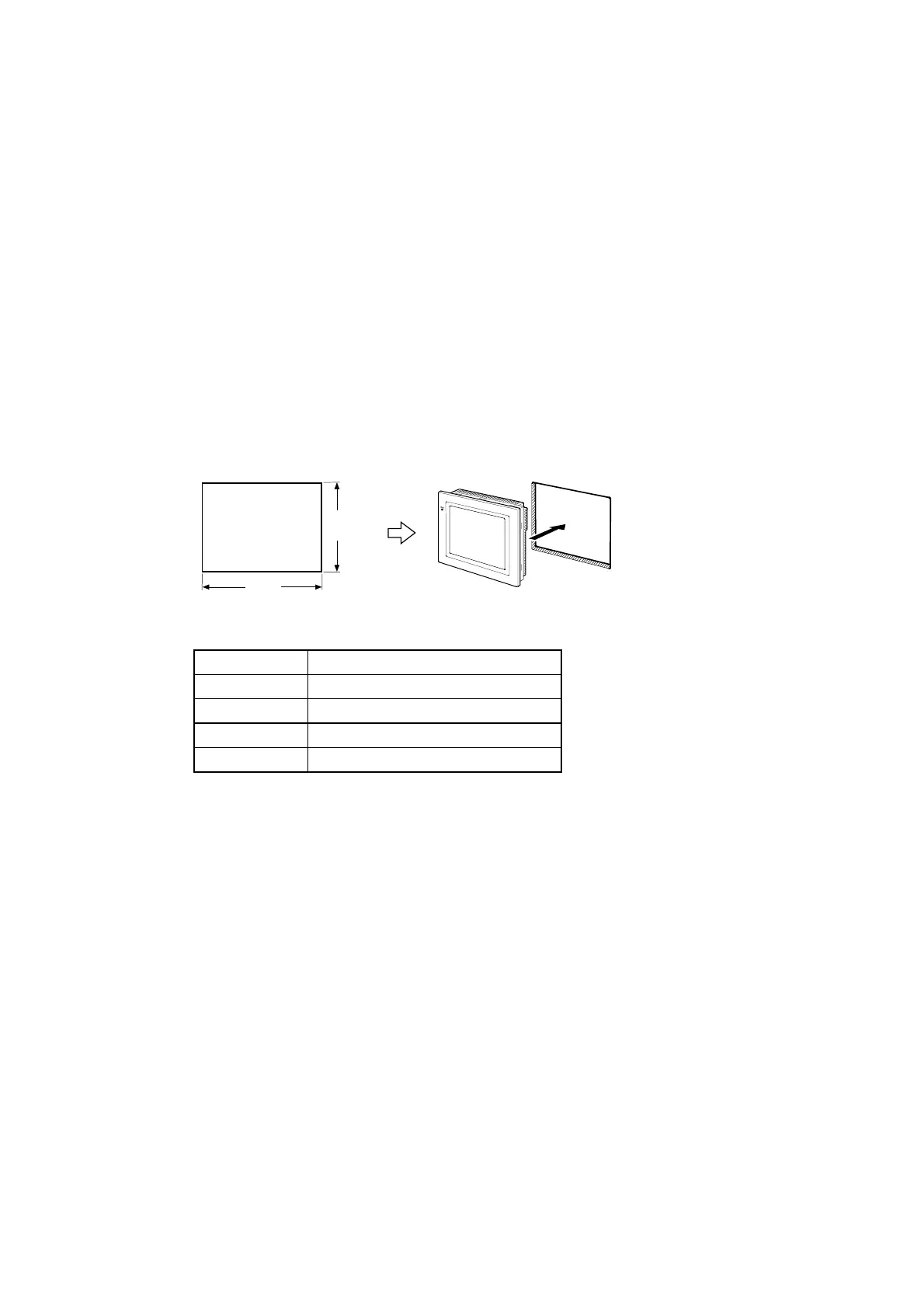

1. Make a hole in the panel for flush mounting according to the following dimensions and in-
sert the PT from the front of the panel.
Recommended panel thickness:
1.6 to 4.8 mm
Width
Height
Model Dimensions
NS12
Width 302
× Height 228 mm
+1
0
+1
0
NS10
Width 302
× Height 228 mm
+1
0
+1
0
NS8
Width 220.5
× Height 165.5 mm
+0.5
0
+0.5
0
NS5
Width 184
× Height 131 mm
+0.5
0
+0.5
0
3-4
