3-7 Installing the Video Input Unit

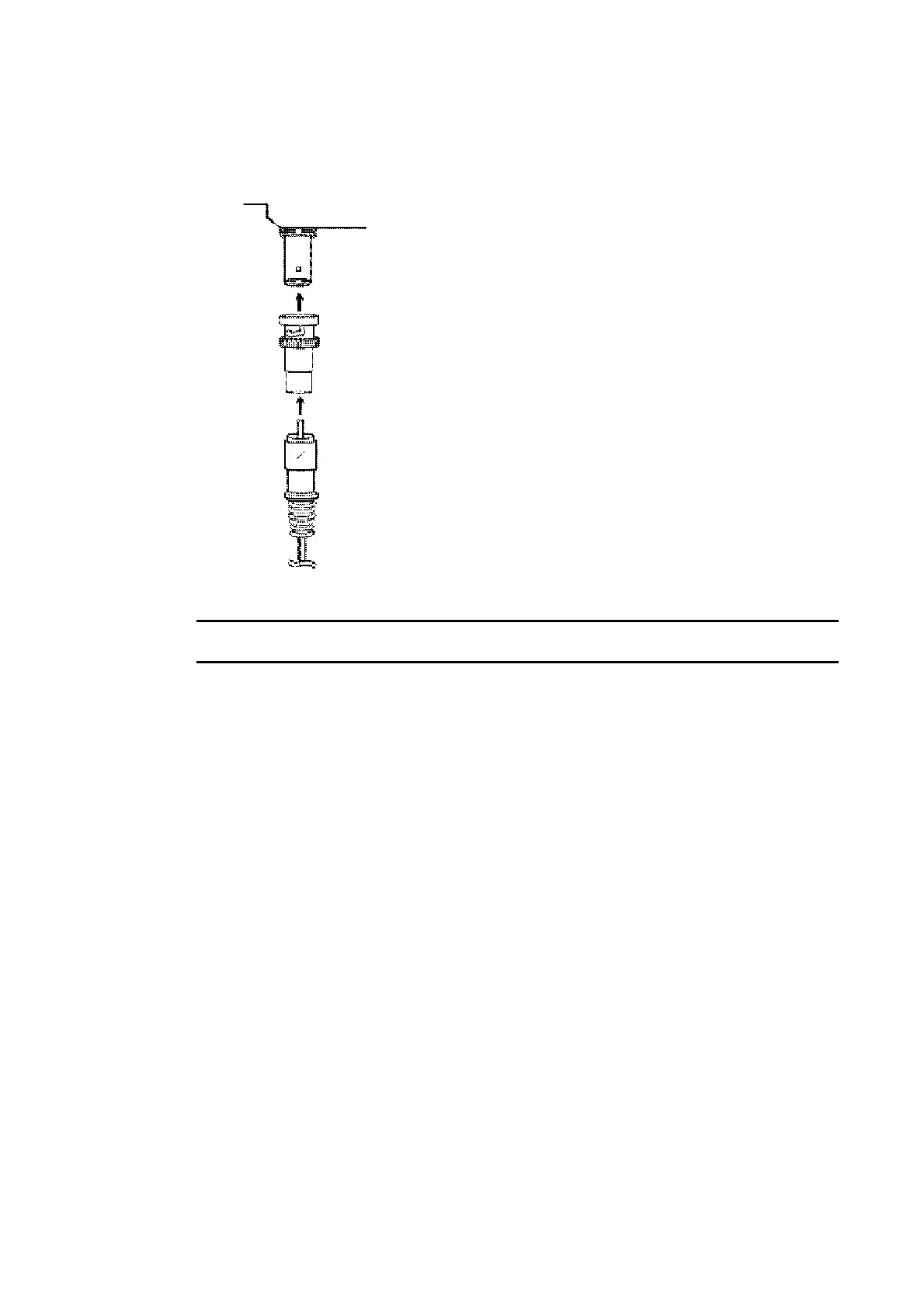

If the camera’s video output cable uses an RCA plug, connect it to the video input con-
nector using a BNC-RCA connector in the way shown below.
Video input connector
(BNC type)
BNC-RCA connector (See note.)
RCA plug
Note A BNC-RCA connector is provided with the Monitor Cable (F150-VM) for OMRON Vision
Sensors. It is not provided with the Video Input Unit (NS-CA001).
