3-8 Installing the Controller Link Interface Unit

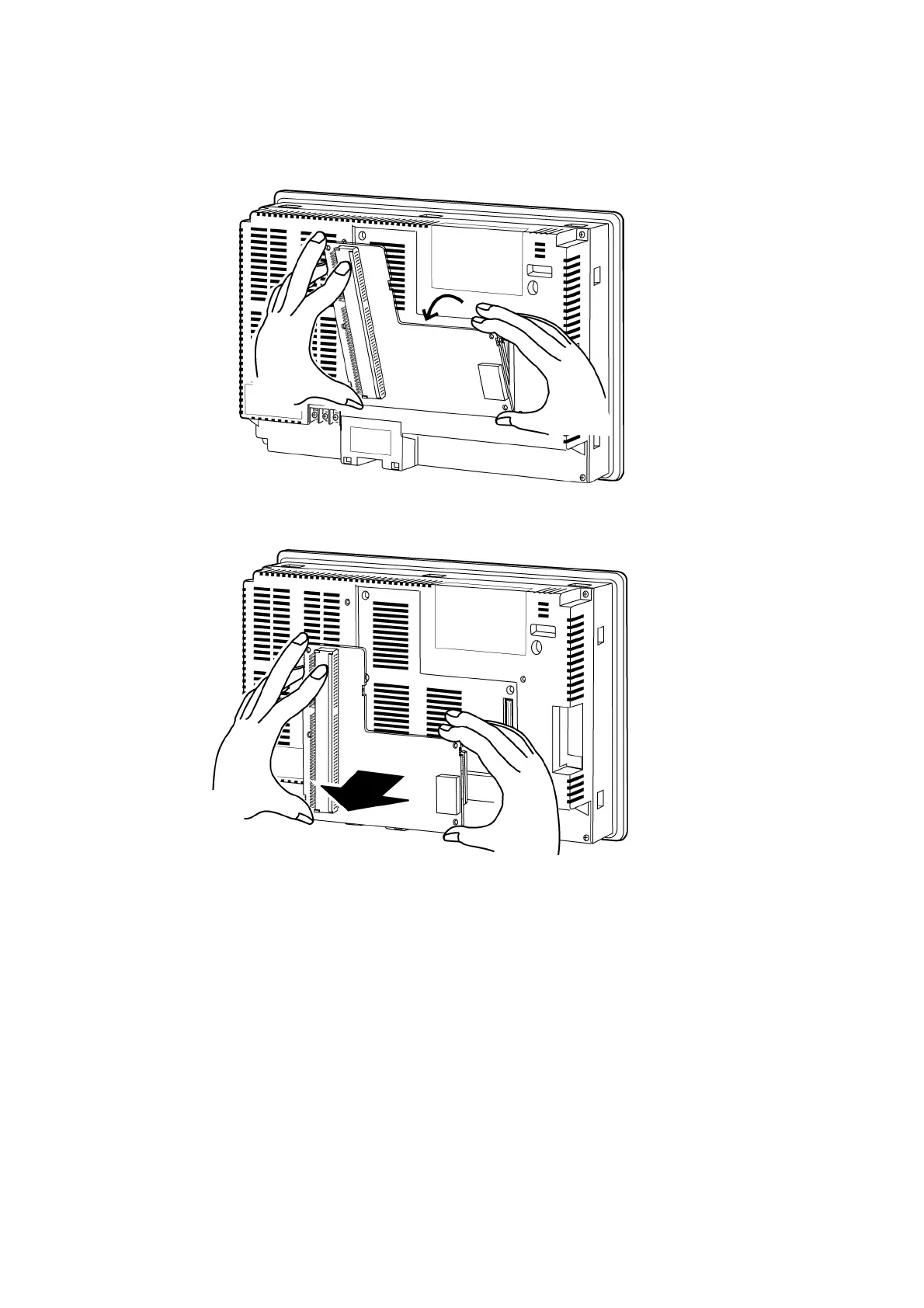

4. Disconnect the Connector Conversion Board from the PT. To do this, follow the steps
given below.
Hold the four corners of the
Board and detach upper side
first.
Then, pull out the Board
completely.
3-49
