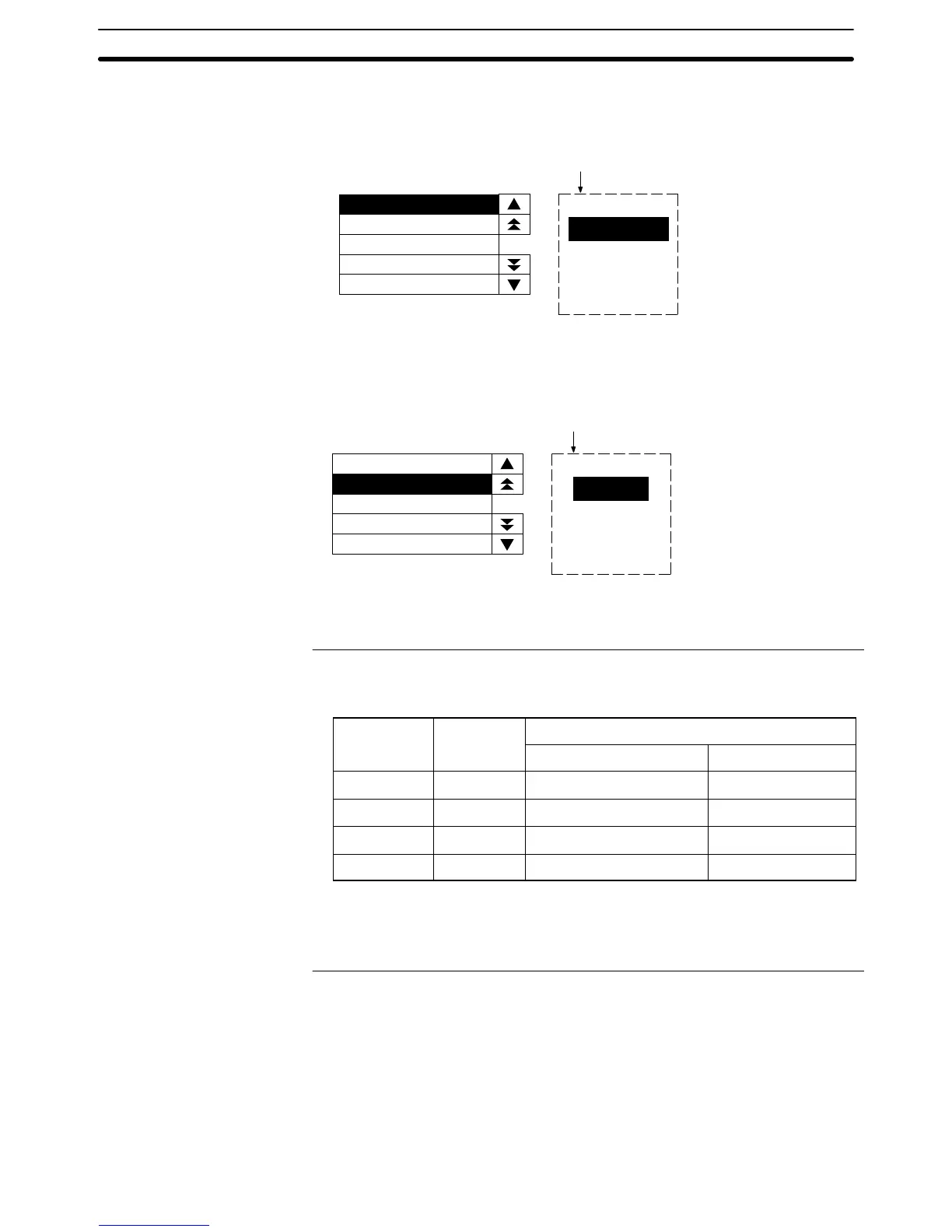

2. Each message area is a touch switch and pressing a message displays the
set image/library data. At the same time, the pressed message is displayed
in reverse video.
Image/library data corresponding to the first alarm message
PROCESS 3 STOPPED
WATER TANK OVERHEATING
FAULT
The alarm list is composed of
touch switches. When a displayed
alarm message is pressed, the
corresponding image/library data is
displayed. The pressed alarm
message is displayed in reverse
video.
Process 3 stopped by fault.
Check DM2500.
3. In case multiple messages are displayed, pressing another message will
cause the newly pressed one to be displayed in reverse video, and the cor-
responding image/library data will be displayed.
Image/library data corresponding to the second alarm message
PROCESS 3 STOPPED
WATER TANK OVERHEATING
It is also possible to set
correspondence between bit memory
table entries and screen numbers.
Here, if the second alarm message is
pressed again, the corresponding
screen will be displayed.
Check the thermostat!
URGENT
4. When a message displayed in reverse video is pressed again, the display
will switch to the screen with the set screen number.
Reference:  In the case described above, both image/library display and screen change-
over functions are set. The operation when a touch switch is pressed is deter-
mined as follows in accordance with these settings:
Ima
g
e/librar
y
Screen
Touch switch
Image/library
display
Screen
changeover
First time Second time
Not set Not set No effect No effect
Not set Set Screen changeover –
Set Not set Image/library data display No effect
Set Set Image/library data display Screen changeover
 Note that the text will be invisible when the message is pressed, if the color of
message display (color of bit memory table entry) and the background color in
reverse video of alarm list/history are the same.
The number of bit memory table entries can be set as one of the following at the
Support Tool.
• 256 (bit memory table entry numbers 0 to 255)
• 1000 (bit memory table entry numbers 0 to 999)
Since the bit memory table shares memory with the screen data, setting a large
number of bit memory table entries reduces the memory area available for
screen data.
