2-4SectionFixed Displays
92

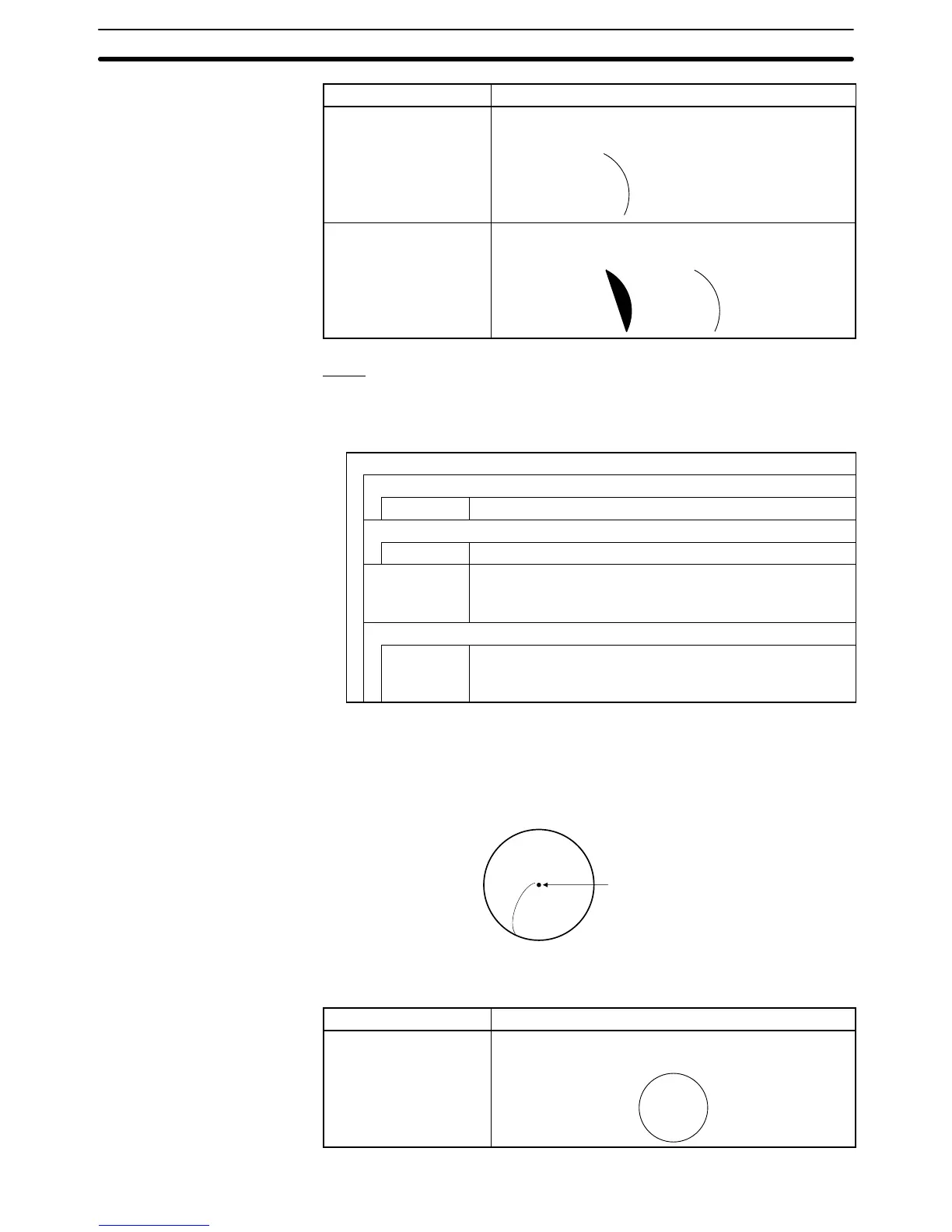

Attribute Drawing Result
Flash Repeated alternation between standard display and
no display.
⇔ No display
Inverse Flash Repeated alternation between inverse and standard
display.
⇔
Circle
The relationship between the properties of a circle and the displayed graphic are
indicated below.
Properties
General
Position
Center point Coordinates of the center of the circle
Size
Radius Radius of the circle (dot units)
Attribute Display mode for the circle (Display attribute and drawing
result, page 92).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the circle (Colors other than black and white
are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
The line style is fixed as solid line and thickness is fixed as one dot.
At the Support Tool, the center point and radius are specified as shown be-
low.
Center point
Radius
Display Attribute and Drawing Result
Attribute Drawing Result
Standard Only the line of the circle periphery is drawn in the
foreground color.
