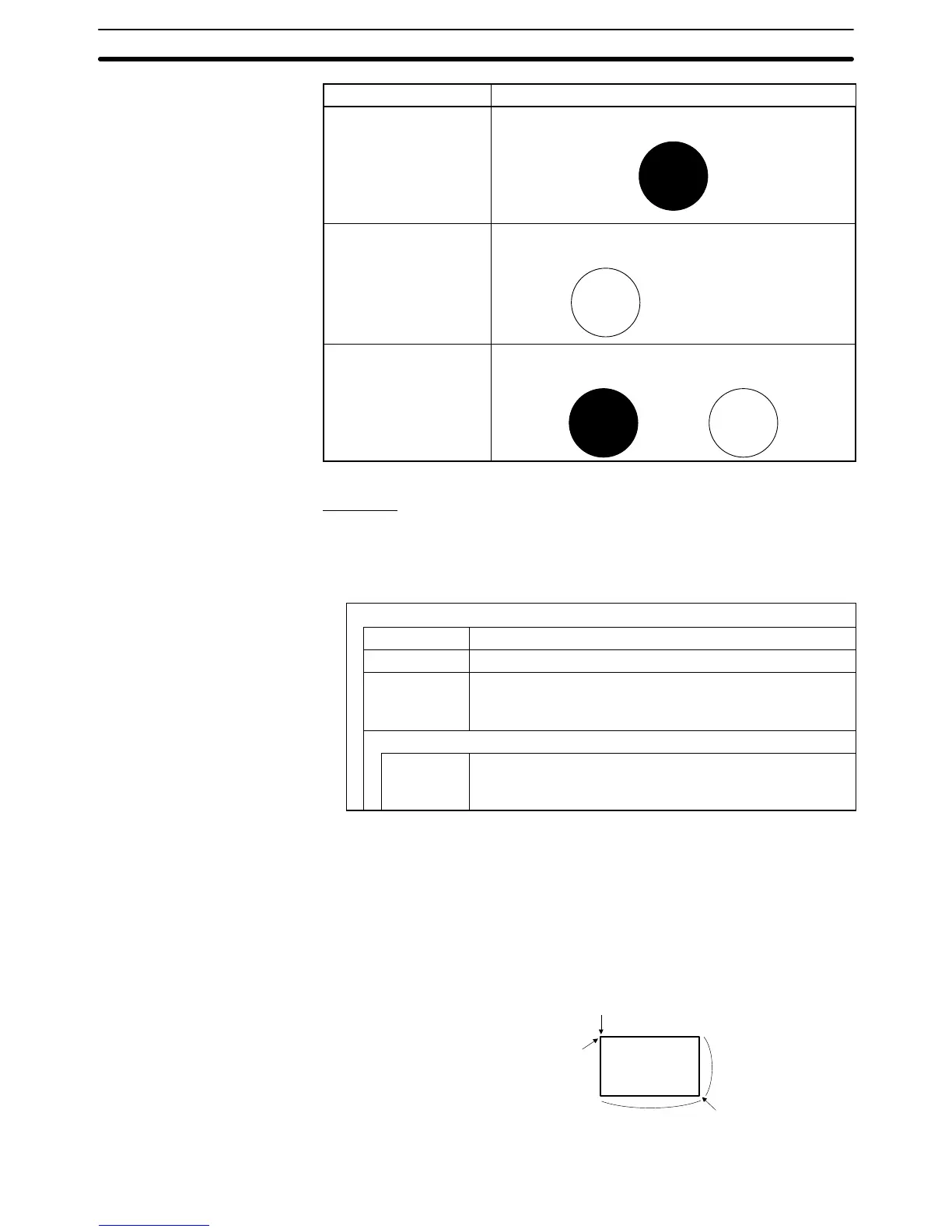

Page #109 background imageLoading...
Page #109 background image
2-4SectionFixed Displays
93
Attribute Drawing Result
Inverse The entire circle is displayed in the foreground color.
Flash Repeated alternation between standard display and
no display.
⇔ No display
Inverse Flash Repeated alternation between inverse and standard
display.
⇔
Rectangle
The relationship between the properties of a rectangle and the displayed graph-
ic are indicated below.
Properties
General
Position Coordinates of the top left vertex of the rectangle
Size Width and height of the rectangle (dot units)
Attribute Display mode for the rectangle (Display attribute and
drawing result, page 94).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the rectangle (Colors other than black and
white are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
The line style is fixed as solid line and thickness is fixed as one dot.
At the Support Tool, specify the start point and end point as shown in the figure
below (it is not necessary to draw the rectangle from top left to bottom right). By
setting the start point and end point, the position and size are automatically set.
Start point
Position (top left corner of the rectangle)
Size (Y direction)
Size (X direction)
End point
