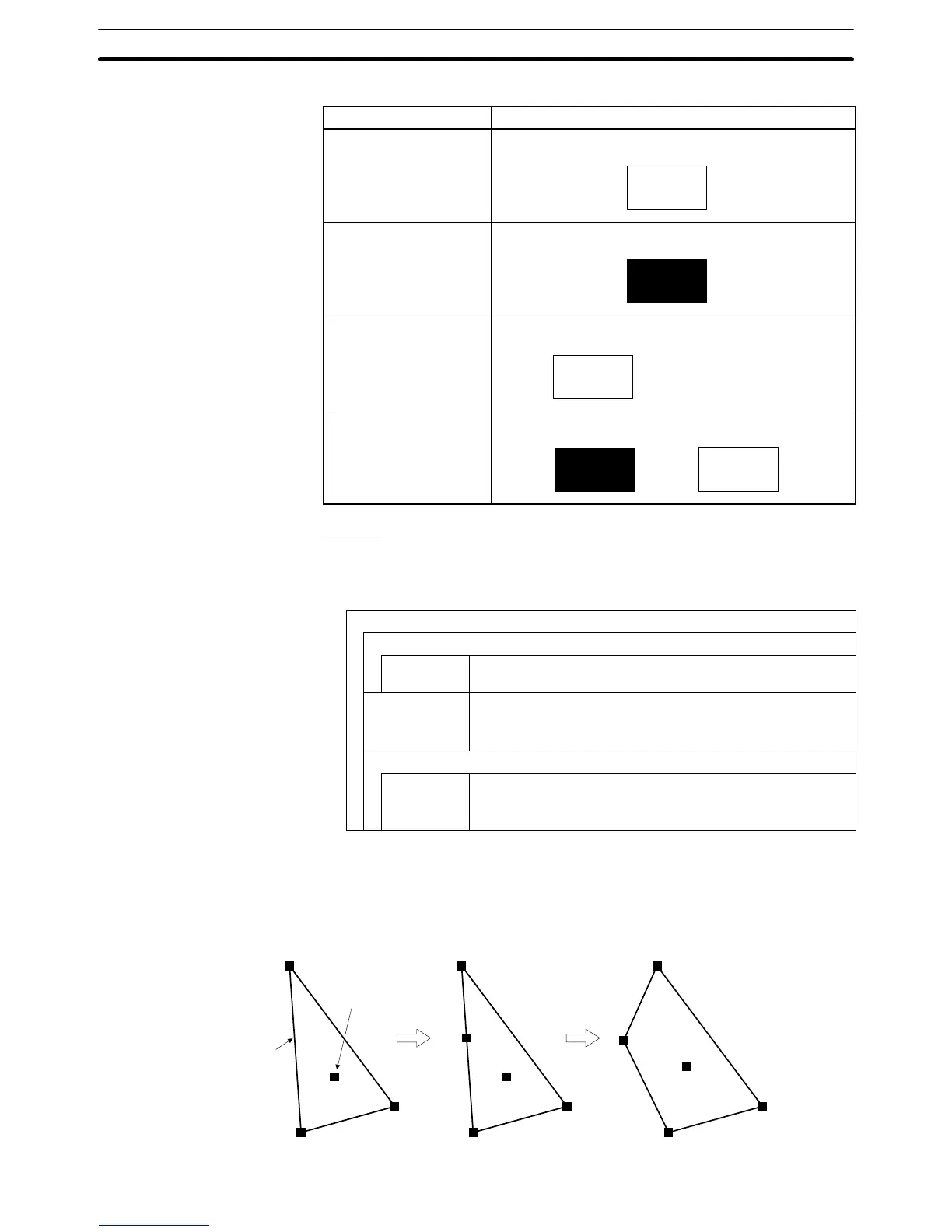

2-4SectionFixed Displays
94
Display Attribute and Drawing Result
Attribute Drawing Result
Standard Only the boundary line of the rectangle is drawn in the
foreground color.
Inverse The entire rectangle is displayed in the foreground
color.
Flash Repeated alternation between standard display and no
display.
⇔ No display
Inverse Flash Repeated alternation between inverse and standard
display.
⇔
Polygon
The relationship between the properties of a polygon and the displayed graphic
are indicated below.
Properties
General
Position
Attribute
Point
Coordinates of the point that will be the start position for
tiling in inverse display or inverse flashing display.
Attribute Display mode for the polygon (Display attribute and drawing
result, page 95).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the polygon (colors other than black and
white featured with NT31C, NT631C only)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
The line style is fixed as solid line and thickness is fixed as one dot.
At the Support Tool, using a triangle as the base, create the polygon by
changing the number and position of the vertices. The attribute point is auto-
matically set inside the polygon (its position can be changed).
Attribute point
Right click here
(to add a vertex)
