2-4SectionFixed Displays
95

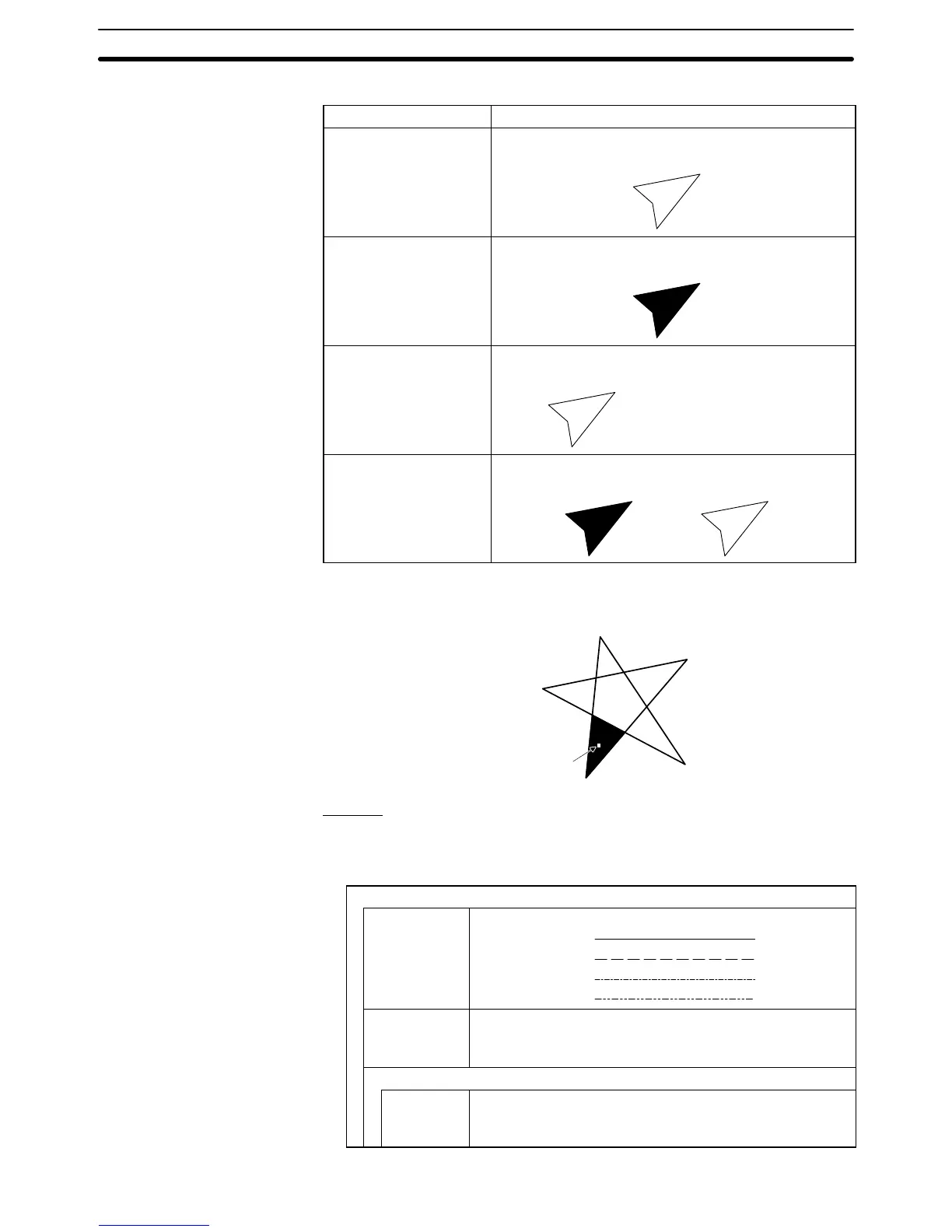

Display Attribute and Drawing Result
Attribute Drawing Result
Standard Only the boundary line of the polygon is drawn in the
foreground color.
Inverse The inside of the polygon is displayed in the foreground
color (see below).
Flash Repeated alternation between standard display and no
display.
⇔ No display
Inverse Flash Repeated alternation between inverse and standard
display (see below).
⇔
If inverse or inverse flash display is set for a polygon with multiple closed
areas, like the one shown below, only the area that contains the attribute
point is tiled.
Attribute point
Polyline
The relationship between the properties of a polyline and the displayed graphic
are indicated below.
Properties
General
Line Style Line type used for the polyline
Solid line
Broken line
1-dot chain line
2-dot chain line
Attribute Display mode for the polyline (Display attribute and drawing
result, page 96).
Standard/flash
Color
Foreground Display color of the polygon (Colors other than black and
white are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
