2-4SectionFixed Displays
96
The line thickness is fixed as one dot.

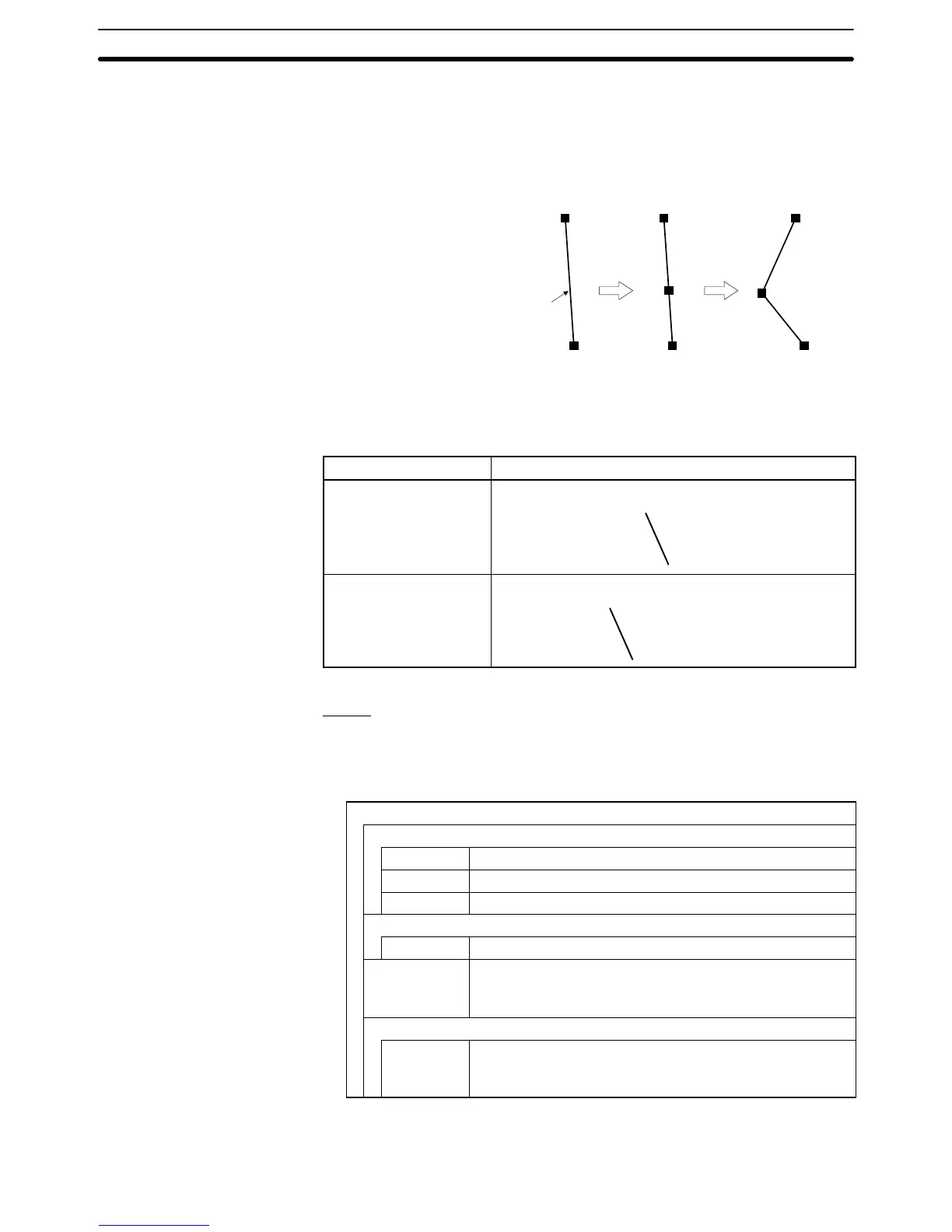

At the Support Tool, using a straight line as the base, create the polyline by
changing the number and position of the vertices.
Right click here (to add a vertex)
Display Attribute and Drawing Result
Attribute Drawing Result
Standard The polyline is displayed in the foreground color all the
time.
Flash Repeated alternation between standard display and no
display.
⇔ No display
Sector
The relationship between the properties of a sector and the displayed graphic
are indicated below.
Properties
General
Position
Center point Coordinates of the circle that includes the sector.
Start point Coordinates of the start point of the sector
End point Coordinates of the end point of the sector
Size
Radius Radius of the circle including the sector (dot units)
Attribute Display mode for the sector (Display attribute and drawing
result, page 97).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the sector (Colors other than black and
white are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
The line style is fixed as solid line and thickness is fixed as one dot.
To Next Page
