2-4SectionFixed Displays
99

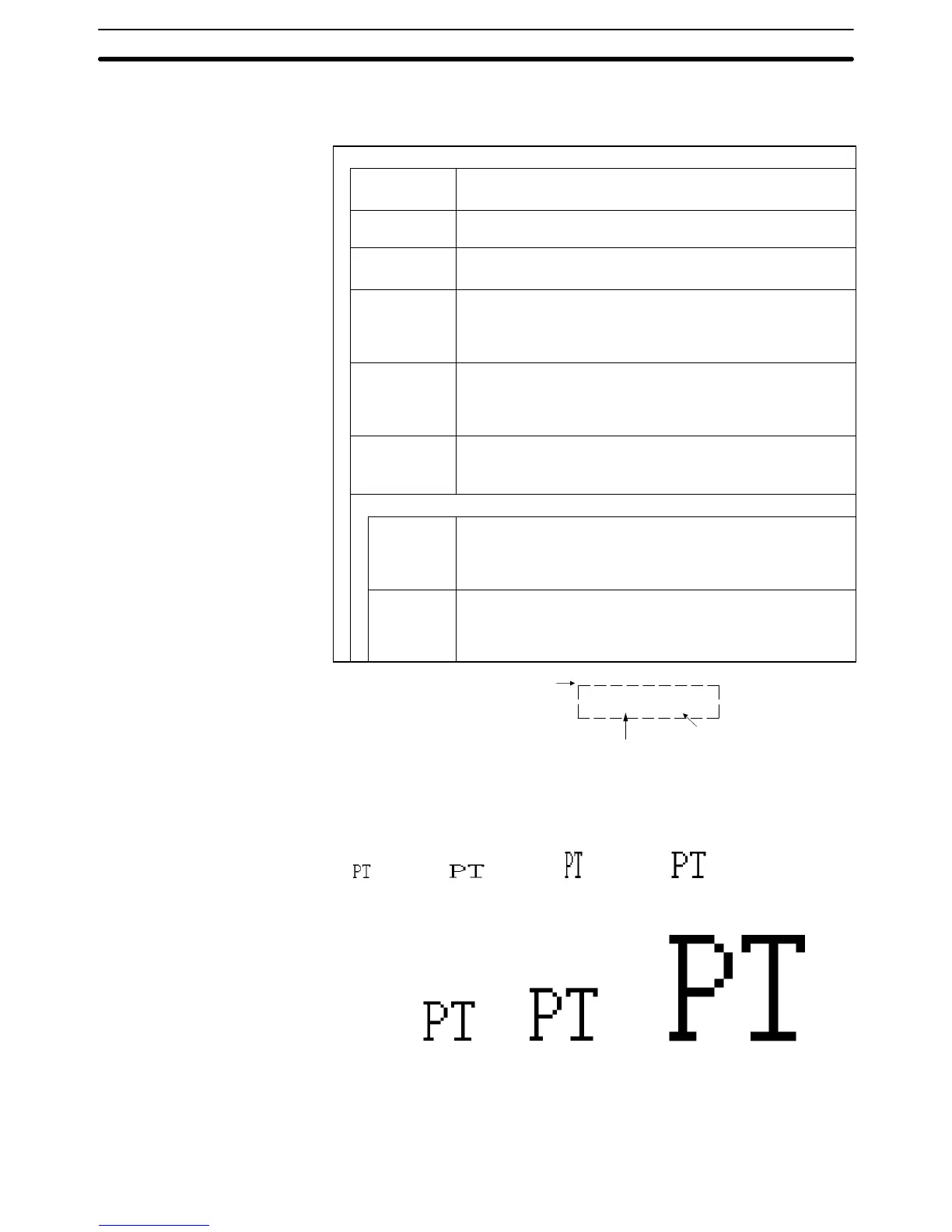

The relationship between the properties of a text display element and the dis-
played graphic are indicated below.
Properties
General
Description Displayed text
Alphanumerics and symbols, Marks
Position Coordinates of the top left corner of the rectangle that
encloses the text.
Font Type Font for alphanumerics
Standard/Half Height
Scale Scale at which the text is displayed (Enlarged display, page
99).
11 (Equal), 12 (High), 21 (Wide), 22, 33,
44, 88
Smoothing Whether or not smoothing is used for text with a scale of 22
or larger (Smoothing, page 100).
Check mark (smoothing executed)/
No check mark (smoothing not executed)
Attribute Display mode for the text (Display attribute and drawing result,
page 100).
Standard/Flash/Inverse Flash
Color
Foreground Display color of the text (Colors other than black and white are
available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
Background Background color of the text (Colors other than black and
white are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
NT31C
Position
(Top left corner of the rectangle
enclosing the text)
Foreground color
(display color)
Background color
Enlarged Display
Character strings (text and marks) can be displayed at the following scales.
11 (Equal) 21 (Wide) 12 (High) 22
334488
With ISO8859-1 font type, the characters of 2x2 or larger scale are automatically
displayed in 32 dot high-definition font. However, the marks inserted into a string
are always displayed in 16x16 dot font.
