2-4SectionFixed Displays
100
Reference: The 32 dot high-definition font is not displayed for the following models (16×16
dot font is used.)
• NT31-ST121-E
• NT31C-ST141-E
• NT631-ST211-E
• NT631C-ST141-E
• NT631C-ST151-E

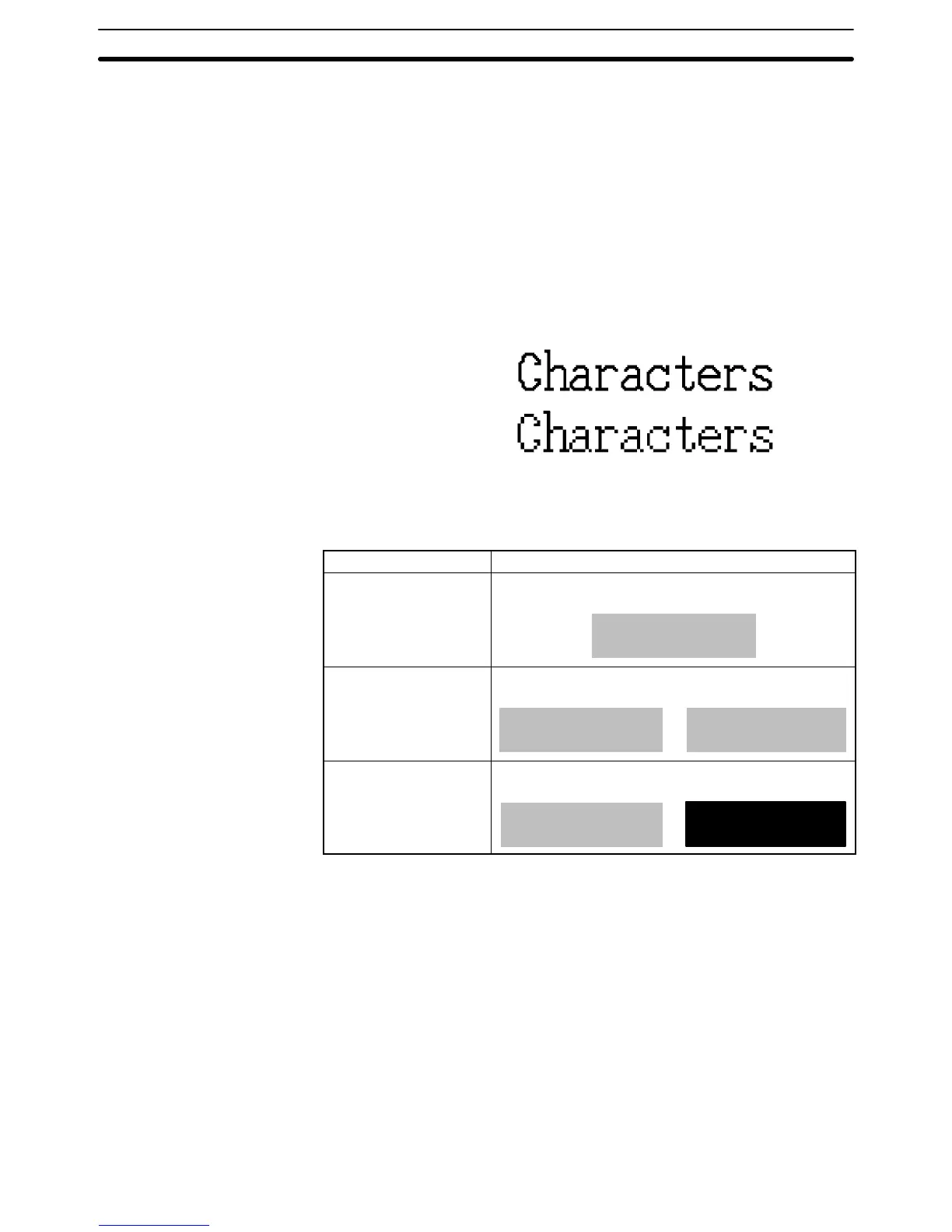

Smoothing
Characters enlarged to a scale of 22 or larger can be displayed with the outline
automatically smoothed. This function is called smoothing.
Note that smoothing cannot be used for marks.
With smoothing
Without smoothing
Reference: Smoothing is not performed for high-definition font.
Display Attribute and Drawing Result
Attribute Drawing Result
Standard The text element is displayed with the specified
foreground color and background color.
ABCDEFG
Flash Repeated alternation of the standard display and no
display.
ABCDEFG
⇔
Inverse Flash Repeated exchange of the foreground color and
background color.
ABCDEFG
⇔
ABCDEFG
Text displays have no input function.
Text displays have no output function.
Text displays have no data processing function.
Relationship with Other Elements
• It is possible to make a single library data display by combining multiple fixed
display elements. If the display attributes for any of the elements in such a dis-
play is Flash or Inverse Flash, the display flashes in accordance with these set-
tings.
• The timing of the flashing is the same for all elements.
• Circles, arcs, sectors, polylines, polygons, rectangles (page 90) and marks
(page 103) overlap each other in accordance with the order in which they were
created. However, the way in which they overlap can be changed with the Sup-
port Tool.
Input Functions
Output Functions
Processing Functions
To Next Page
