2-6SectionLamps
114

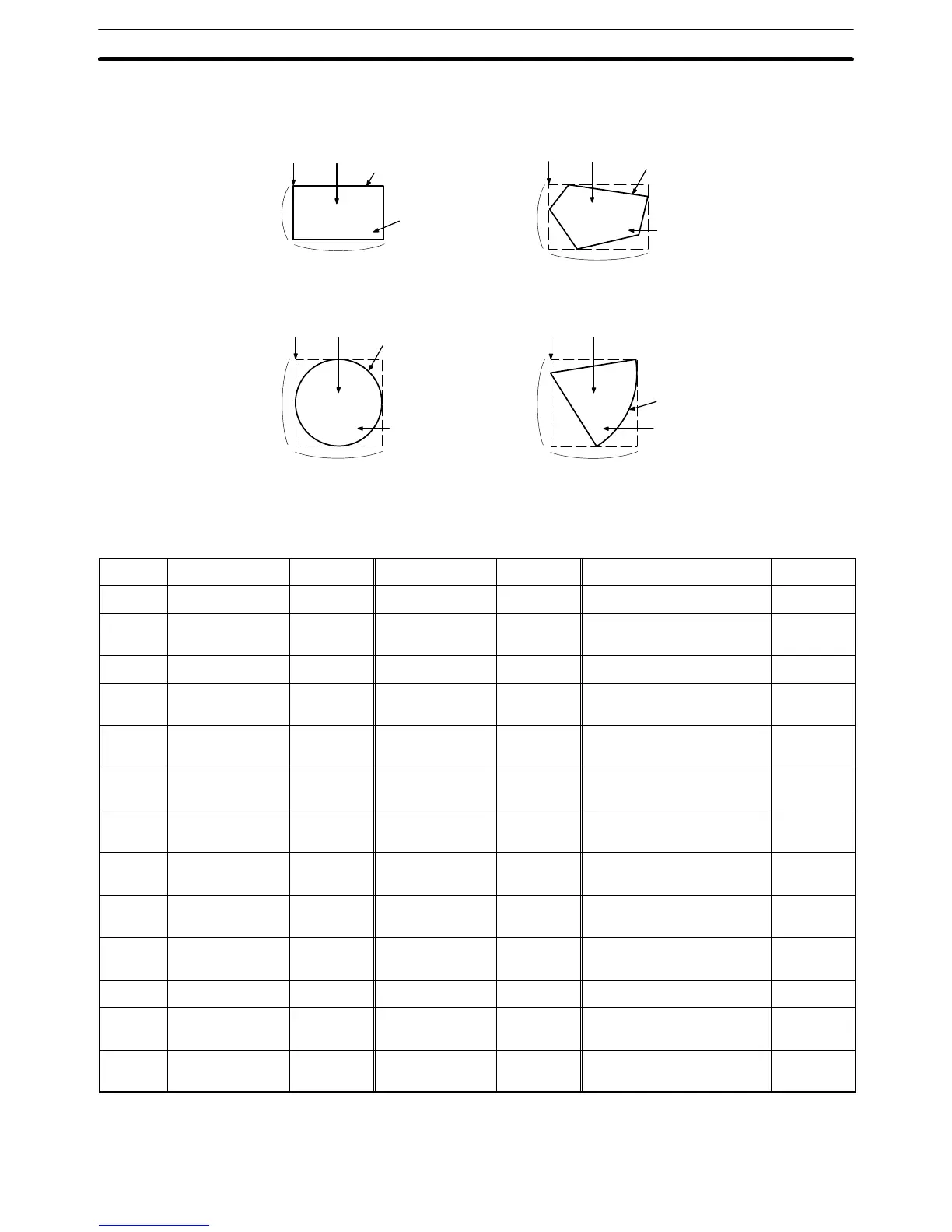

Shape of Lamps
Position Description
Frame color
Size
(Y direction)
LAMP
ON/OFF
colors
Size (X
direction)
Position Description
Frame color
Size
(Y direction)
ON/OFF
colors
Size (X
direction)
LAMP
Position Description
Frame color
Size
(Y direction)
ON/OFF
colors
Size (X
direction)
Rectangle Polygon
Circle Sector
Position Description
Frame color
Size
(Y direction)
ON/OFF
colors
Size (X
direction)
LAMP
LAMP
Allocated Bits
Bits can be allocated for lamp bits in the following host (PC) areas.
Symbol C-series PCs Allocation CV-series PCs Allocation CS/CJ-series PCs Allocation
None IR Area OK CIO Area OK CIO Area OK
H HR Area OK --- --- HR Area
Not for
Host Link
A AR Area OK Auxiliary Area No AR Area OK
L LR Area OK --- --- LR Area
*1
Not for
Host Link
T
TC Area,
Timer PVs
No
Timer Area,
Timer PVs
No
TC Area,
Timer PVs
No
TU --- --- --- ---
TC Area,
Timer Completion Flags
Not for
Host Link
C
TC Area,
Counter PVs
No
Counter Area,
Counter PVs
No
TC Area,
Counter PVs
No
CU --- --- --- ---
TC Area,
Counter Completion Flags
Not for
Host Link
W --- --- --- --- WR Area
Not for
Host Link
TK --- --- --- --- Task Flags
Not for
Host Link
D DM Area OK DM Area OK DM Area OK
E
EM Area
*2
,
current bank
OK
EM Area,
current bank
Not for
Host Link
EM Area,
current bank
Not for
Host Link
E0_ to
EC_
--- --- --- ---
EM Area,
EM banks 0 to C
Not for
Host Link
*1: LR 00000 to LR 00199 are converted to CIO 01000 to CIO 01199.
*2: The EM Area is supported only by the C200HX/HG/HE(-Z)E PCs.
