2-6SectionLamps
117

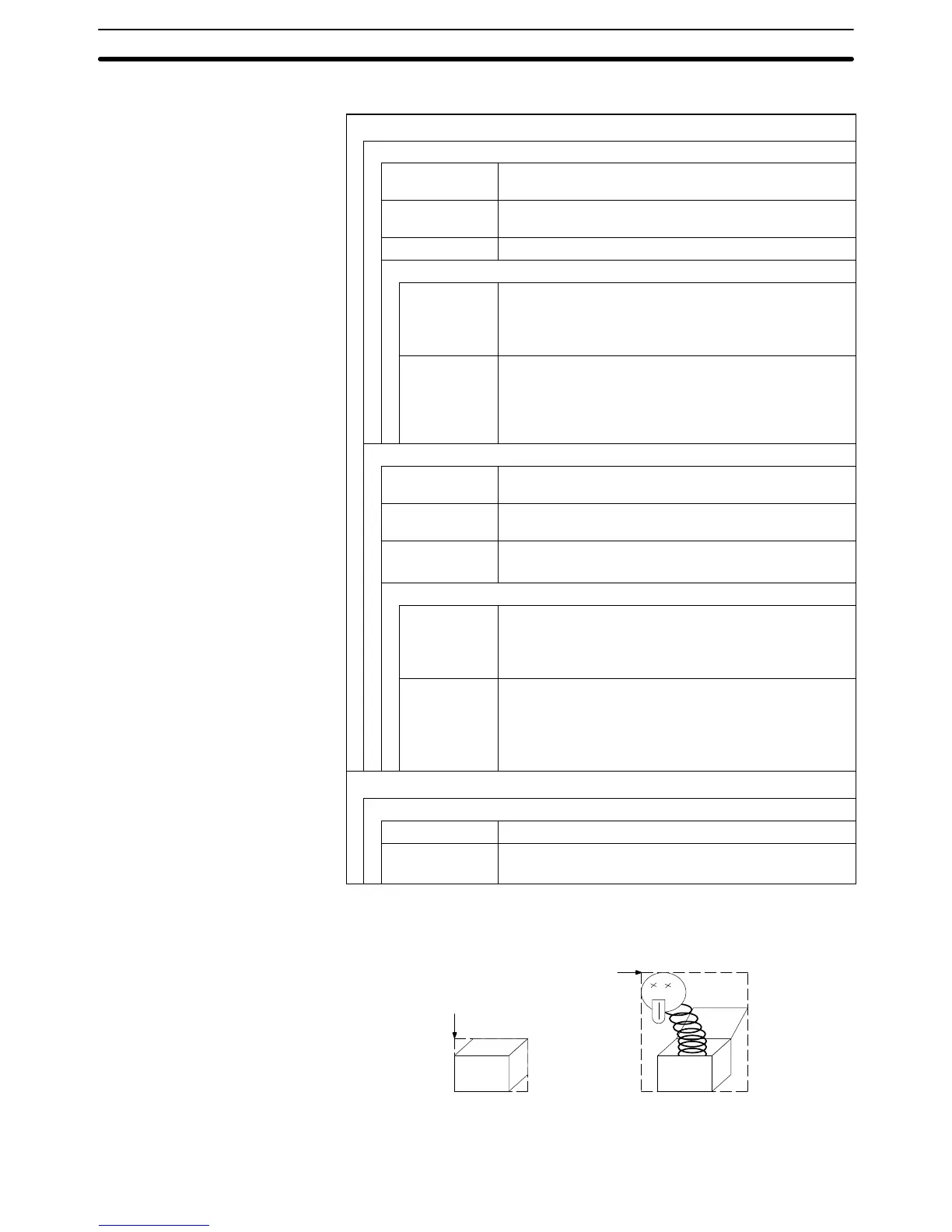

Properties
General
OFF state
X, Y Coordinates of the top left corner of the image/library
data display in the OFF state
Width, Height Width/height of image/library data displayed in the OFF
state
Code Image/library code displayed in the OFF state
Color (valid only for image data whose color mode is 2 Colors)
Foreground Foreground color of the image/library lamp in the OFF
state (Colors other than black and white are available
with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
Background Background color of the image/library lamp in the OFF
state (Colors other than black and white are available
with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
ON State
X, Y Coordinates of the top left corner of the image/library
data display when the lamp is ON
Width, Height Width/height of image/library data displayed in the ON
state
Code Code of the image/library data displayed in the ON
status
Color (valid only for image data whose color mode is 2 Colors)
Foreground Foreground color of the image/library lamp in the OFF
state (Colors other than black and white are available
with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
Background Background color of the image/library lamp in the OFF
state (Colors other than black and white are available
with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
Light Function
Address
PC Bit Address Allocated bit of the lamp (Allocated bit, page 118)
I/O Comments Comment that indicates the contents of the allocated bit
Up to 16 alphanumeric characters
ON state
Position
OFF state
Position
