2-9SectionCharacter String Display

151

Enlarged Display

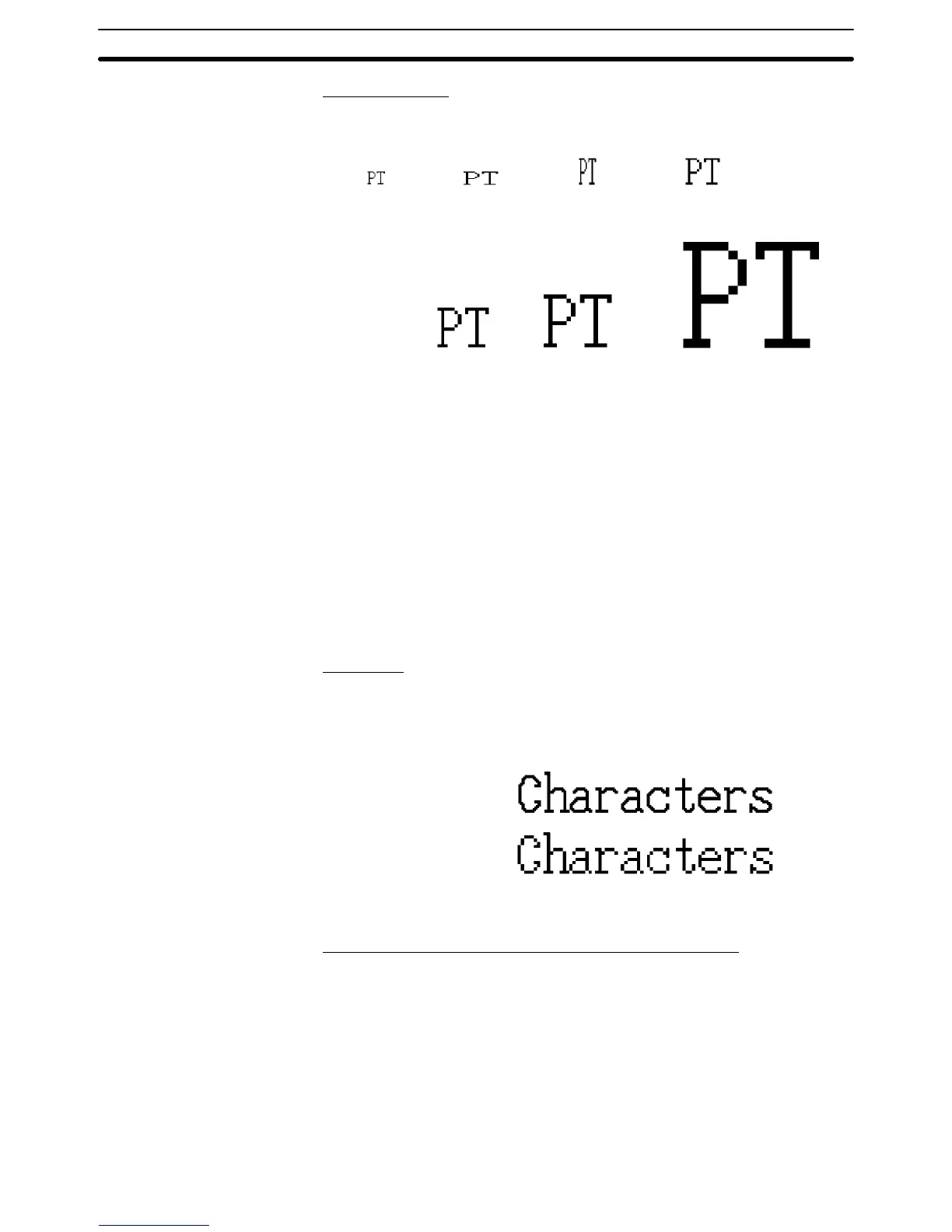

Character strings can be displayed at the following scales.

11 (Equal) 21 (Wide) 12 (High) 22

334488

With ISO 8859-1 font type, the character strings of 22 or larger scale are auto-

matically displayed in 32 dot high-definition font. However, the marks inserted

into a string are always displayed in 1616 dot font.

Reference: The 32 dot high-definition font is not displayed for the following models. (1616

dot font is used.)

• NT31-ST121-E

• NT31C-ST141-E

• NT631-ST211-E

• NT631C-ST141-E

• NT631C-ST151-E

Smoothing

Characters enlarged to a scale of 22 or greater can be displayed with the out-

line automatically smoothed. This function is called smoothing.

Note that smoothing cannot be used for marks.

With smoothing

Without smoothing

Smoothing is not performed for high-definition font.

Discrepancy Between Length and Number of Characters

If the actual number of characters of the data in the character string memory

table entry is greater than the number specified for Length, the surplus part is

ignored.

If the actual number of characters of the data in the character string memory

table entry is less than the number specified for Length, the size of the field in

which the character string is displayed is still determined by the settings for

Length and Scale. In such cases the character is displayed left-justified, with

spaces filling the superfluous part. Therefore if the contents of the numeral

memory table entry change to fewer characters, the characters of the previous

data do not remain displayed at the right side.
