2-10SectionGraphs
162

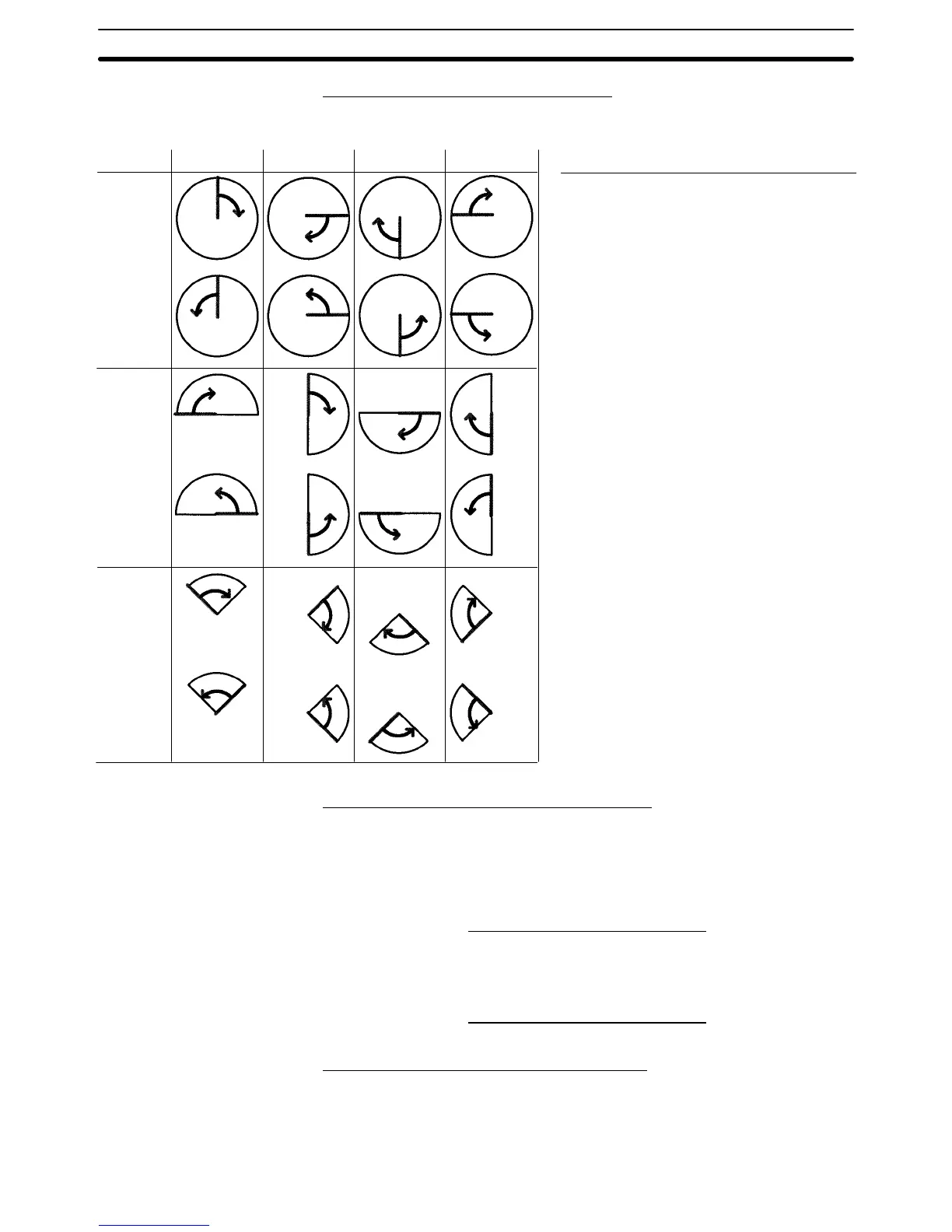

Incremental Direction of Analog Meters
The incremental directions of the analog meter depending on the setting made
for Meter Shape, Display Direction and Meter Direction are shown below.
0% position
0% position is determined by me-
ter direction. It is not influenced by
display direction.
With a display sign: 0% position comes at the
center of the meter.
(Dotted line position in the figure)
No display sign (positive value only):
Clockwise = 0% position comes at
the left side of the
meter.
Anti-clockwise= 0% position comes at
the right side of the
meter.
(Bold line position in the figure)
With a display sign: 0% position comes at the
center of the meter
(Dotted line position in the figure)
No display sign (positive value only):
Clockwise= 0% position comes at
the left side of the meter.
Anti-clockwise= 0% position comes at
the right side of the
meter.
(Bold line position in the figure)
Semi-Circle
Quarter
Circle
Clockwise
Anti-clockwise
Clockwise
Clockwise
Clockwise
Anti-clockwise
Anti-clockwise
Anti-clockwise
Clockwise
Clock-
wise
Clockwise
Clock-
wise
Anti-clockwise
Anti-
clockwise
Anti-clockwise
Anti-
clockwise
Clockwise
Clockwise
Clockwise
Clockwise
Anti-clockwise
Anti-
clockwise
Anti-clockwise
Anti-
clockwise
Method for Calculating the Percentage Value
The percentage is calculated as follows, depending on whether it is larger or
smaller than the 0% value.
When displayed numeric value  0%, and when no check mark is set for Display
Sign:
Method for Displaying the Percentage Value
The percentage value will be displayed as a signed value regardless of the ana-
log meter’s Display Sign setting. The percentage value is always displayed as
5-digit value: the sign character, 3-digit numerical value, and % character. (The
sign character is a blank space for positive values.)
