2-12SectionInputting Numeric Values
203

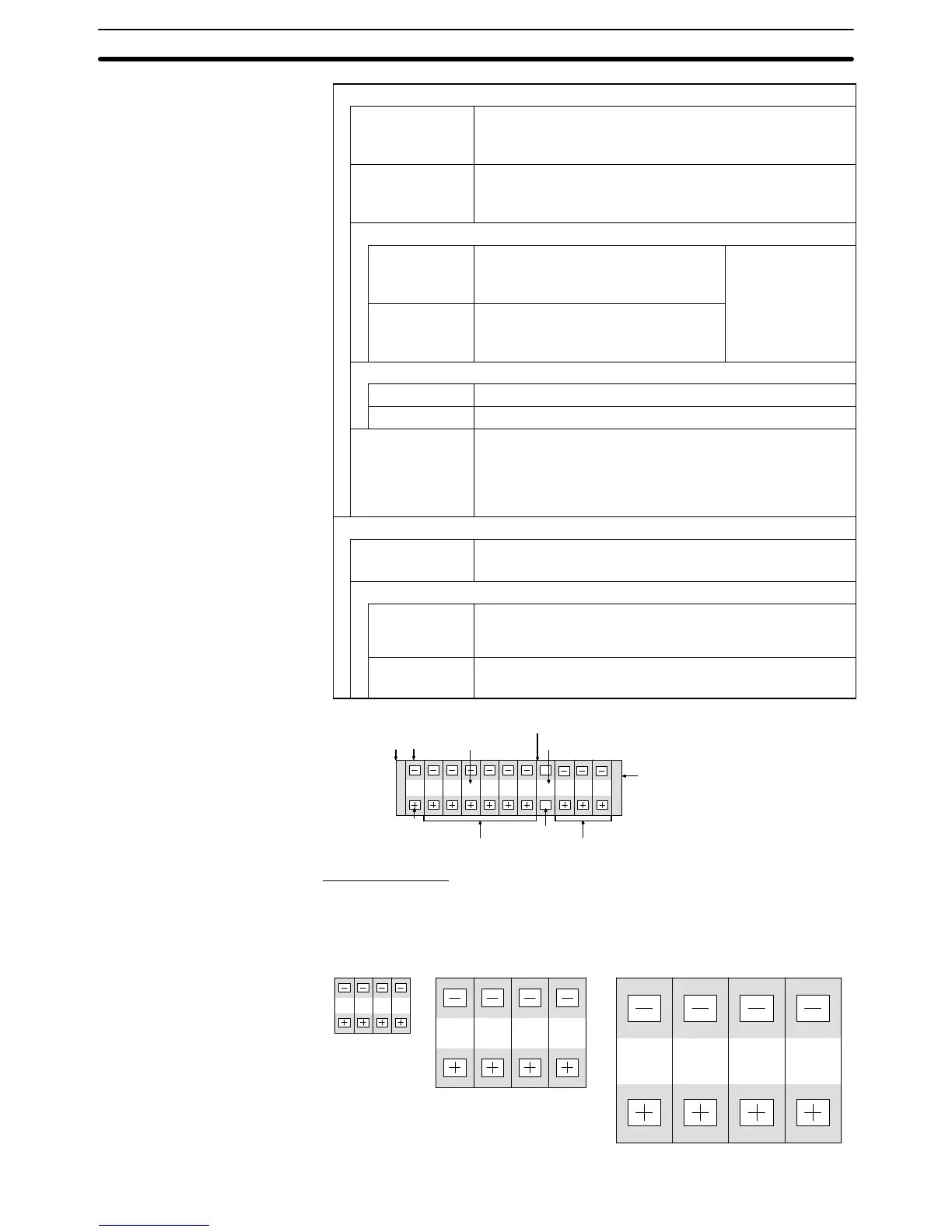

Settings
Table Entry Number of the numeral memory table entry into which the
input numeric value is written
Range: 0 to 1999
Display Type Display format for the numeric value (Input numeric value
and stored data, page 204)
Decimal/Hexadecimal
Format (Number of digits displayed, page 204)
Integer Number of digits in the integer part of
the numeric value
Range: 1 to 10
Maximum
combined total of
Decimal Number of digits in the decimal
fraction of the numeric value
Range: 0 to 9
combined total o
f
10 digits
Limit (Upper/lower (max./min.) limit check, page 207)
Maximum Upper limit for numeric values that can be input
Minimum Lower limit for numeric values that can be input
Display Sign Whether or not negative numbers are indicated (setting
ineffective if Hexadecimal has been set for Display Format)
(Input numeric value and stored data, page 204)
Check mark (negative numbers indicated)/
No check mark (negative numbers not indicated)
Interlock Function
Interlock
Presence/absence of interlock control of thumbwheel input
Check mark (interlock)/No check mark (don’t interlock)
PC address settings
PC bit address Allocated interlock bit used to enable/disable operation of
the thumbwheel input (See Interlock Bit Allocation on page
208.)
I/O comments Comment that explains the allocated bit.
Up to 16 characters.
000000 . 000
Color of the input field (foreground/background color of tiling pattern)
Position Frame color Character color Background color of numerals
End plate
Sign display
Number of digits in integer part
Decimal point
Number of digits in decimal fraction
Enlarged Display
Thumbwheel type numeral setting input fields can be displayed in the following
three sizes. The sizes of the touch switches in each case are 11, 22, and
33, taking the minimum unit (2020 dots) as the reference.
1234
1 2 3 4
Small Medium Large
1234
