 UM Safety Mats

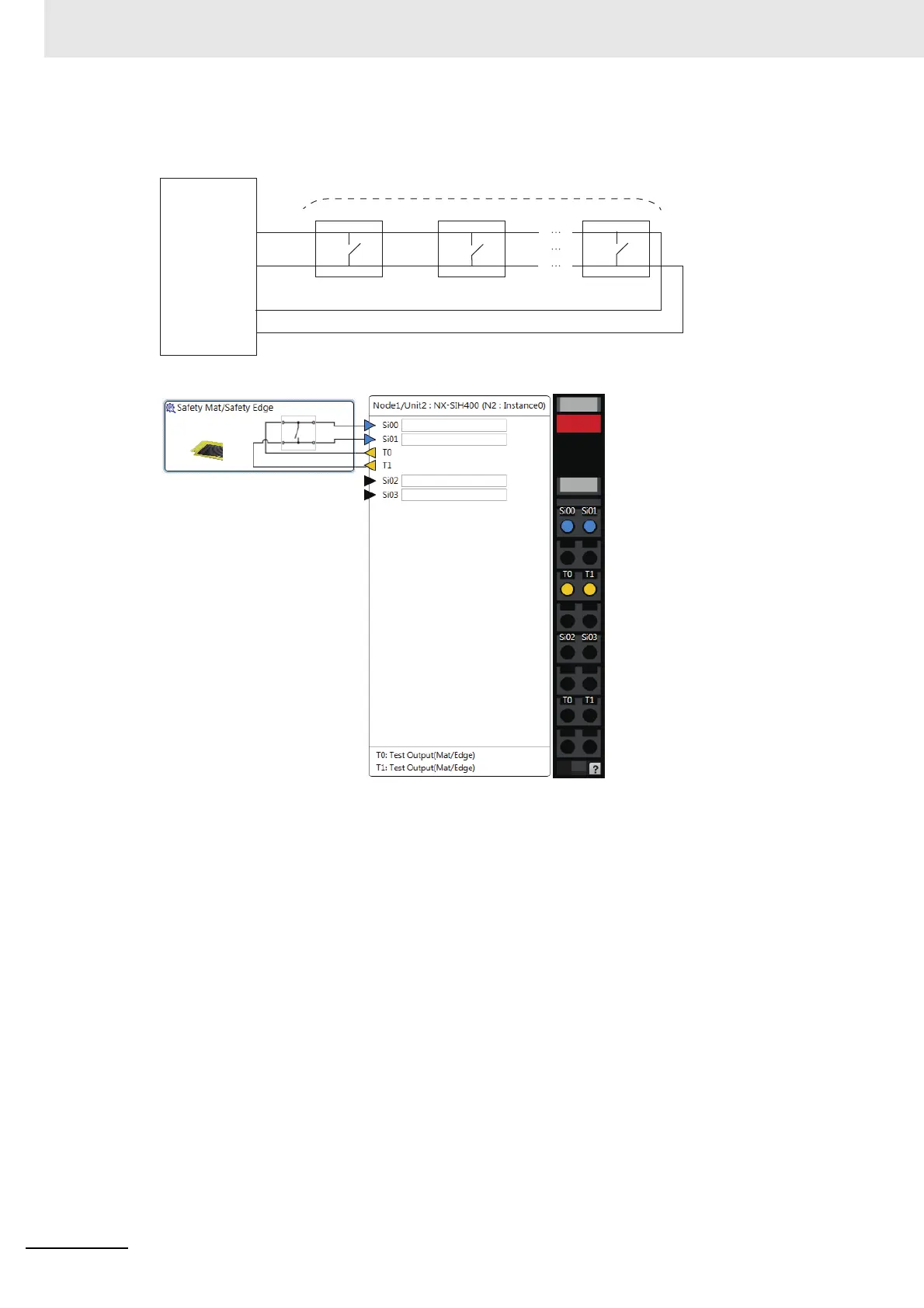

OMRON UM Safety Mats are connected as shown in the following figure.
Example of Sysmac Studio Settings
Refer to Precaution for Conformance to ISO 13856-1:2013 on page 4-3 for a precaution on confor-
mance to ISO 13856-1:2013.
NX-SIH400
T0
T1
Si0
Si1
L
n + 1
L
1
L
2
L
n
L
3
n = 12 max.
White
Black
Blue
Brown
Safety Mats
White
Black
Blue
Brown
