5 - 21
5 Installation and Wiring
NX-series Safety Control Unit User’s Manual (Z930)
5-3 Wiring the Terminals
5
5-3-1 Wiring to the Screwless Clamping Terminal Block
Press the lock lever on the terminal block and pull out the top of the terminal block to remove it.
Mount the terminal block hook on the guide at the bottom of the NX Unit, lift up the terminal block, and
press in on the top of the terminal block until you hear it engage.
The terminal block will click into place on the Unit.
After you mount the terminal block, make sure that it is locked to the Unit.
Mount a Terminal Block that is applicable to the model of each Unit.
Refer to Terminal Blocks on page 3-7 for the applicable Terminal Blocks.

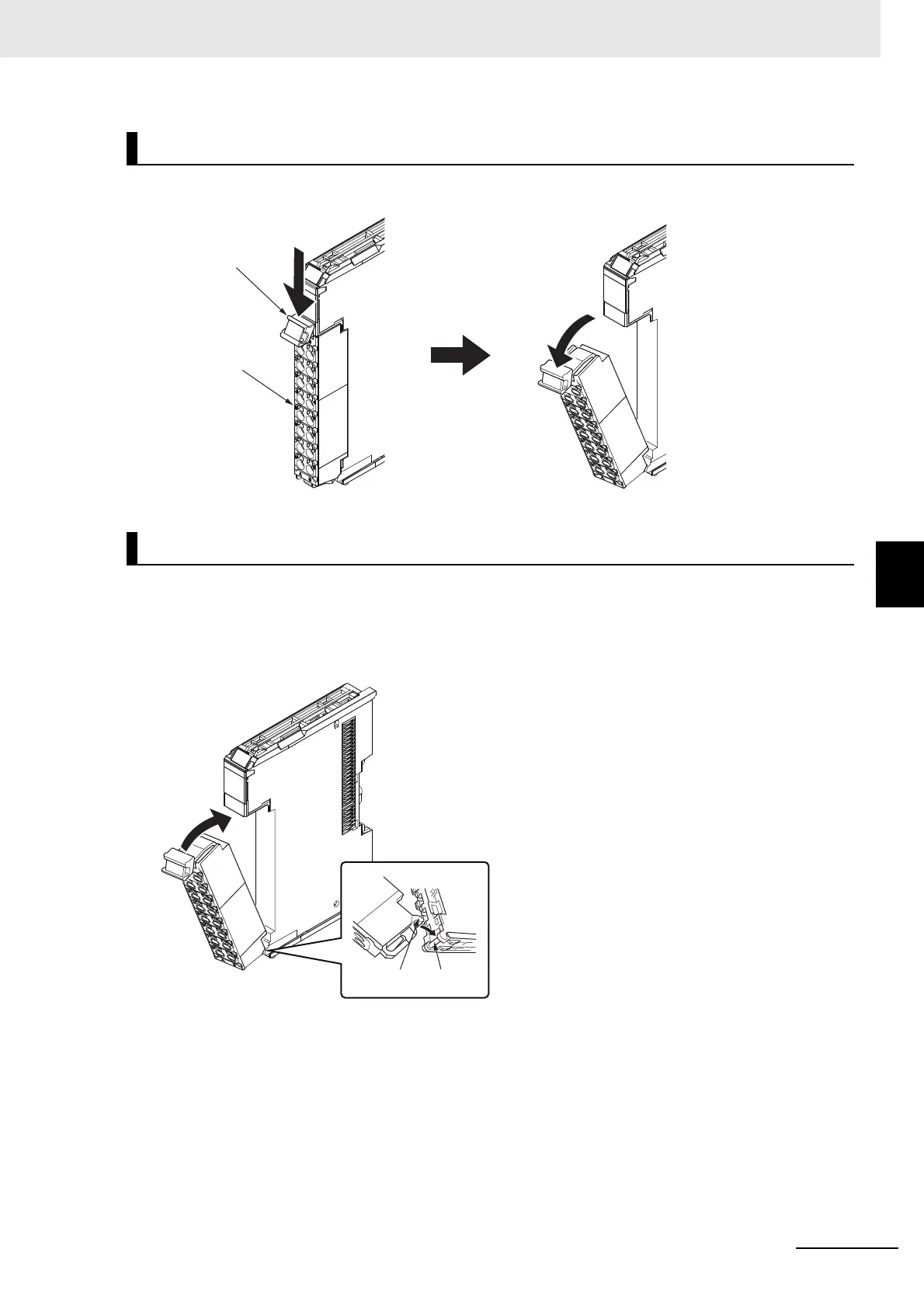

Removing a Terminal Block
Attaching a Terminal Block
To Next Page
