6 - 7
6 System Configuration and Setup
NX-series Safety Control Unit User’s Manual (Z930)
6-3 Controller Configuration and Setup of the Safety Control Units
6

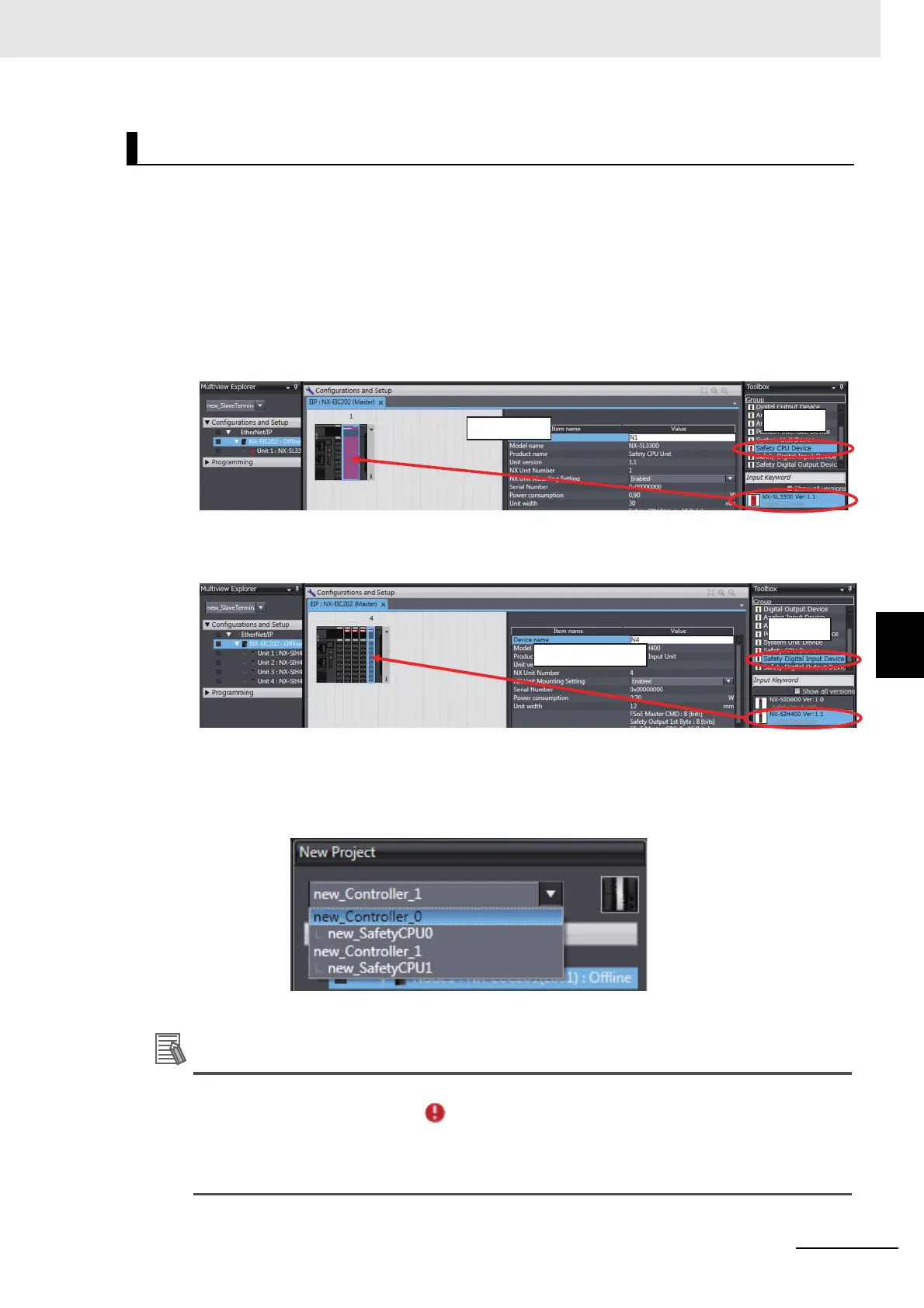

6-3-1 Procedures for Creating the Controller Configuration for Safety Control
Use the following procedure to create the Controller configuration for the Safety Control Units on Ether-
Net/IP Slave Terminals.
1 Start the Sysmac Studio.
2 Select the EtherNet/IP Coupler Unit on the Slave Terminal and create a project file.
3 Double-click NX-EIC202 under EtherNet/IP − Configurations and Setup in the Multiview
Explorer. The Slave Terminal Tab Page is displayed.
4 Select Safety CPU Device from the Groups List in the Toolbox. The Safety CPU Unit is dis-
played below it. Drag the Unit to the Slave Terminal and add it to the configuration.
5 Select Safety Digital Input Device or Safety Digital Output Device from the Groups List in the
Toolbox. The Safety I/O Unit is displayed below it. Drag the Unit to the Slave Terminal and place
it in the configuration.
This completes the creation of the EtherNet/IP Slave Terminal configuration for Safety Control Units.
After the Safety CPU Unit is added, it will be displayed in the Controller Selection Box in the Multiview
Explorer. The Safety CPU Unit that was added is displayed below the Coupler Unit.
Additional Information
• You can place only one Safety CPU Unit on an EtherNet/IP Slave Terminal. If you add more
than one Safety CPU Unit, the icon is displayed under all of the Safety CPU Units and it
will cause an error during the build process.
• Refer to the NX-series EtherNet/IP Coupler Unit User’s Manual (Cat. No. W536) for the num-
ber of NX Units that can be mounted to a Slave Terminal.
EtherNet/IP Slave Terminal Configuration and Setting Procedures
Drag & Drop
Click
Click
Drag & Drop
