7 - 45
7 Programming
NX-series Safety Control Unit User’s Manual (Z930)
7-5 Programming Operations
7
7-5-4 FBD Programming

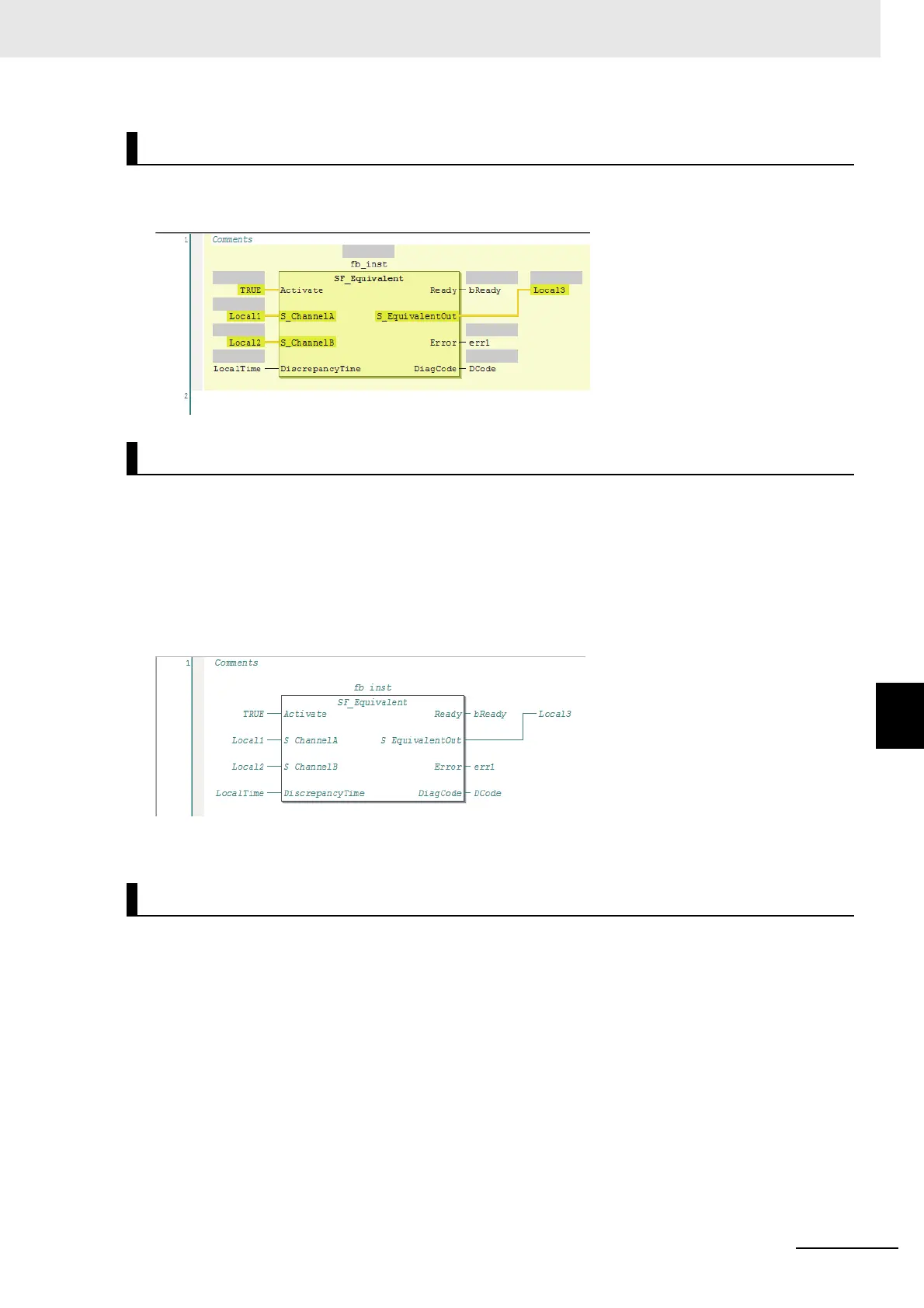

Use the following procedure to edit the comment for an FBD network.
Method: Select the comment portion of the FBD network and edit it.
The following operation allows you to comment out an FBD network and then restore it. When a net-
work is commented out, it is no longer executed.
Method: Right-click the FBD network and select Toggle Network Comment State from the menu.
*1. You cannot select more than one network. If you select more than one network, the comment status of last
network that you select will change.
Networks that are commented out are displayed in blue italic letters as shown below.
If you select a commented network, the network is changed to an uncommented network.
Use one of the following procedures to insert a FUN or FB.
Method 1: Drag a FUN or FB from the Toolbox to an I/O terminal on the FUN or FB in the FBD editor, or
to a new network where the words Start here are displayed.
Method 2: Right-click the FBD network, select Insert Function Block from the menu, and specify a
FUN or FB.
Editing Comments for FBD Networks
Commenting Out FBD Networks and Restoring Them
Inserting a FUN or FB
