Use the following procedure to change the output terminals of a FUN or FB.

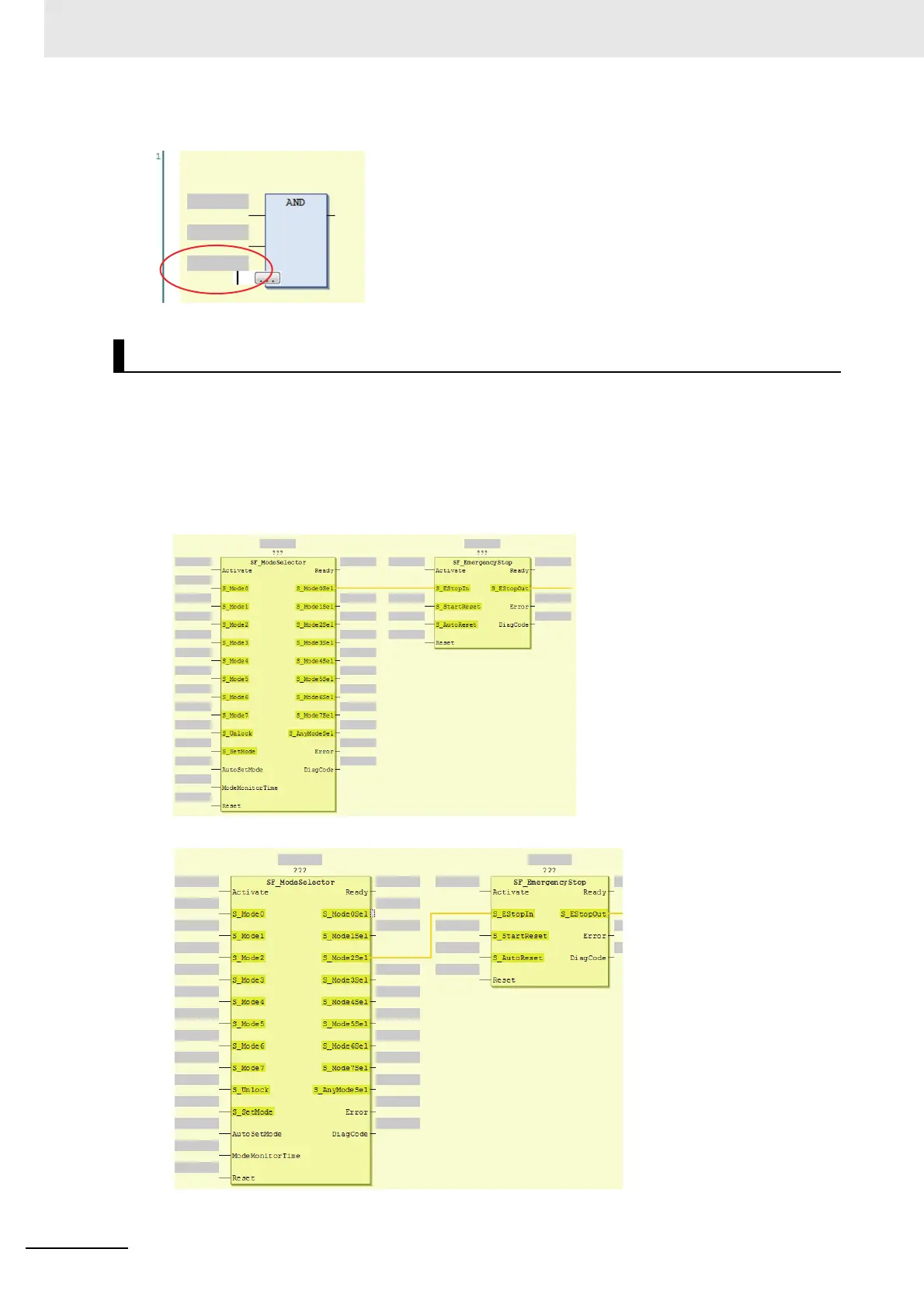

Method: Right-click an output terminal on a FUN or FB on the FBD network and select Set Output
Connection from the menu.
The selected output terminal is connected to the input terminal of the next FUN or FB.
• Before the Output Terminal Is Changed
• When S_Mode2Sel Was Selected and Set Output Connection was Executed
• After the Input Parameter Is Added
Changing the Output Terminals of a FUN or FB
