7 - 79
7 Programming
NX-series Safety Control Unit Use
r
’
s Manual (Z930)
7-7 Offline Debugging
7
7-7-6 Simple Automatic T
est
Y

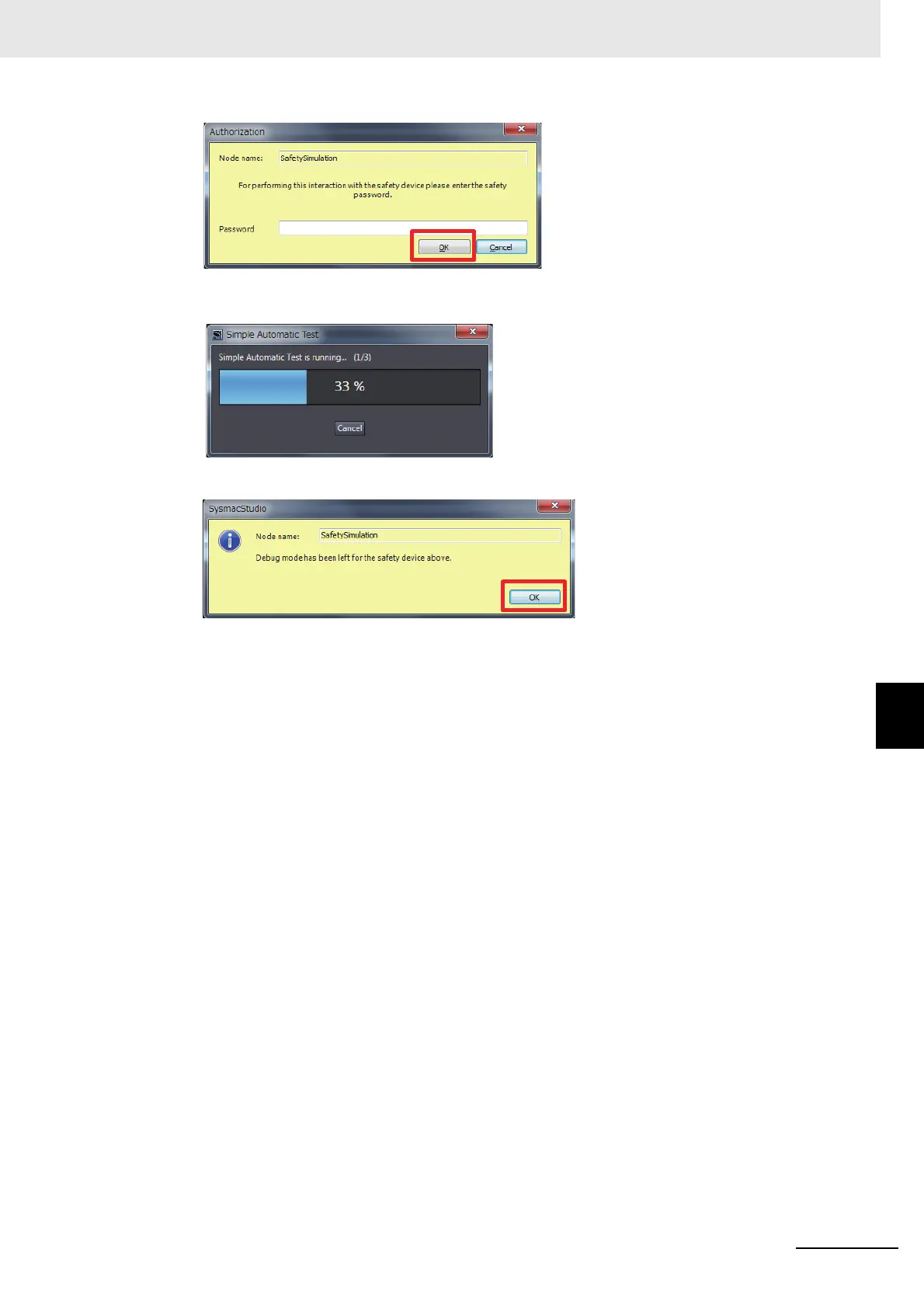

ou can check the p
rogress of t
he
Simple Automatic T
est in t
he
following dialog box.
The Simulator stops when the
test is completed. Click
the
OK
Button.
