Omron OMNUC G5 R88D-KT50F User Manual

3-30
3-1 Servo Drive Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

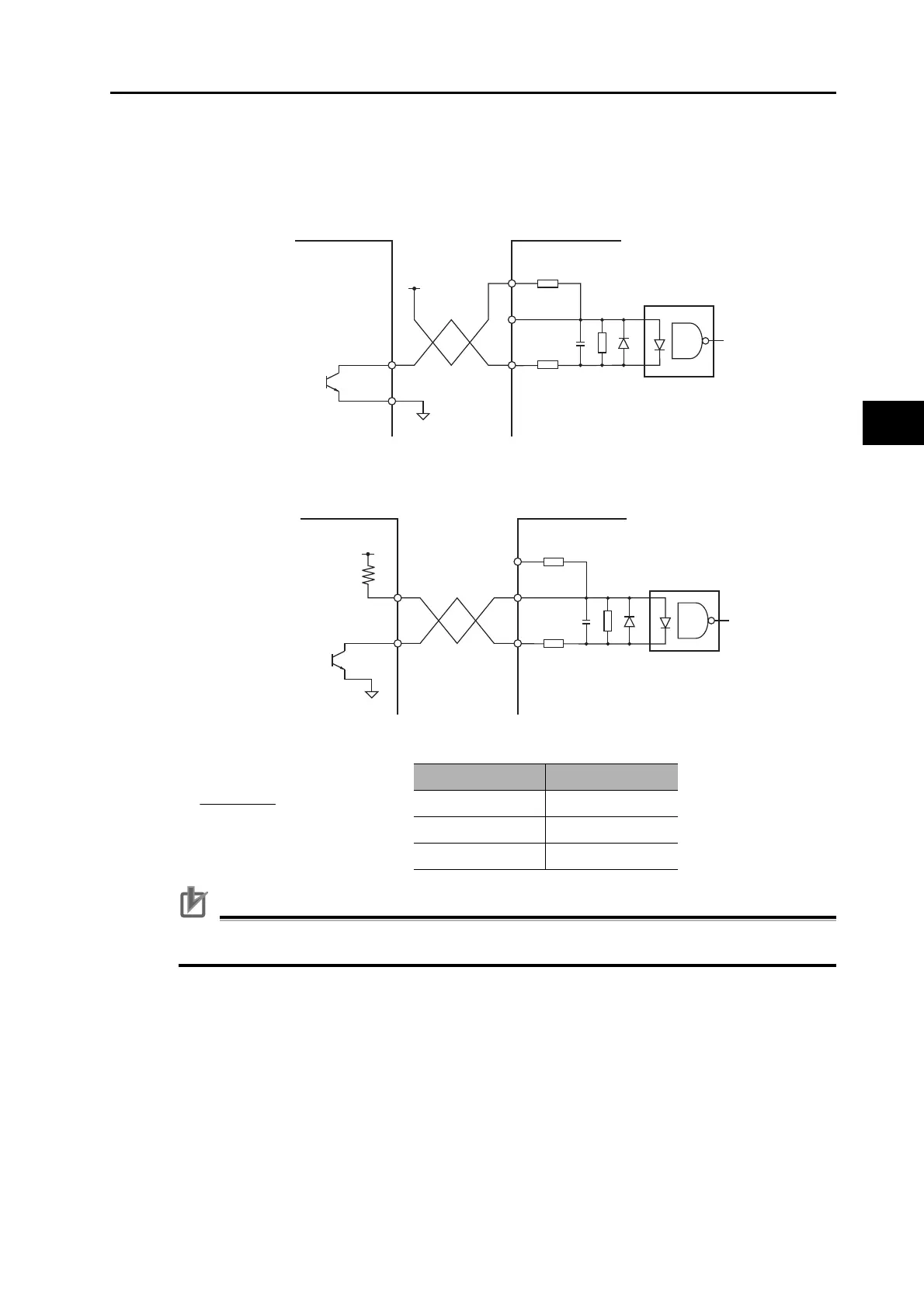

Open Collector Input
 External 24-V power supply without a Current Limit Resistor (200 kpps maximum) (+24 VCW: 1,
−CW: 4, +24 VCCW: 2, −CCW: 6)
 External control power supply (200 kpps maximum) (+CW: 3, −CW: 4, +CCW: 5, −CCW: 6)
Select a Current Limit Resistor (R) appropriate for Vcc.
Precautions for Correct Use
 The open collector wiring should not exceed 3 m in length.
≈10mA
(7 to 15 mA)
VCC R
24 V 2 kΩ (1/2 W)
12 V 1 kΩ (1/2 W)
5 V 0 Ω (short)
Vcc 24 V
1000 pF
Controller Drive
−
+
220 Ω
2.2 kΩ
2.2 kΩ
1,2
4,6
Vcc
R
1000 pF
Controller Drive
−
+
220 Ω
2.2 kΩ
2.2 kΩ
3,5
4,6
Vcc − 1.5
R + 220
