Omron OMNUC G5 R88D-KT50F User Manual

3-57
3-1 Servo Drive Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

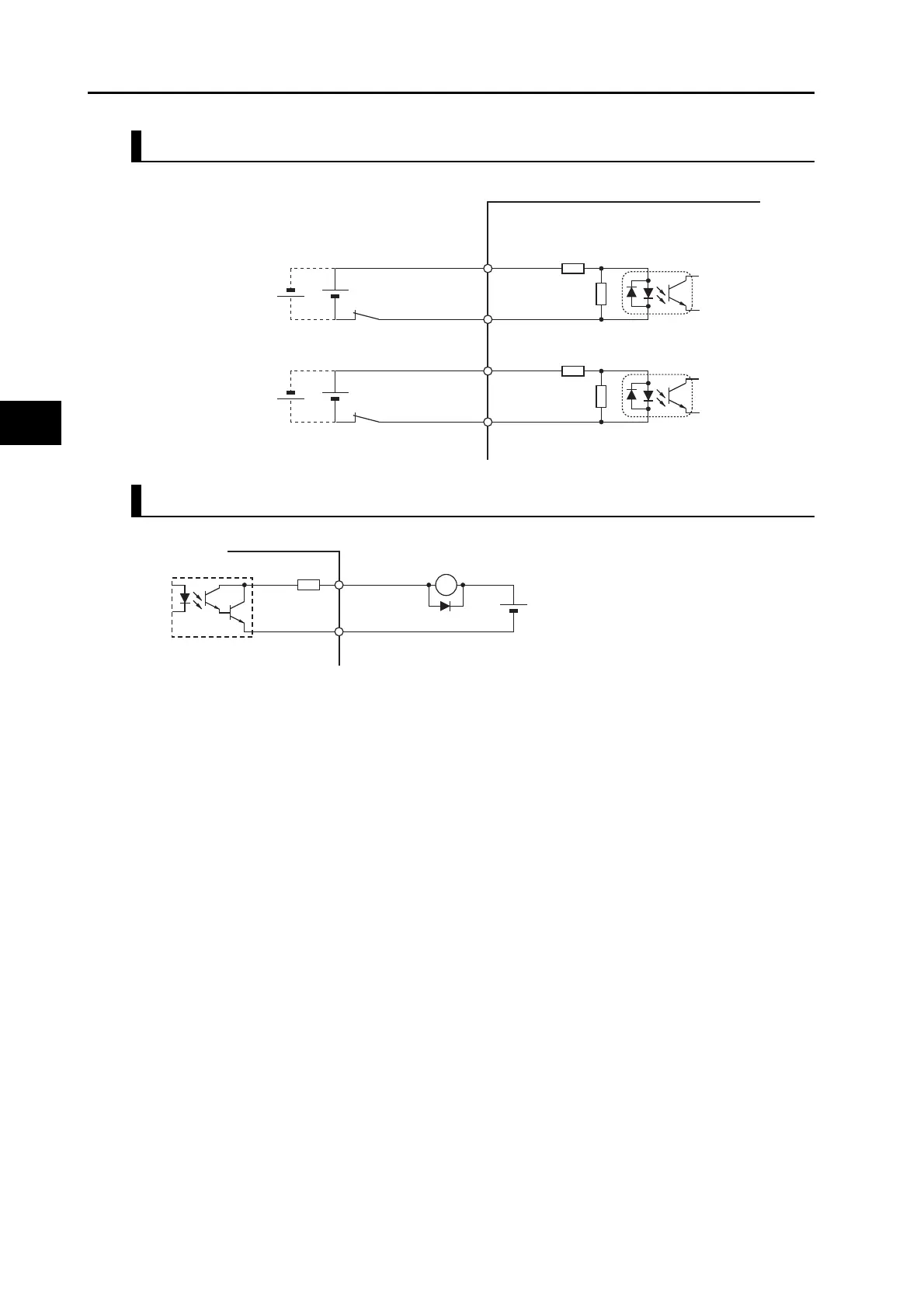

Safety Input Circuit
EDM Output Circuit
Servo Drive
External power supply
12 VDC ± 5% to
24 VDC ± 5%
Signal level
ON level: 10 V or more
OFF level: 3 V or less
4.7 kΩ
1 kΩ
SF1+ 4
SF1− 3
SF2+ 6
SF2− 5
Photocoupler
input
4.7 kΩ
1 kΩ
Photocoupler
input
External power supply
12 to 24 VDC
Maximum service voltage: 30 VDC or less
Maximum output current: 50 mA max.
Leakage current: 0.1 mA max.
Residual voltage: 1.7 V max.
7 +EDM
8 −EDM
Di
Di: Surge voltage prevention diode
(Use a high-speed diode.)
10 Ω
Servo Drive
X
