3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications
Terminal Block Cables (XW2Z-@J-B24)

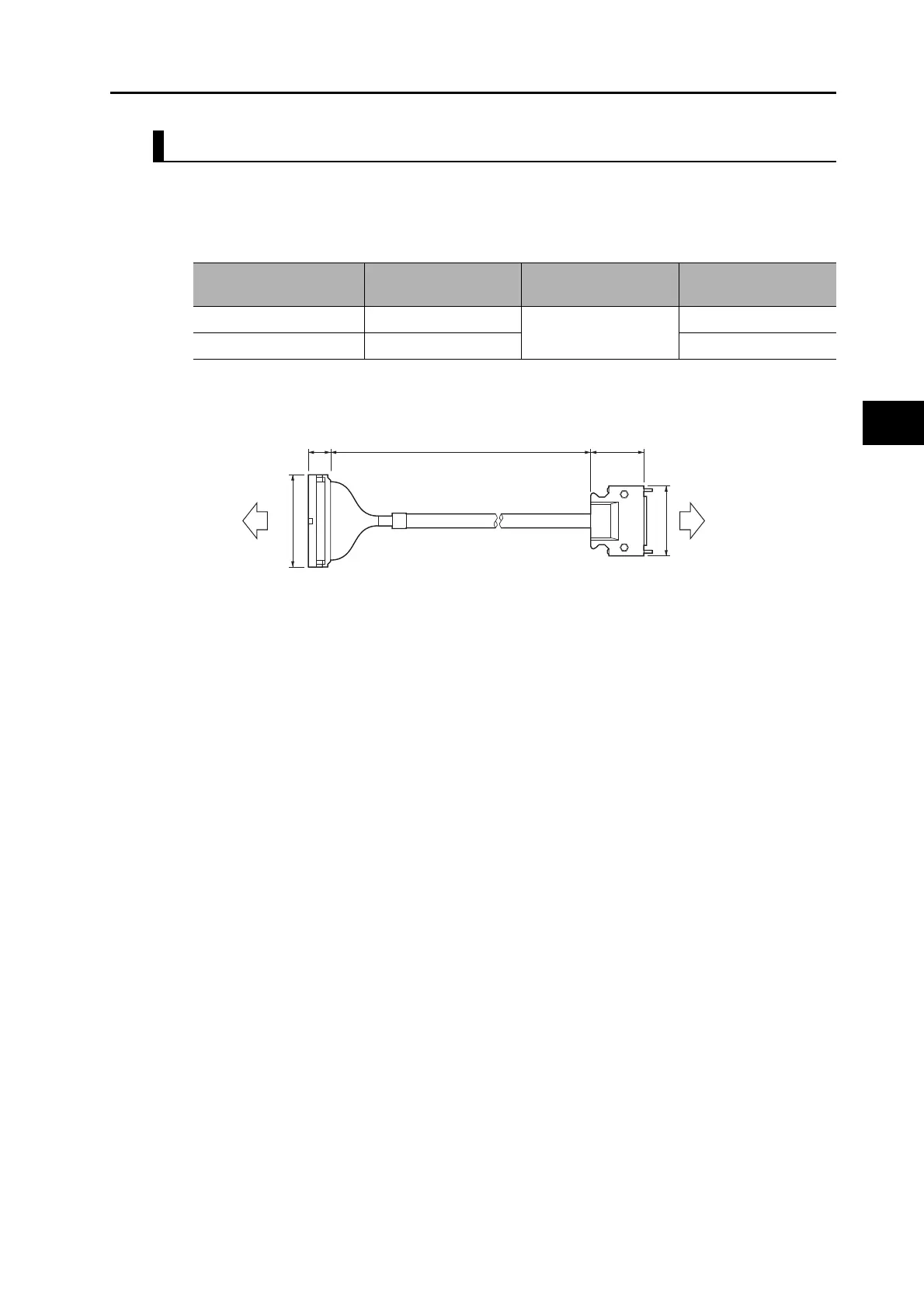

This is a cable to connect the Servo drive I/O signals (CN1 connector) to a terminal block for
general-purpose. All servo drive I/O signals are wired.
Cable types
Connection configuration and external dimensions
Model Length (L)
Outer diameter of
sheath
Weight
XW2Z-100J-B24 1 m
11.2 dia.
Approx. 0.2 kg
XW2Z-200J-B24 2 m Approx. 0.4 kg
39L16.1
Connector-terminal block side
XW2B-50G4
XW2B-50G5
XW2D-50G6
68.1
t = 18t = 6.1
Servo Drive side
(CN1 connector)
R88D-K@
52.4
To Next Page
